Power Seat Control Module

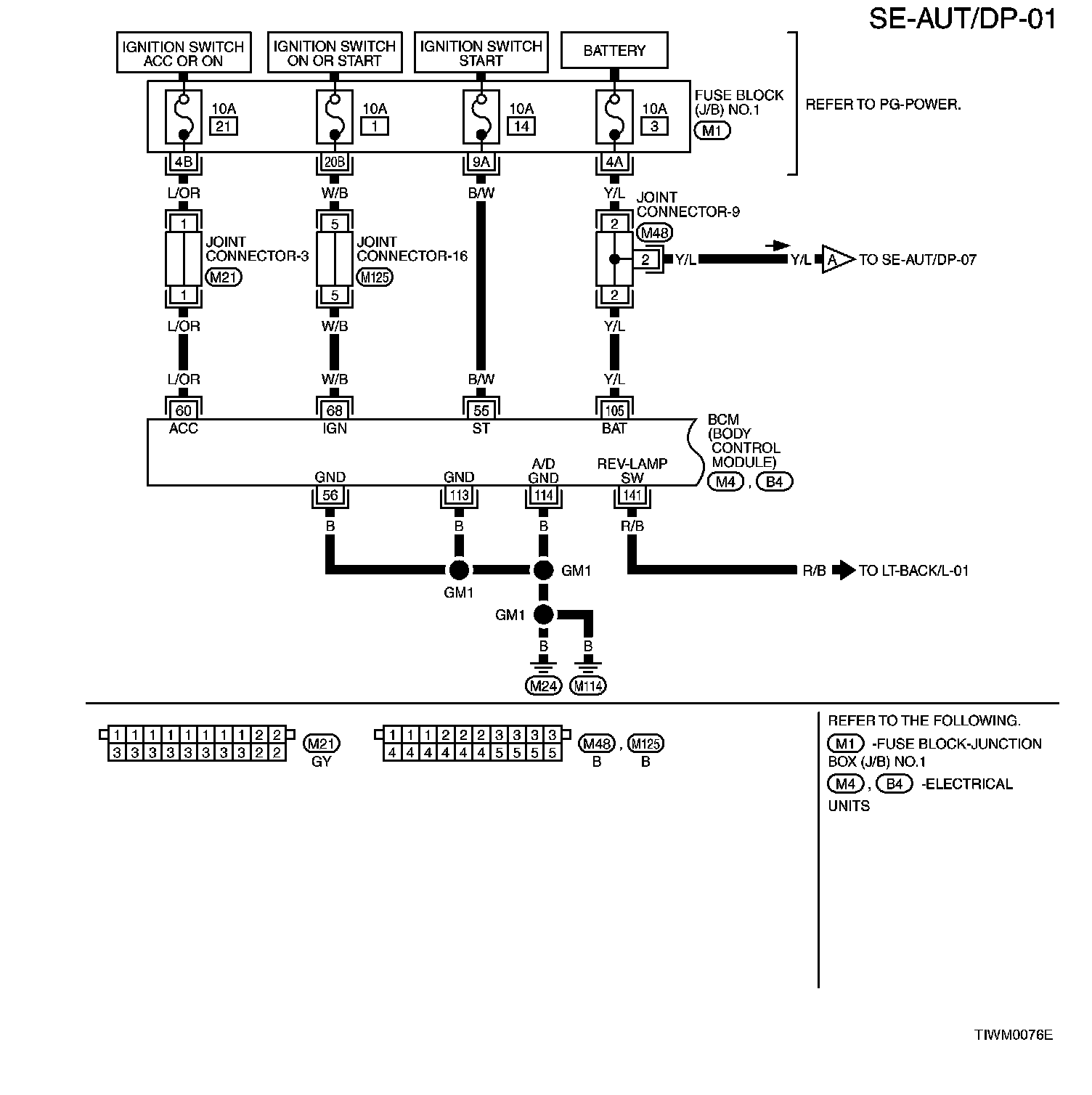

SE-AUT/DP-01:

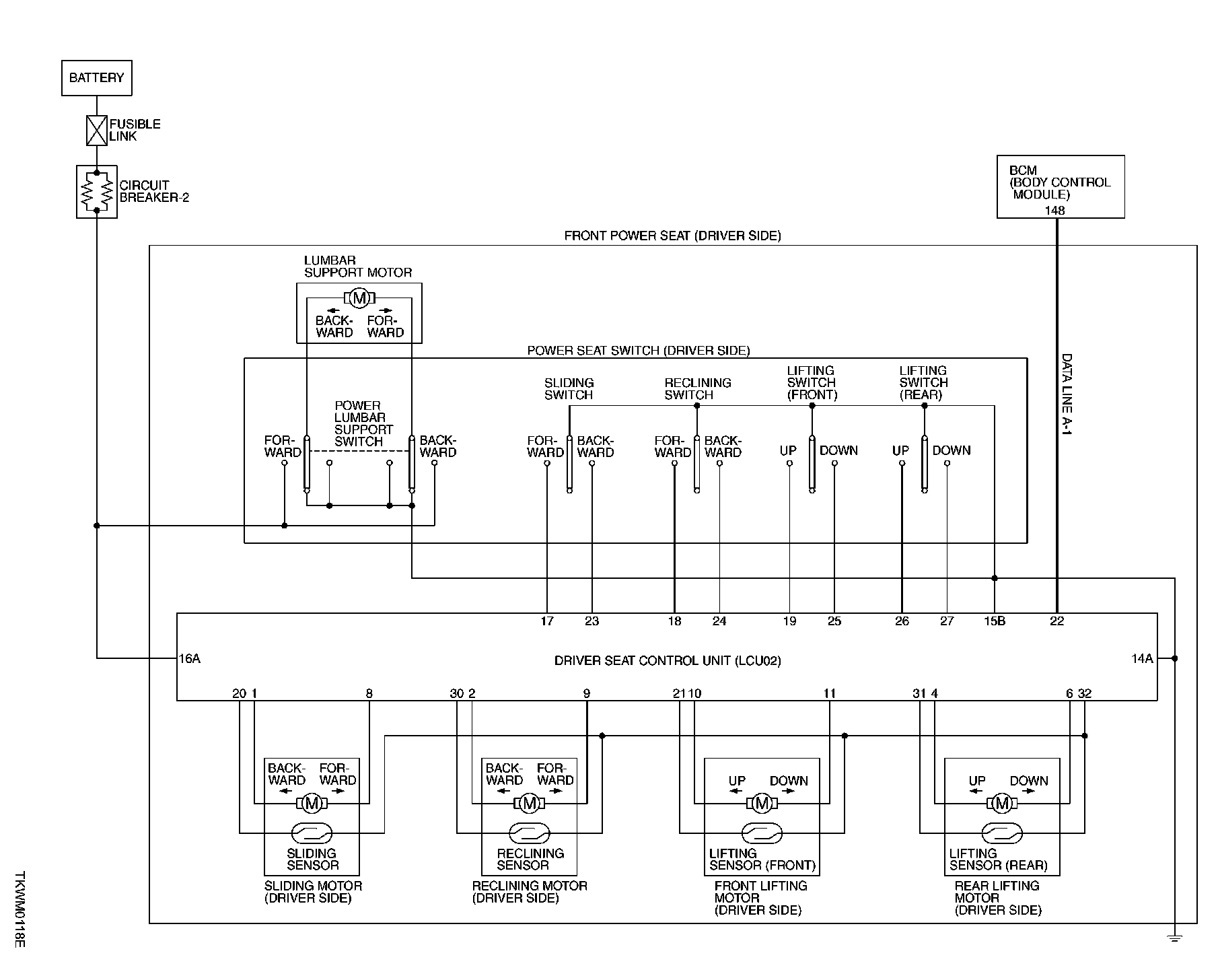

SE-AUT/Driver's Seat Control Unit Schematic LCU02:

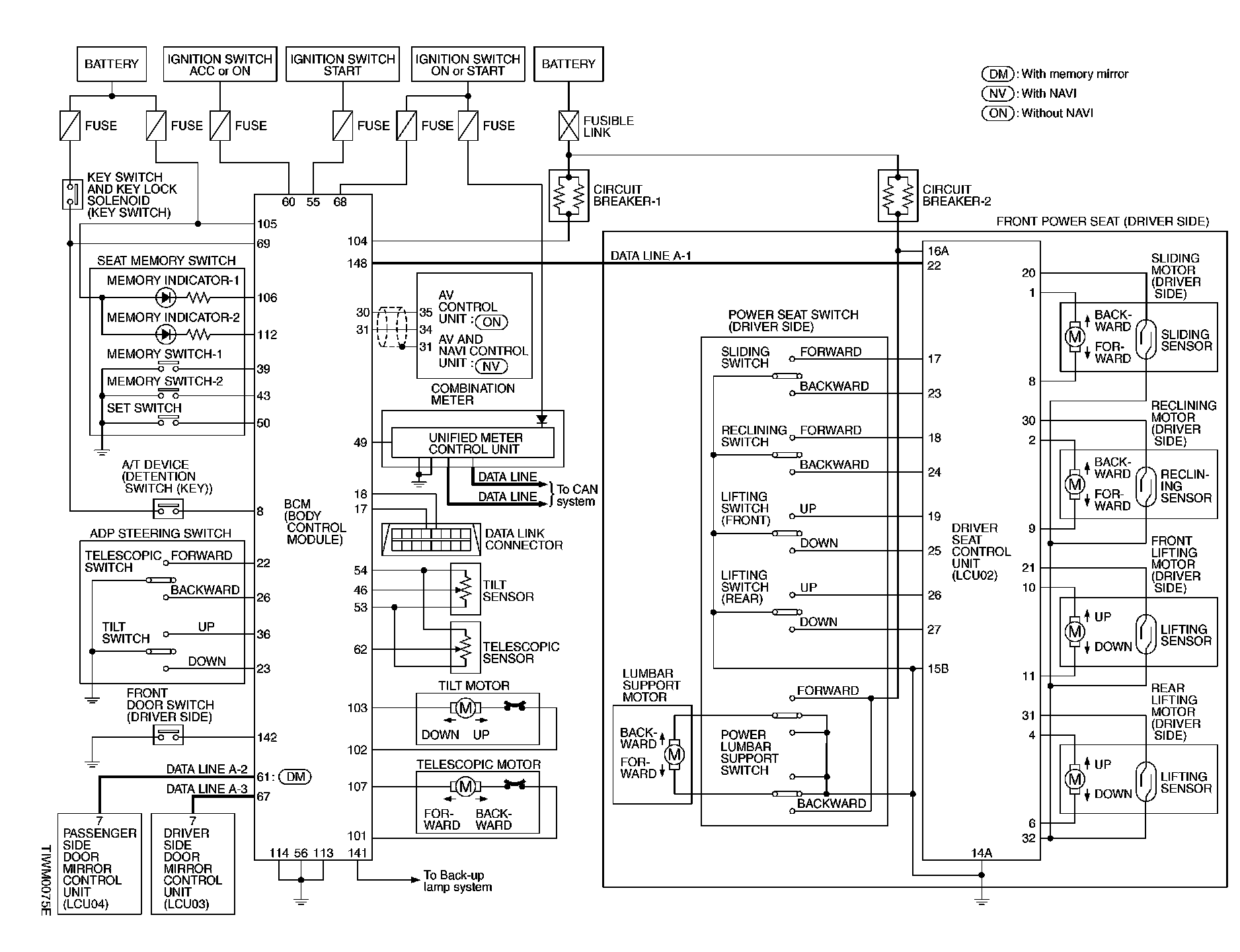

SE-AUT/Automatic Drive Positioner - Schematic:

SE-AUT/DP-02:

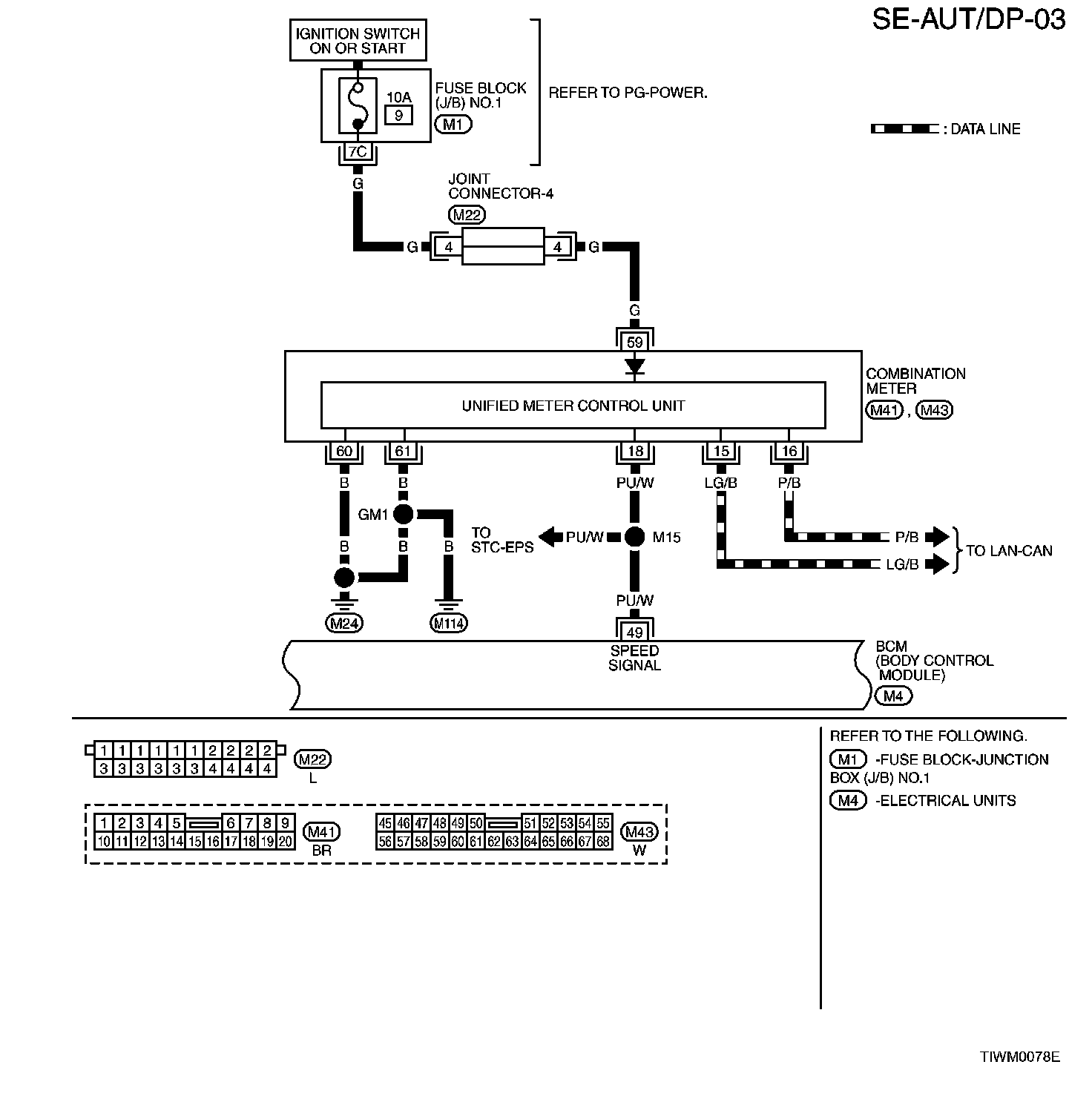

SE-AUT/DP-03:

SE-AUT/DP-04:

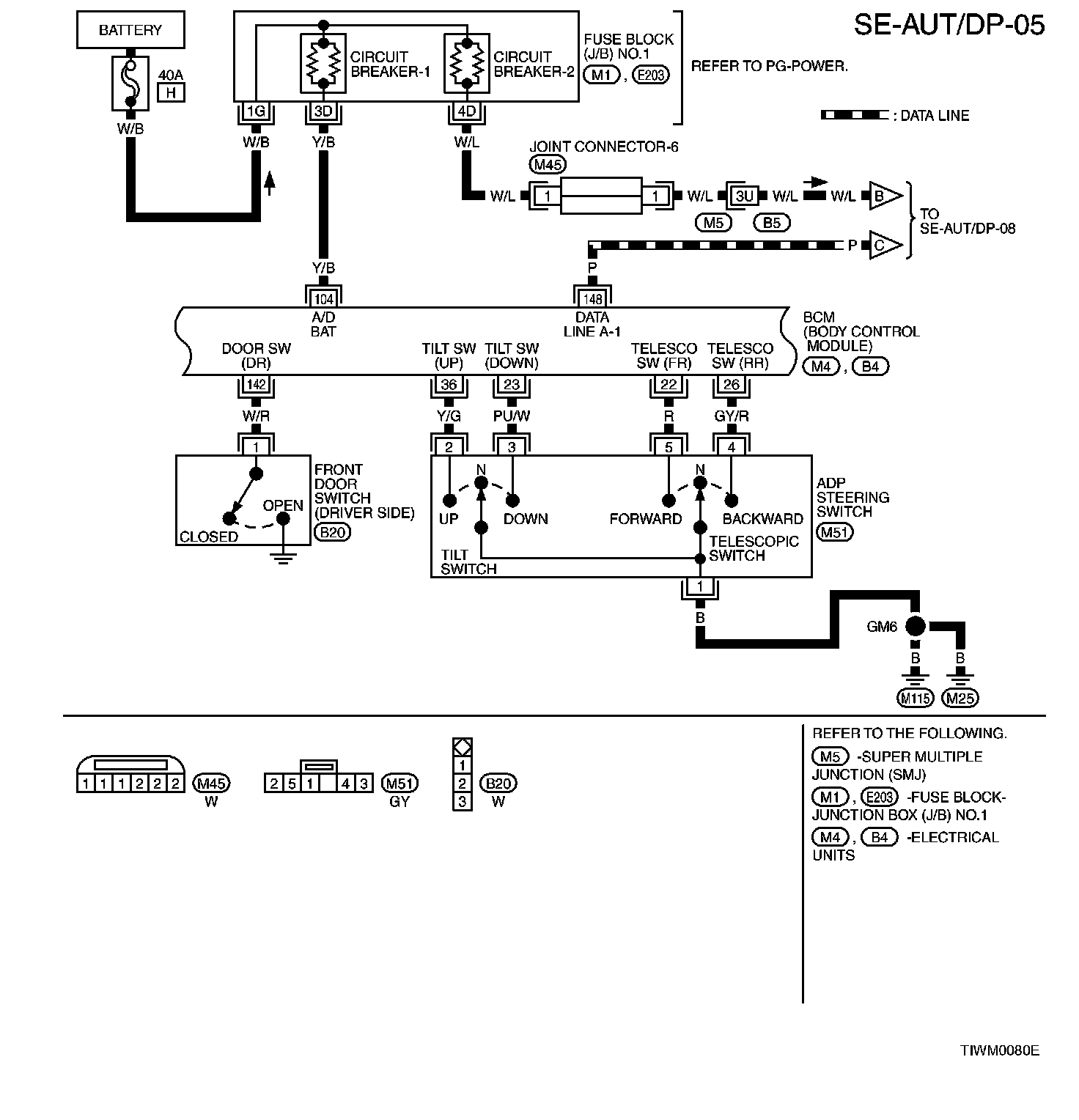

SE-AUT/DP-05:

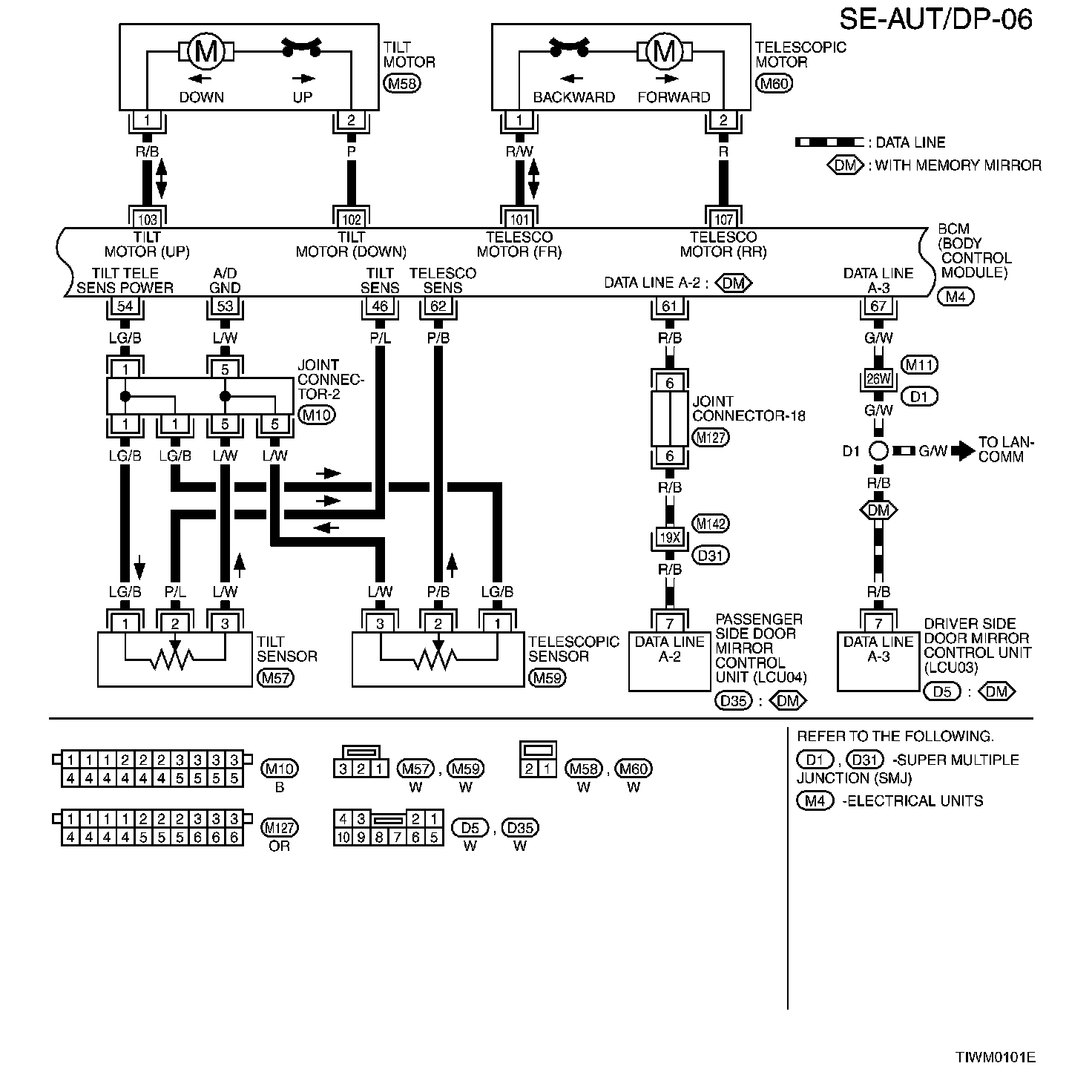

SE-AUT/DP-06:

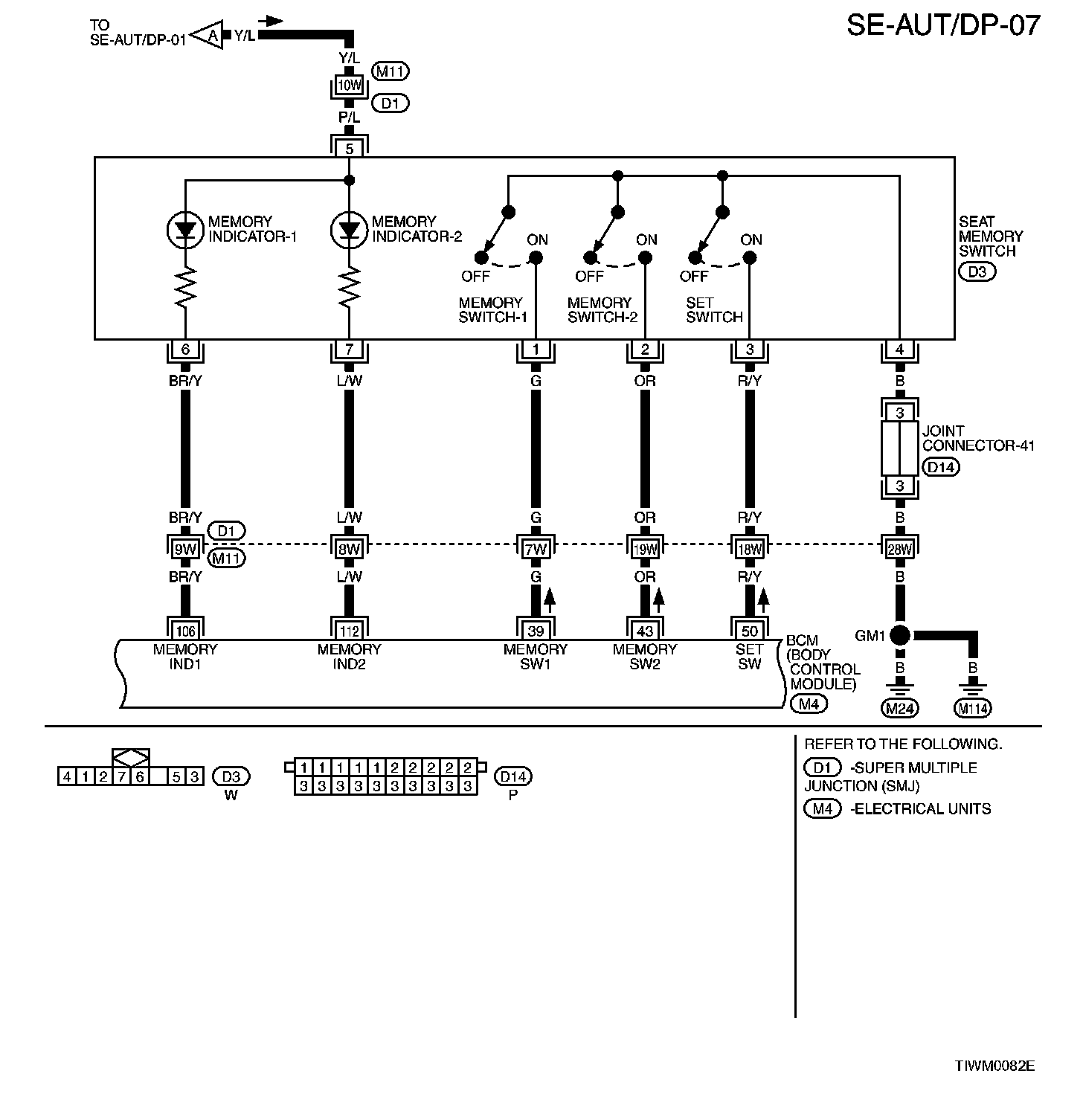

SE-AUT/DP-07:

SE-AUT/DP-08:

SE-AUT/DP-09:

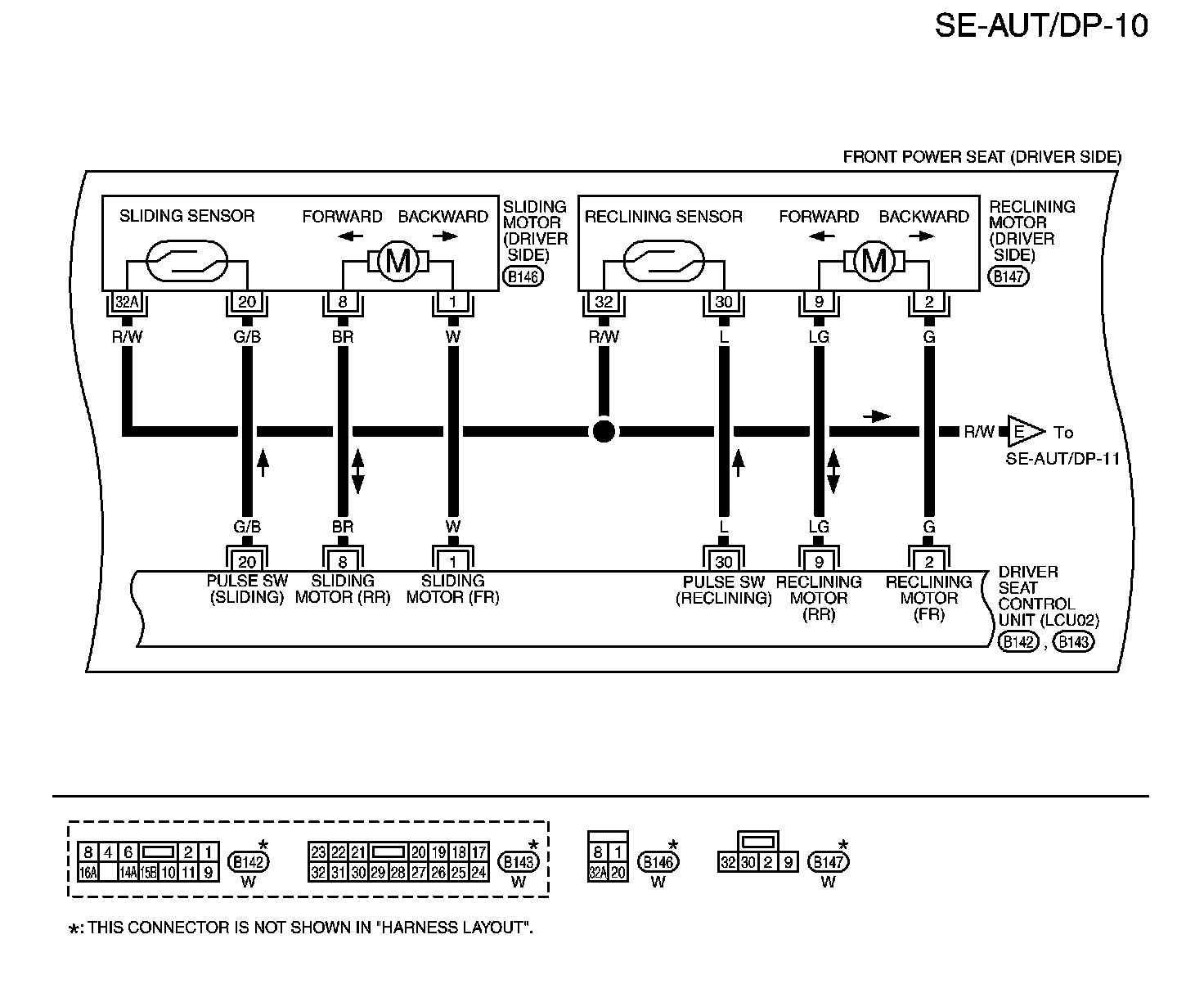

SE-AUT/DP-10:

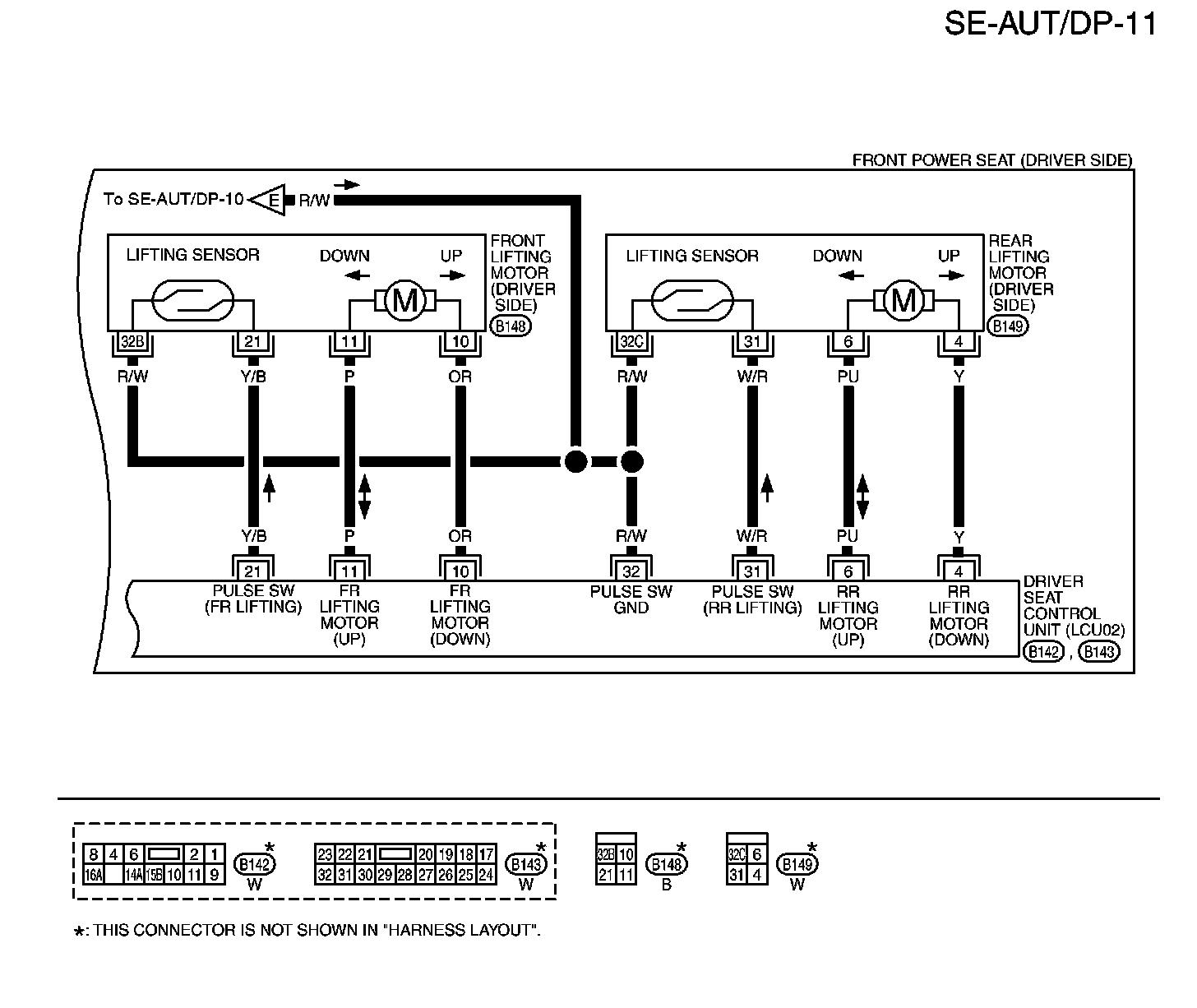

SE-AUT/DP-11:
