Suspension Control ( Automatic - Electronic )

Active Damper Suspension Configuration

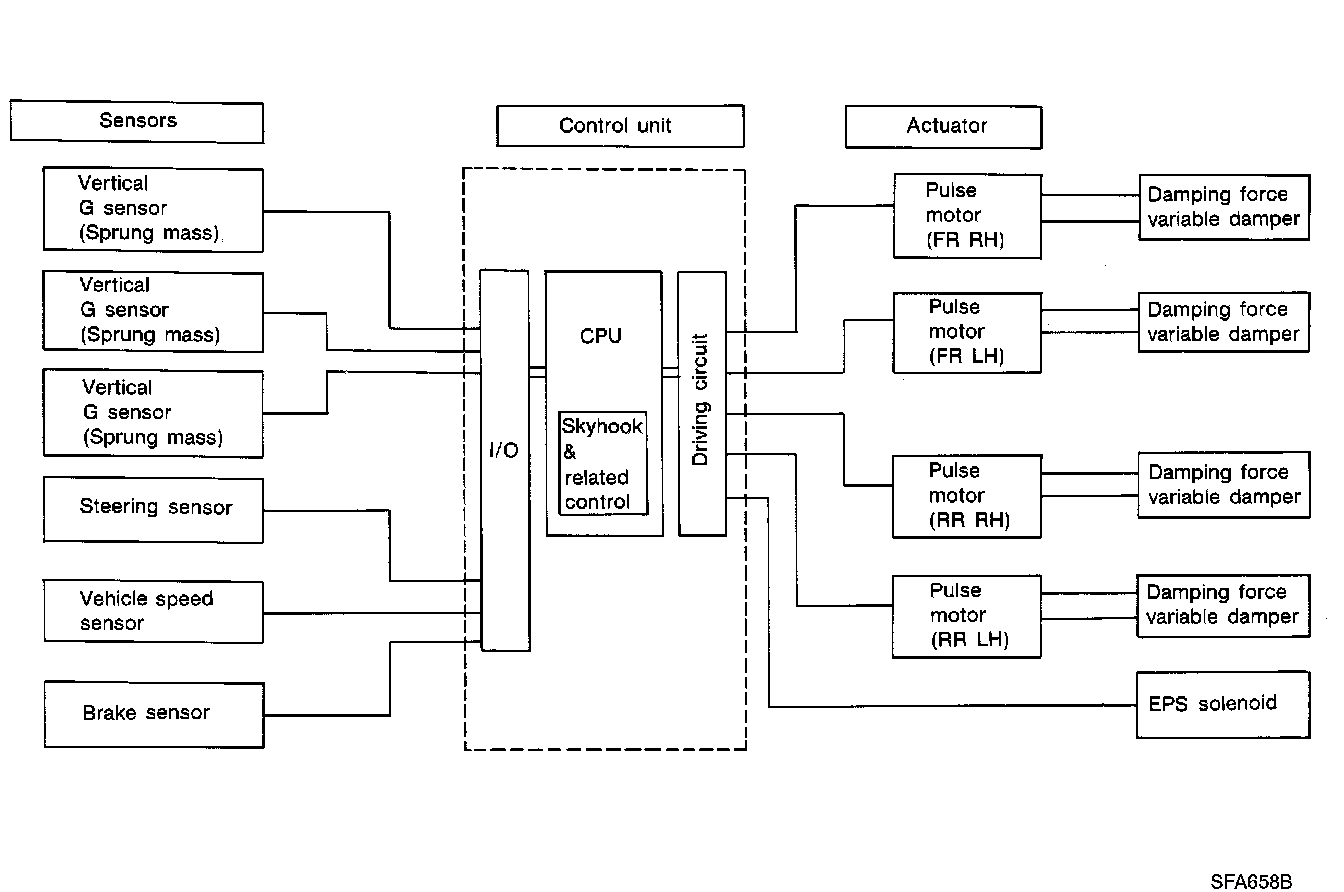

SYSTEM COMPONENTS

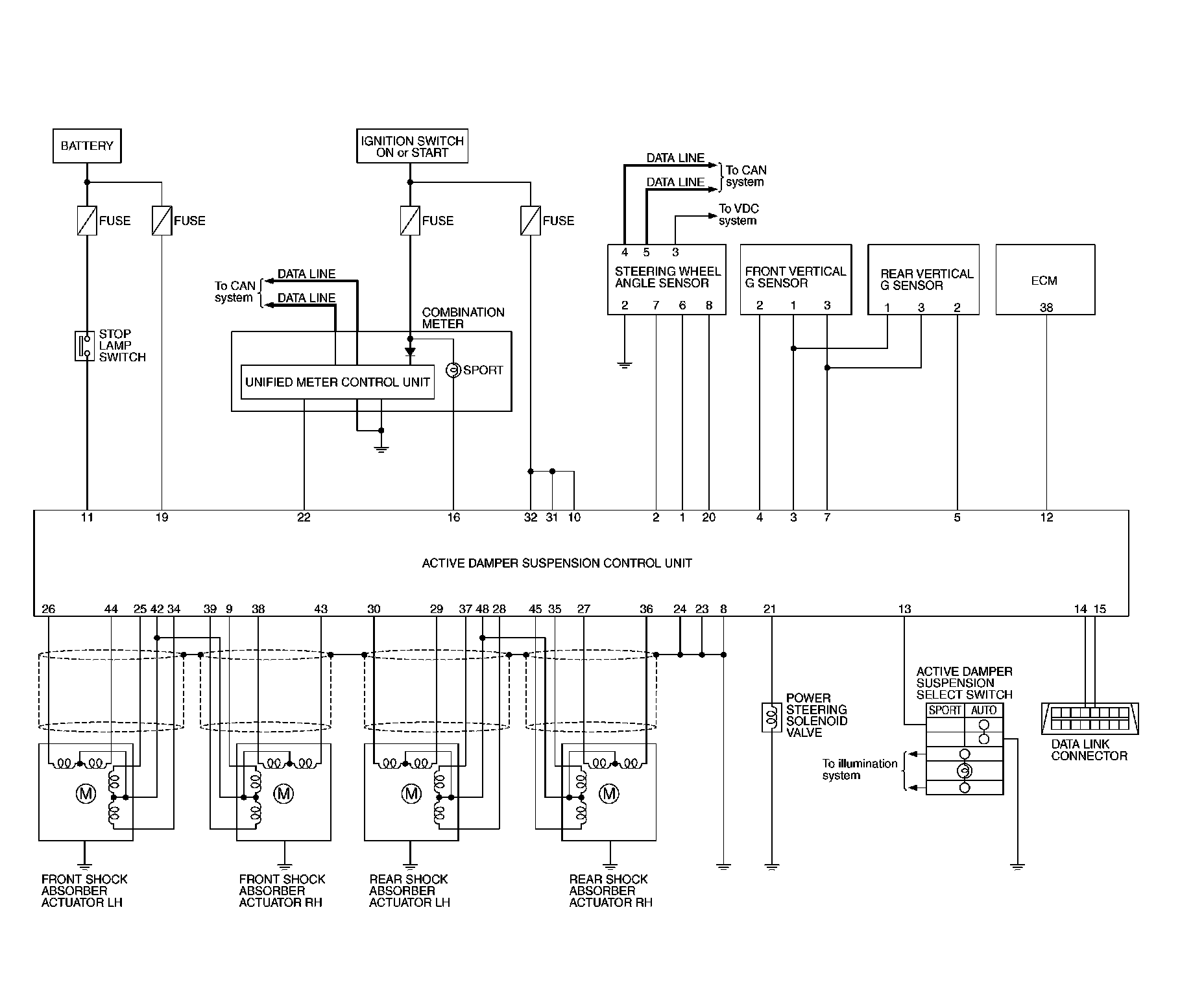

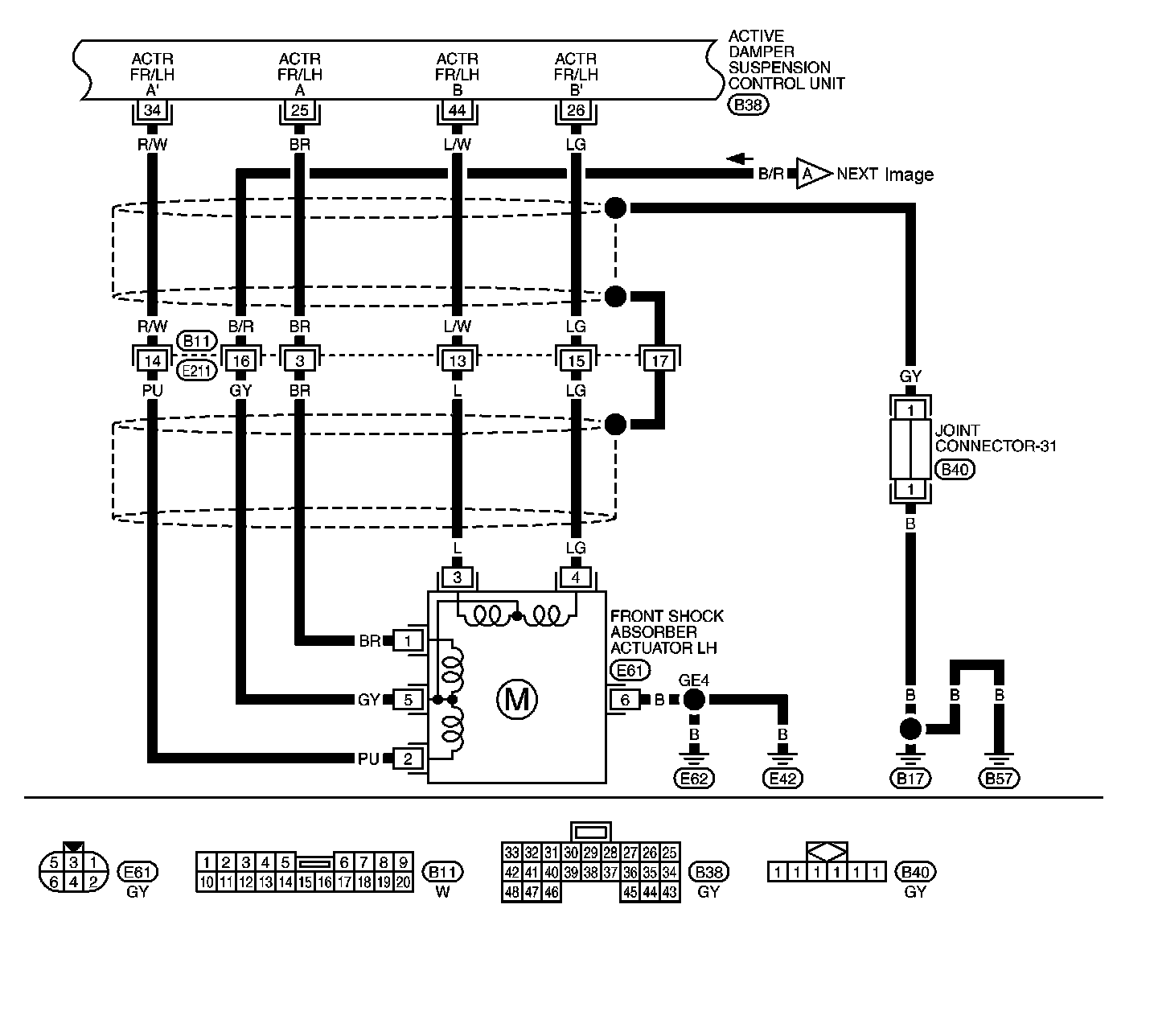

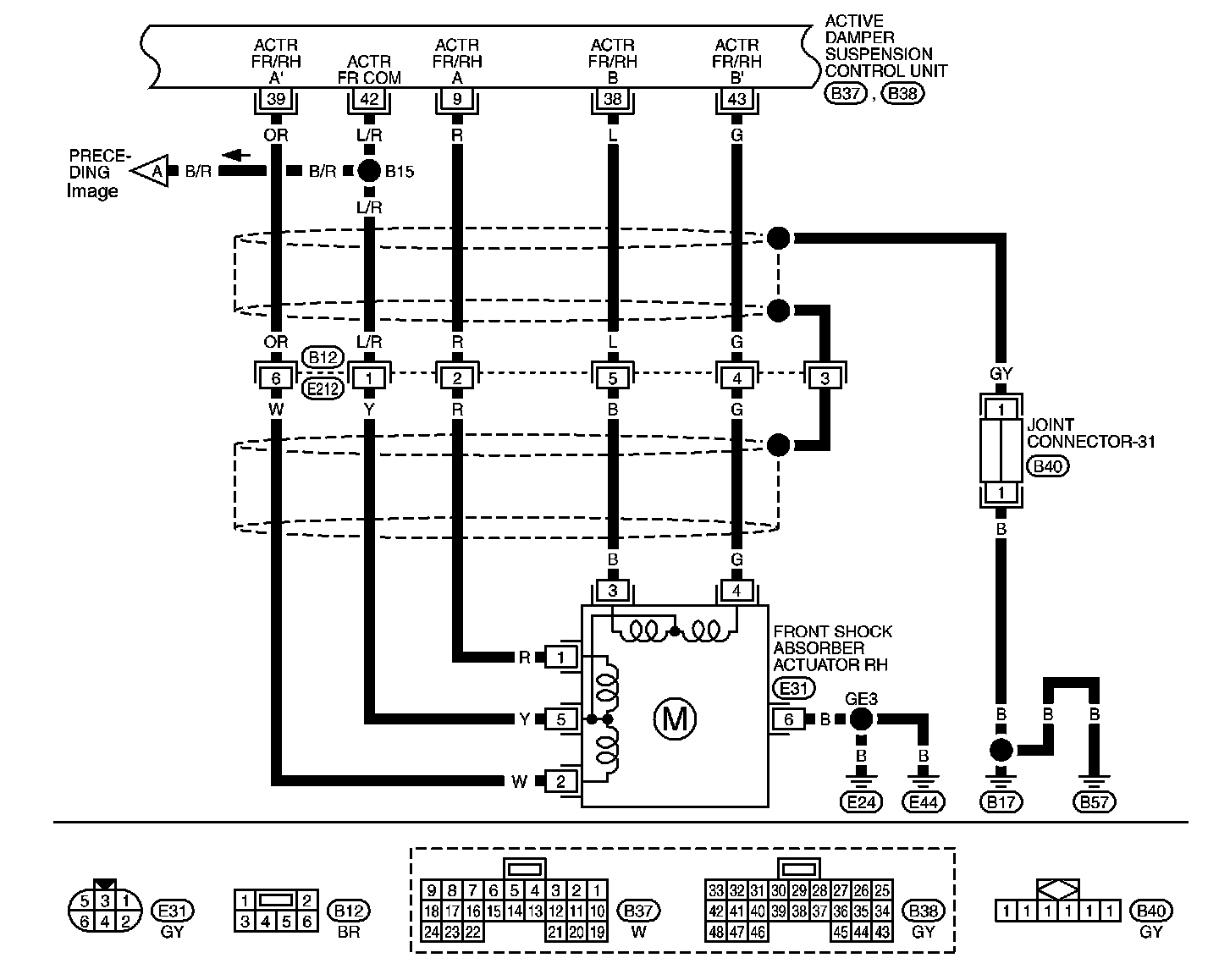

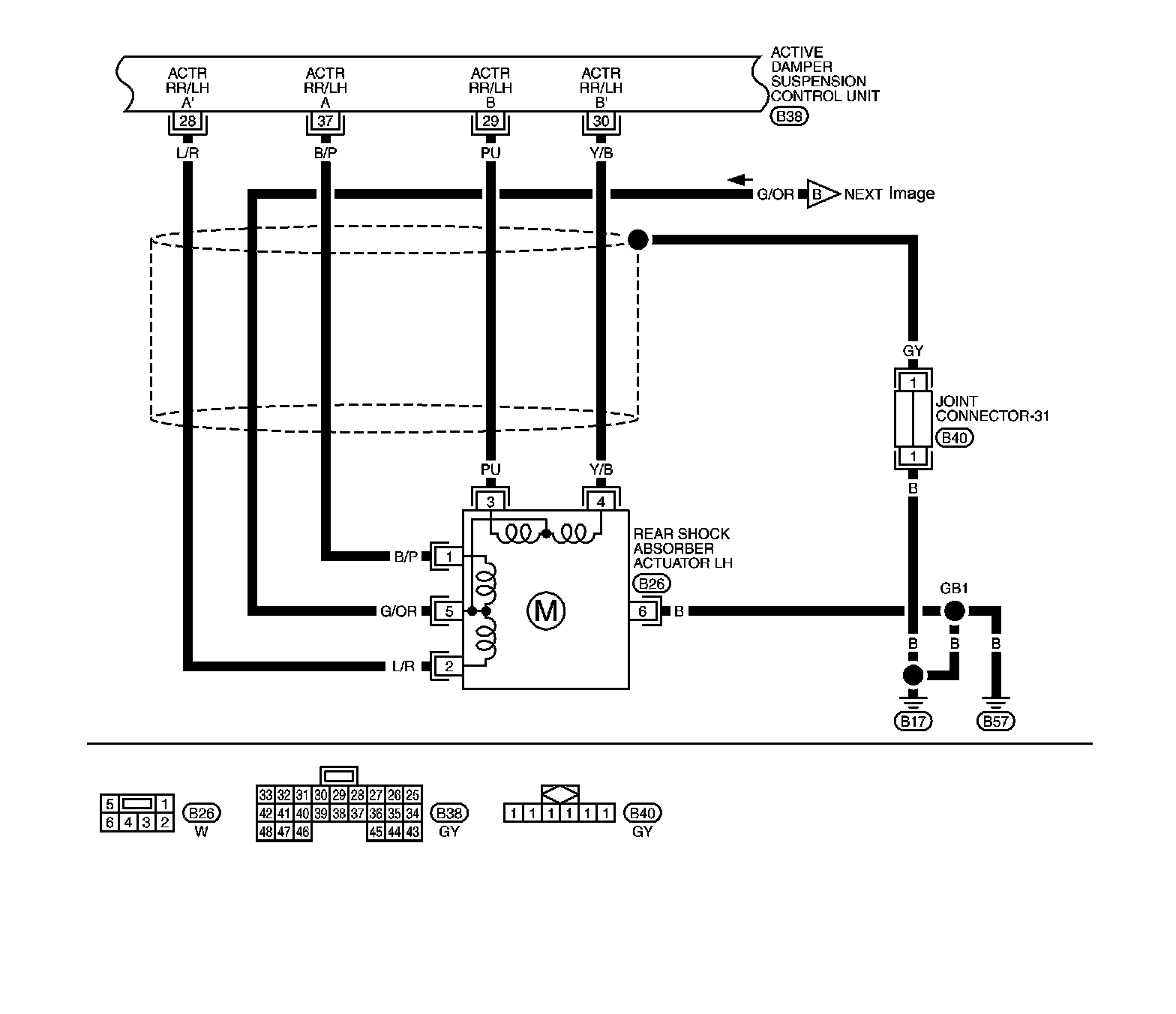

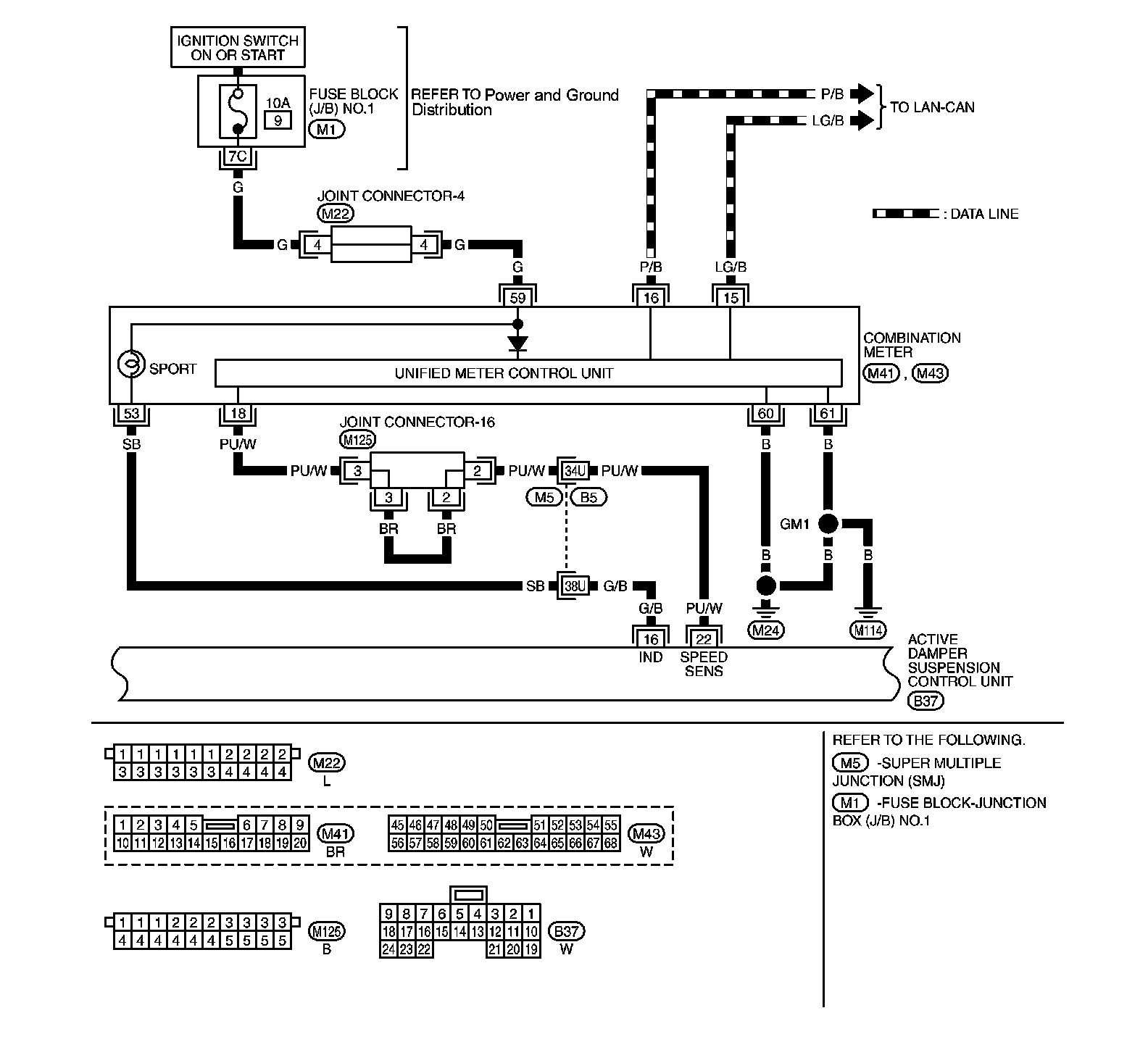

SCHEMATIC

SCS-ACTIVE-01

SCS-ACTIVE-02

SCS-ACTIVE-03

SCS-ACTIVE-04

SCS-ACTIVE-05

SCS-ACTIVE-06

SCS-ACTIVE-07

SCS-ACTIVE-08

SCS-ACTIVE-09
