Home >> Infiniti >> 2002 >> Q45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp >> LT-TAIL/L

LT-TAIL/L

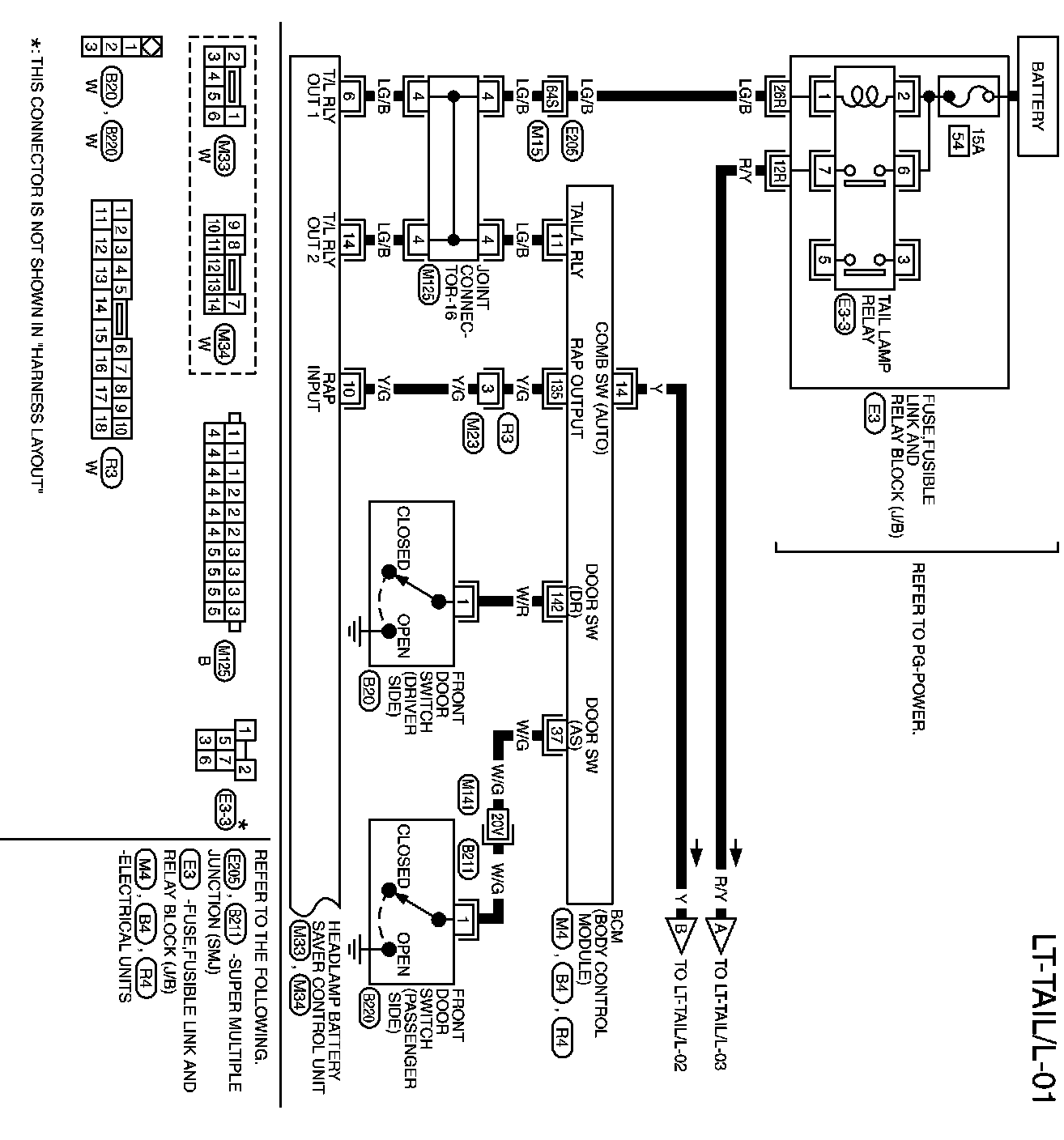

LT-TAIL/L-01:



LT-TAIL/L-01 Connector Views:

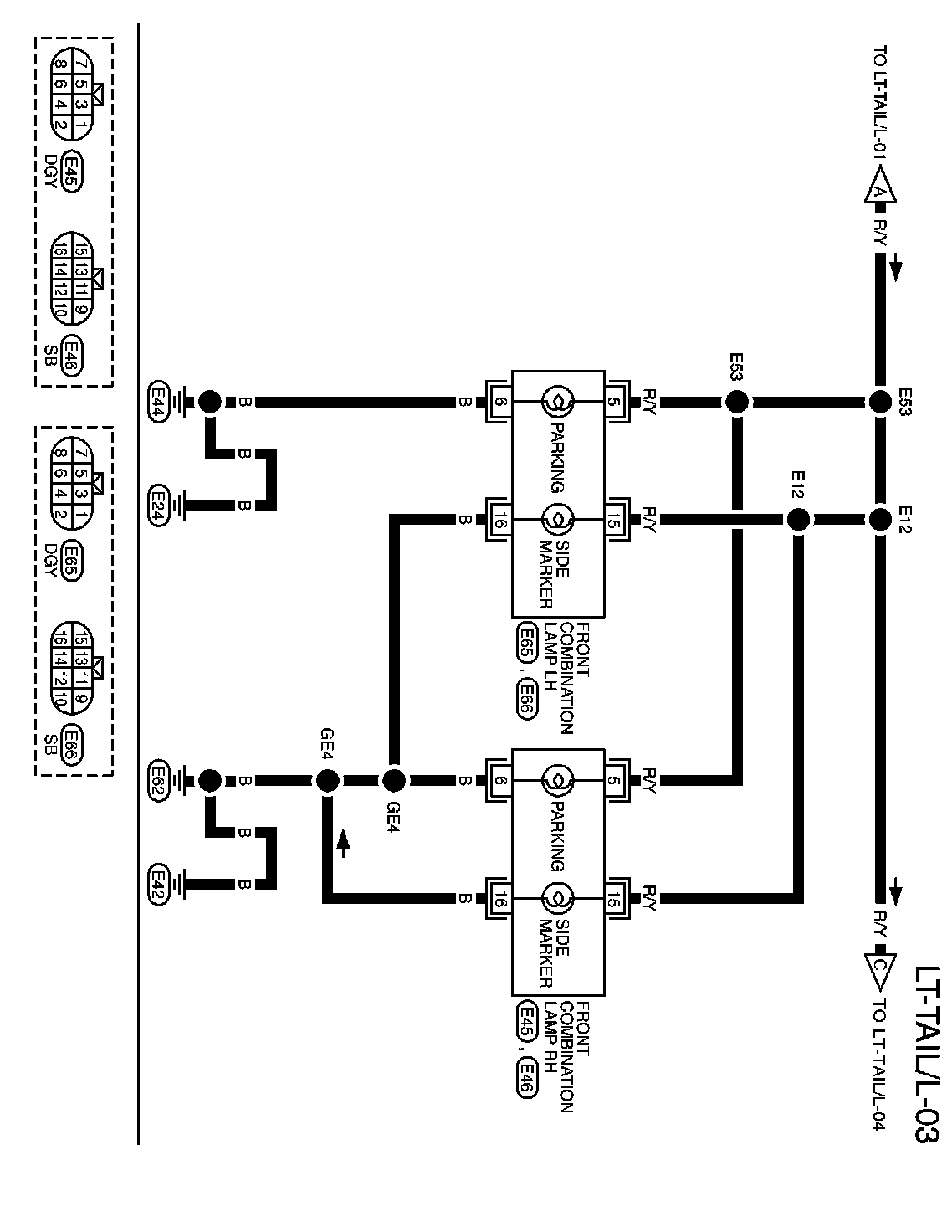

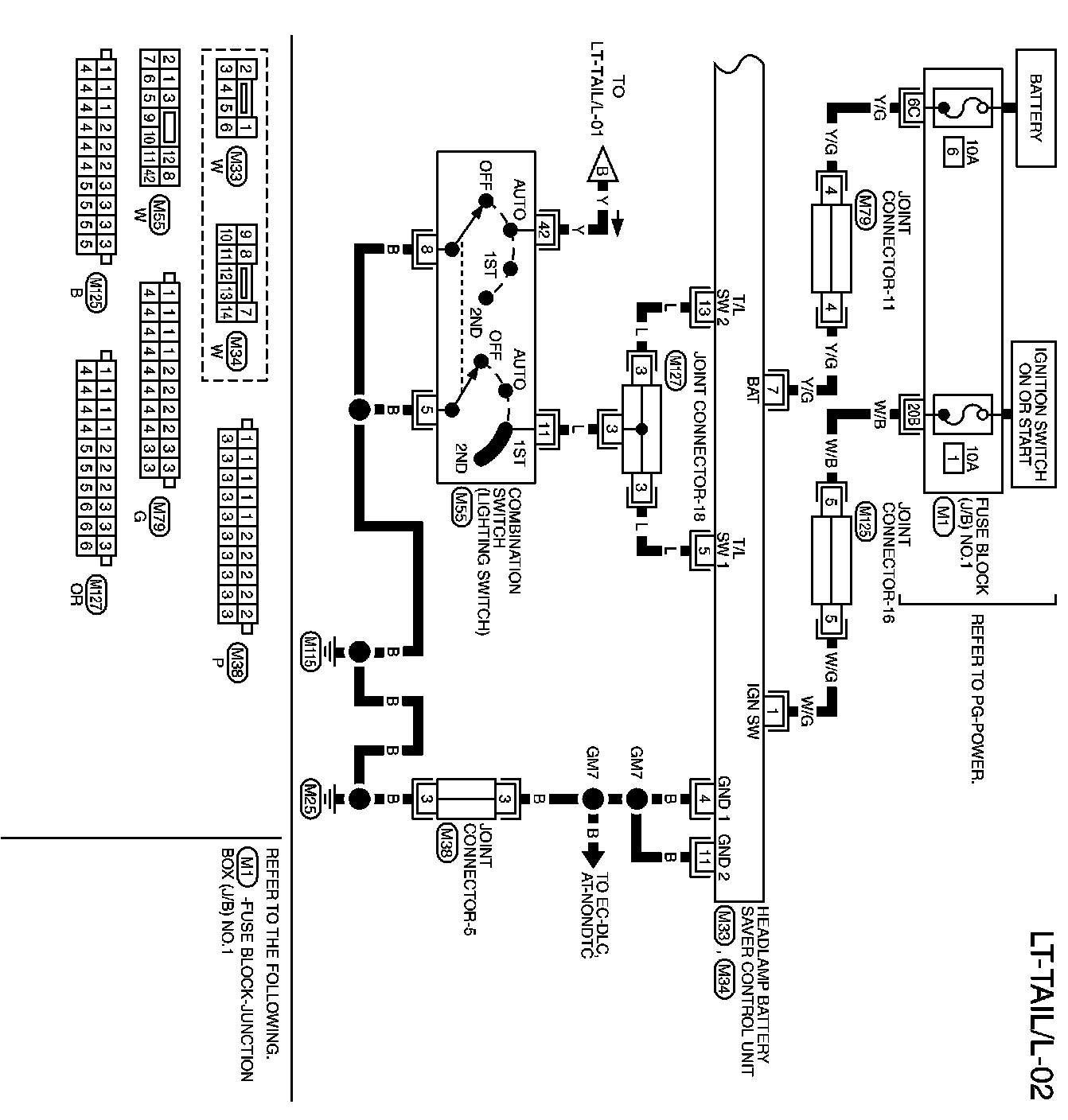

LT-TAIL/L-03:



LT-TAIL/L-04:
