Tire Monitoring System
>>
Tire Monitoring System Schematic
Tire Monitoring System Schematic

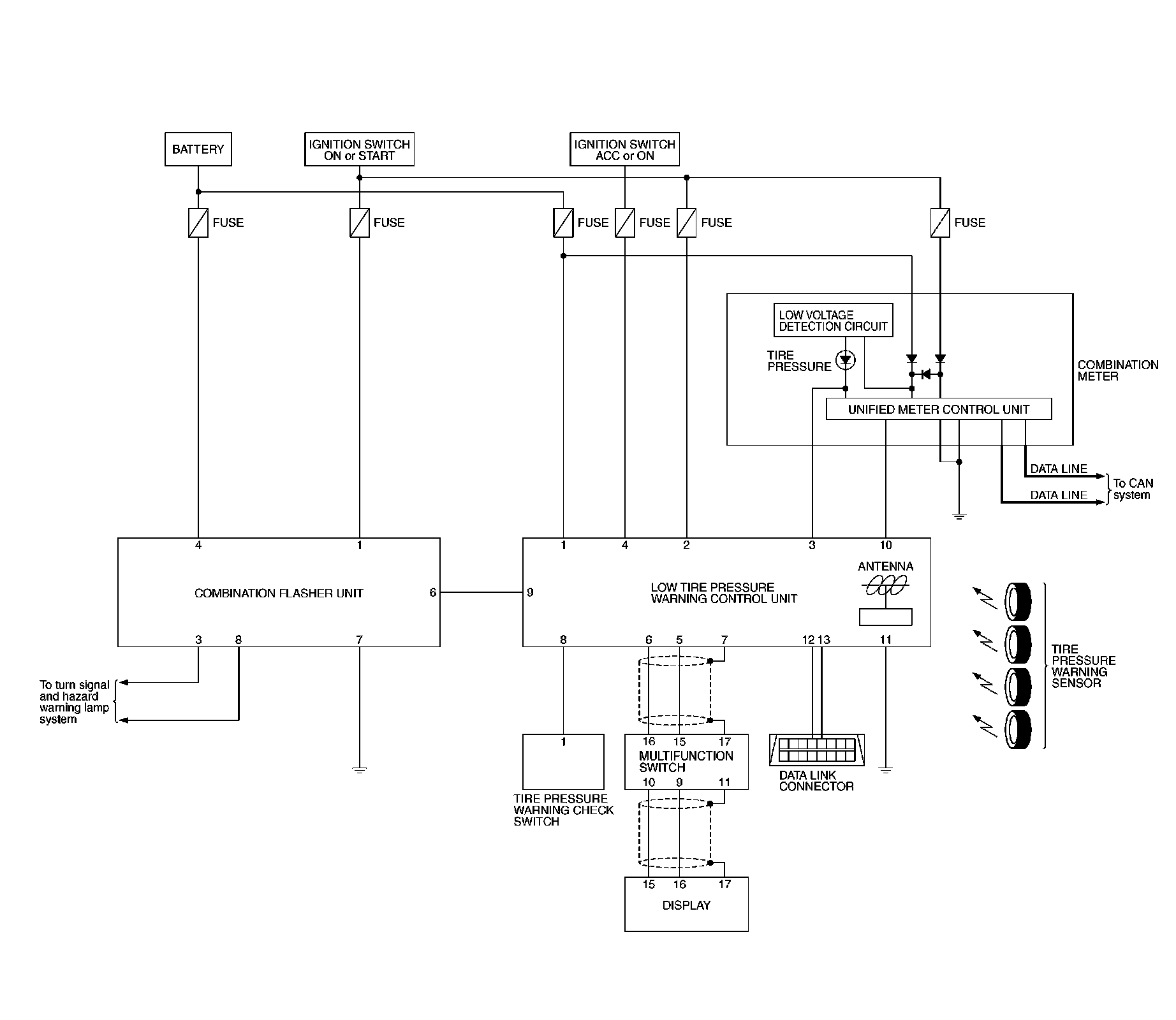

Tire Monitoring System Schematic:
