Voice Activation System
>>
DI-VOICE
DI-VOICE
DI-VOICE-01:

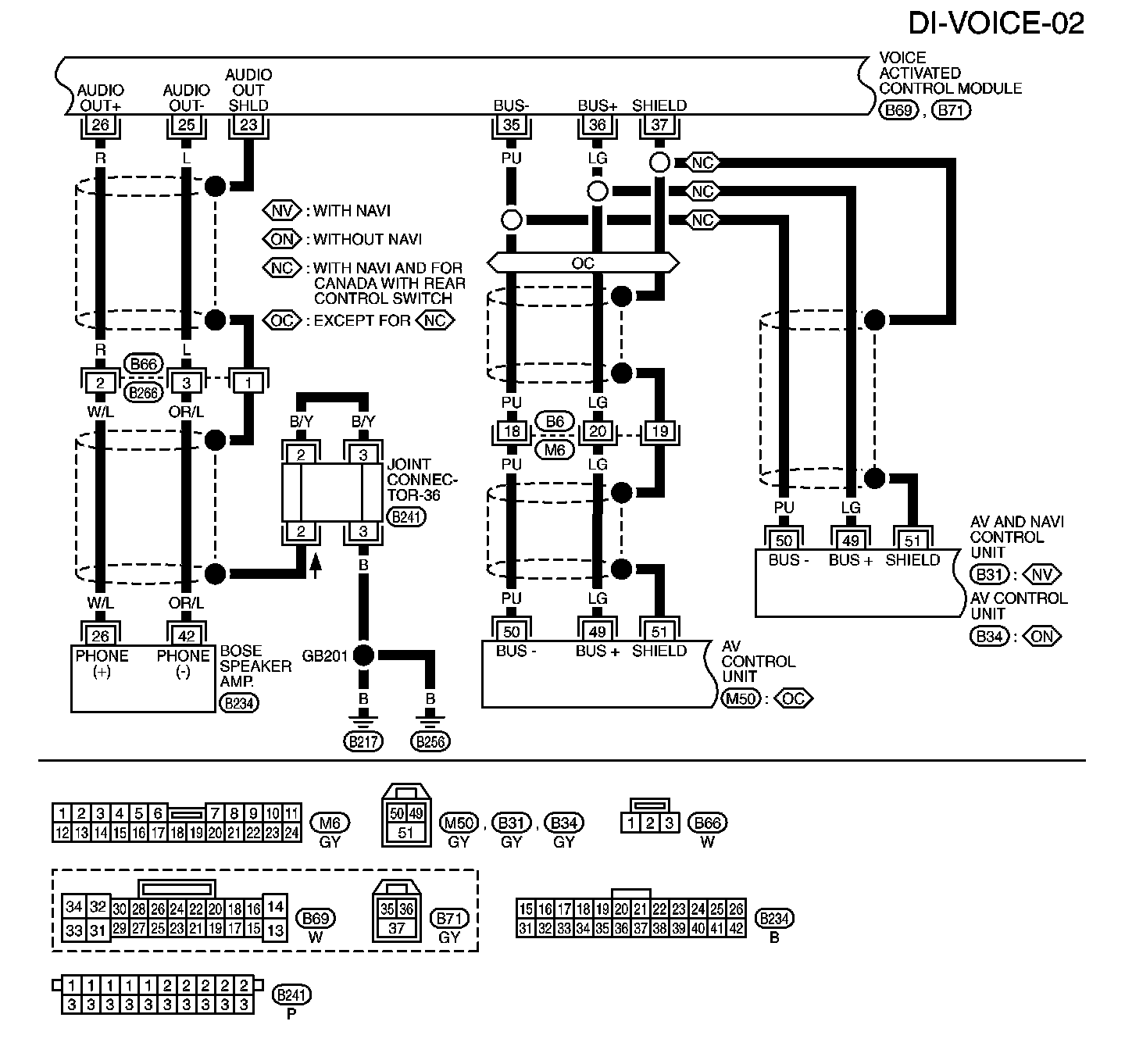

DI-VOICE-02:

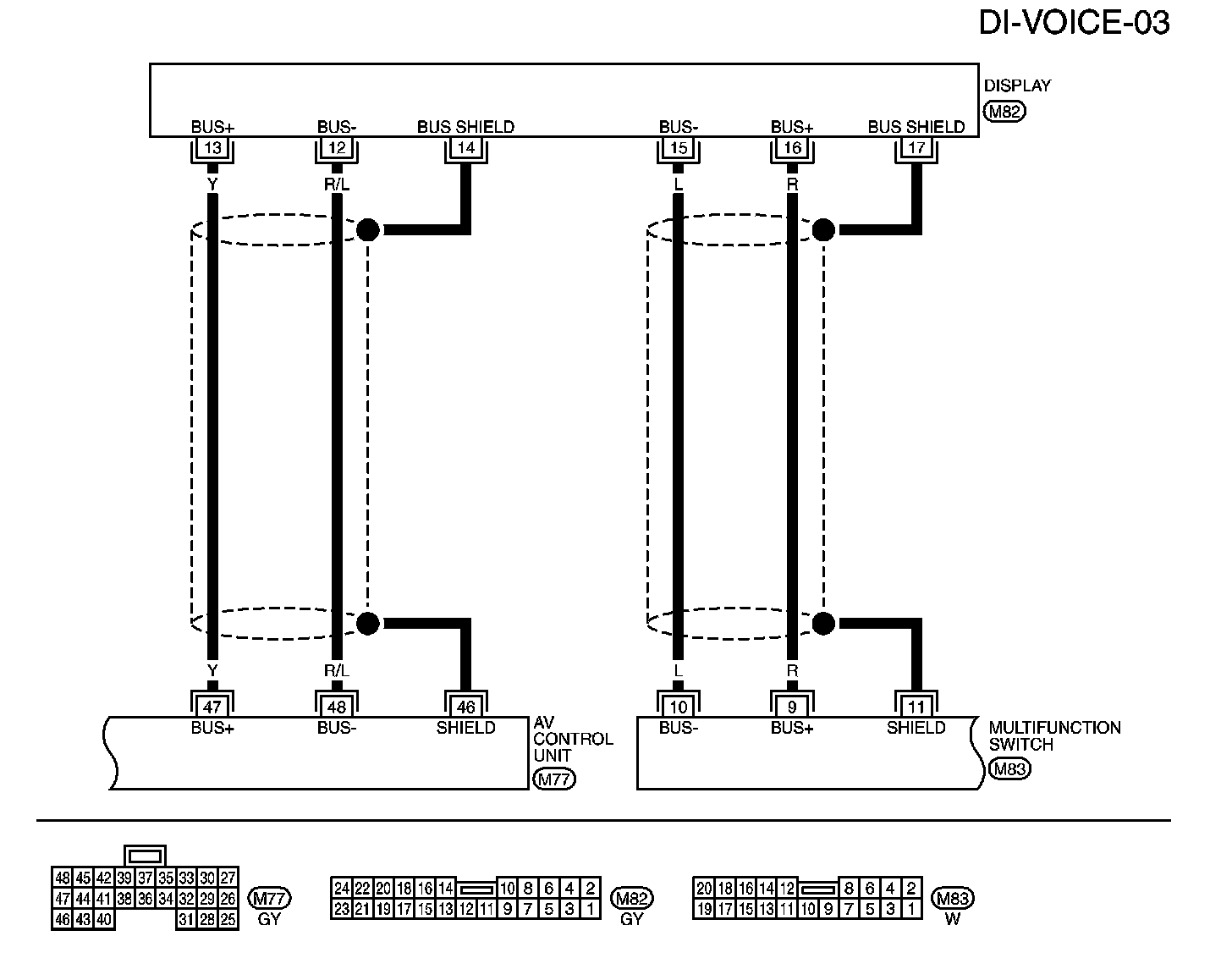

DI-VOICE-03:
DI-VOICE-04:
DI-VOICE-05:

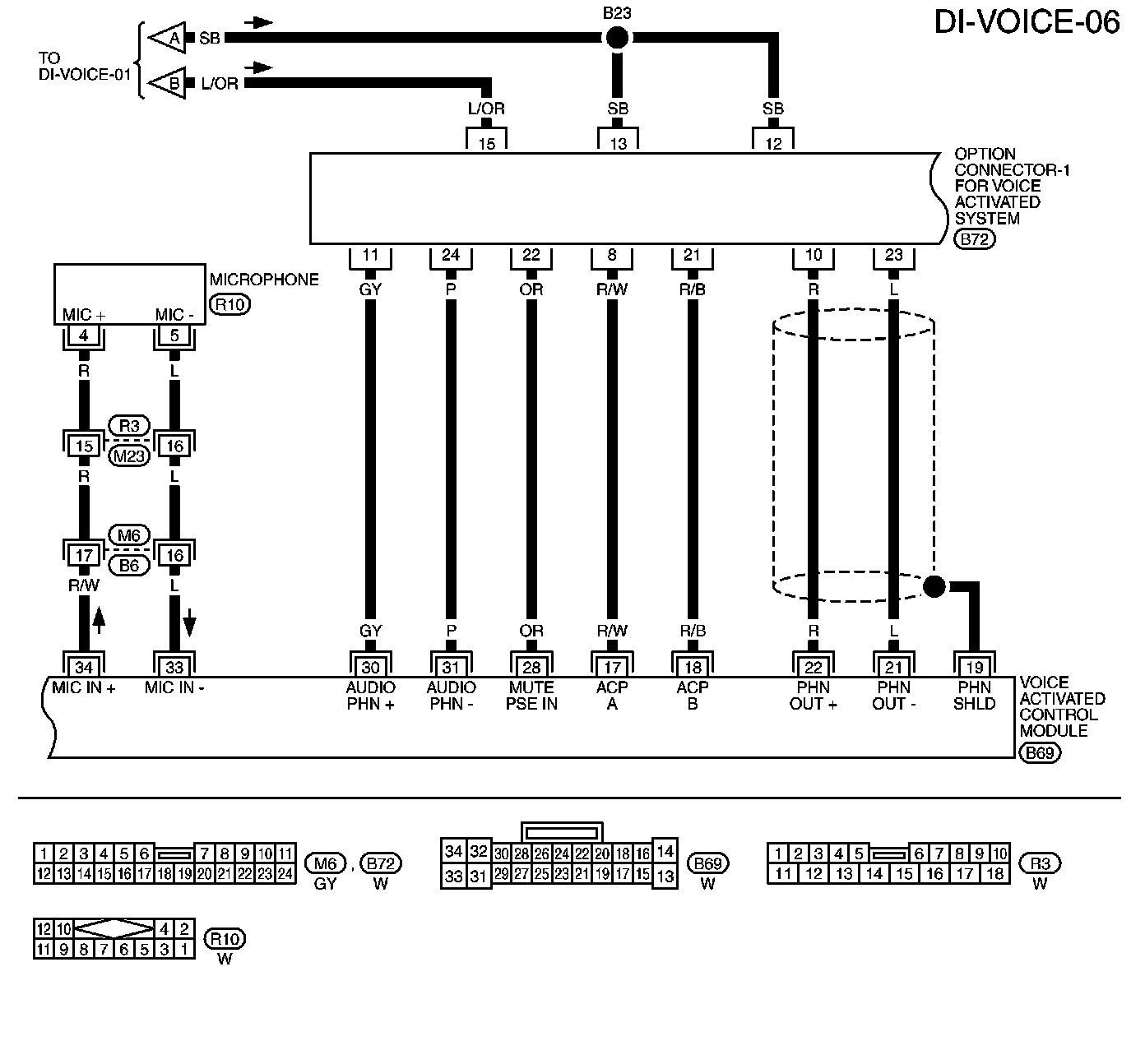

DI-VOICE-06:

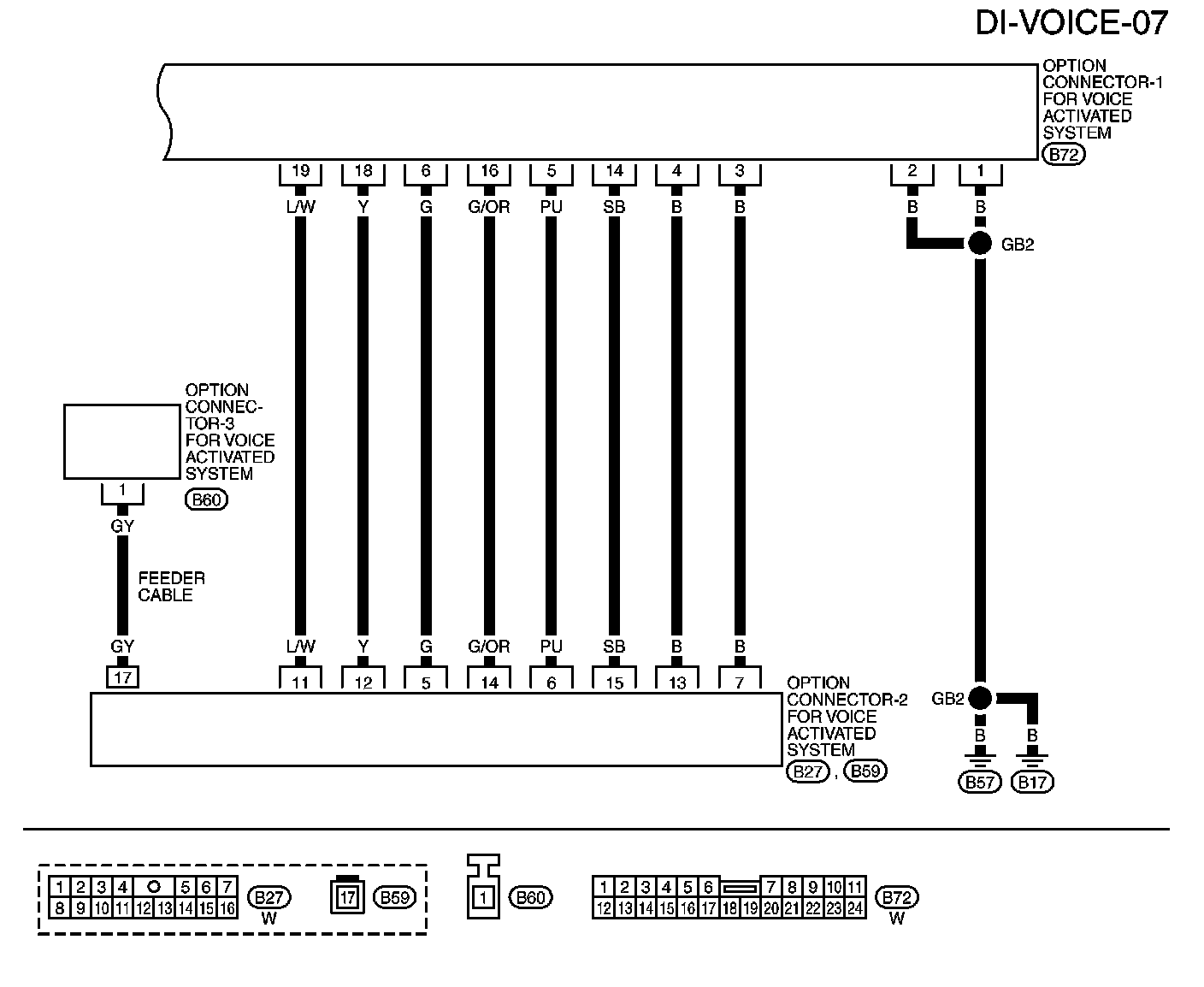

DI-VOICE-07:
