GW-WINDOW
GW-WINDOW

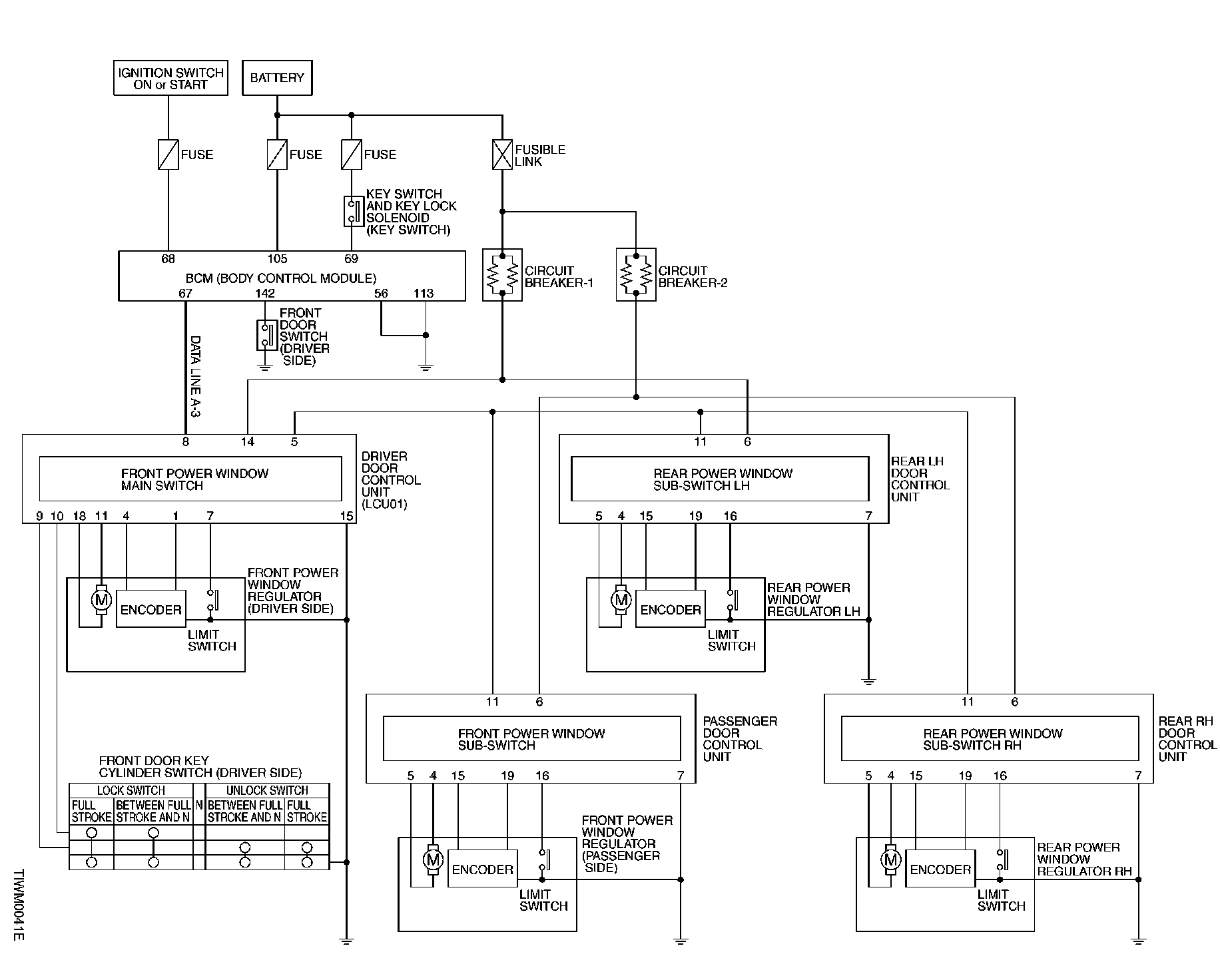

GW-WINDOW // Power Window System - Schematic:

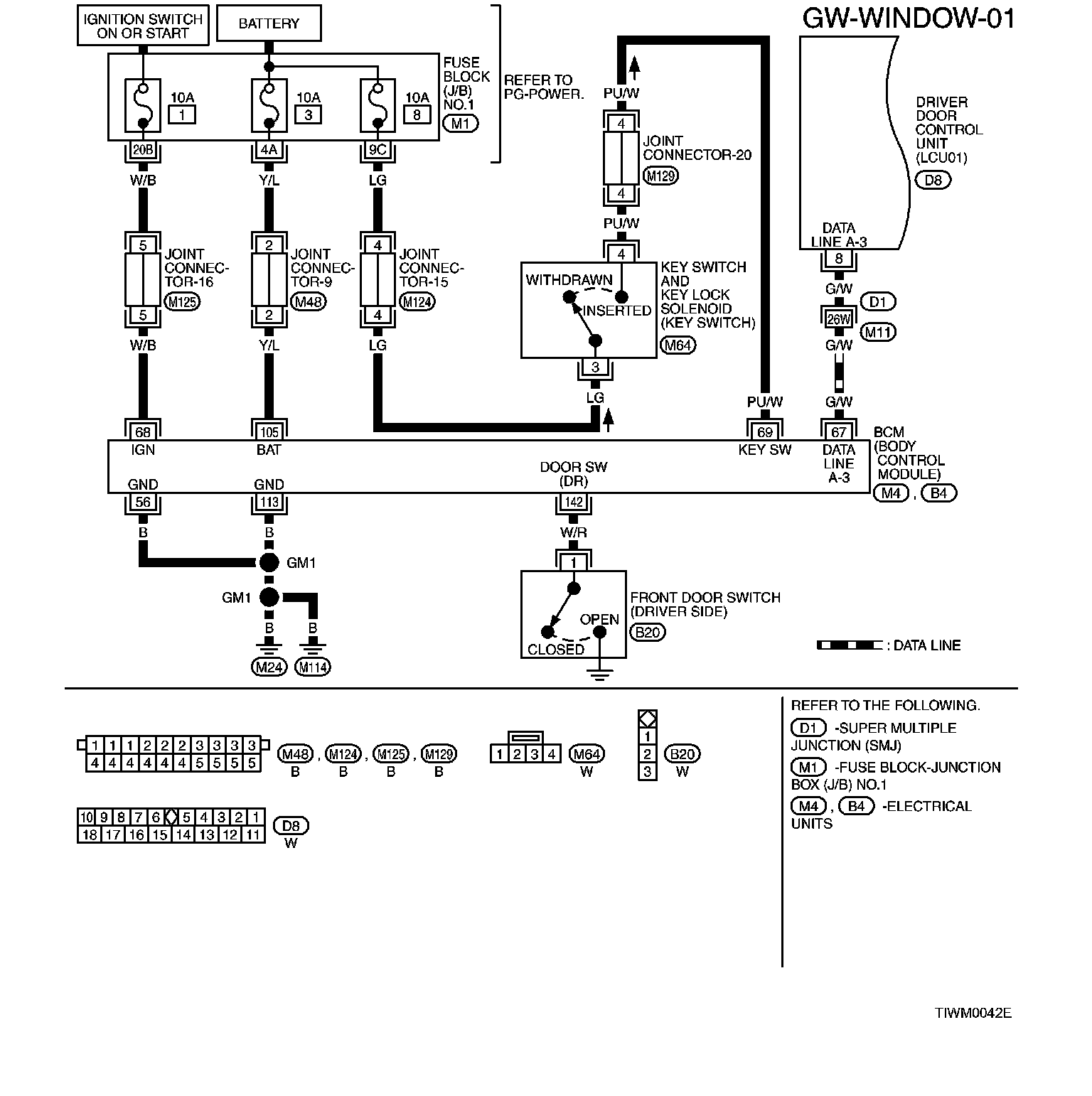

GW-WINDOW-01:

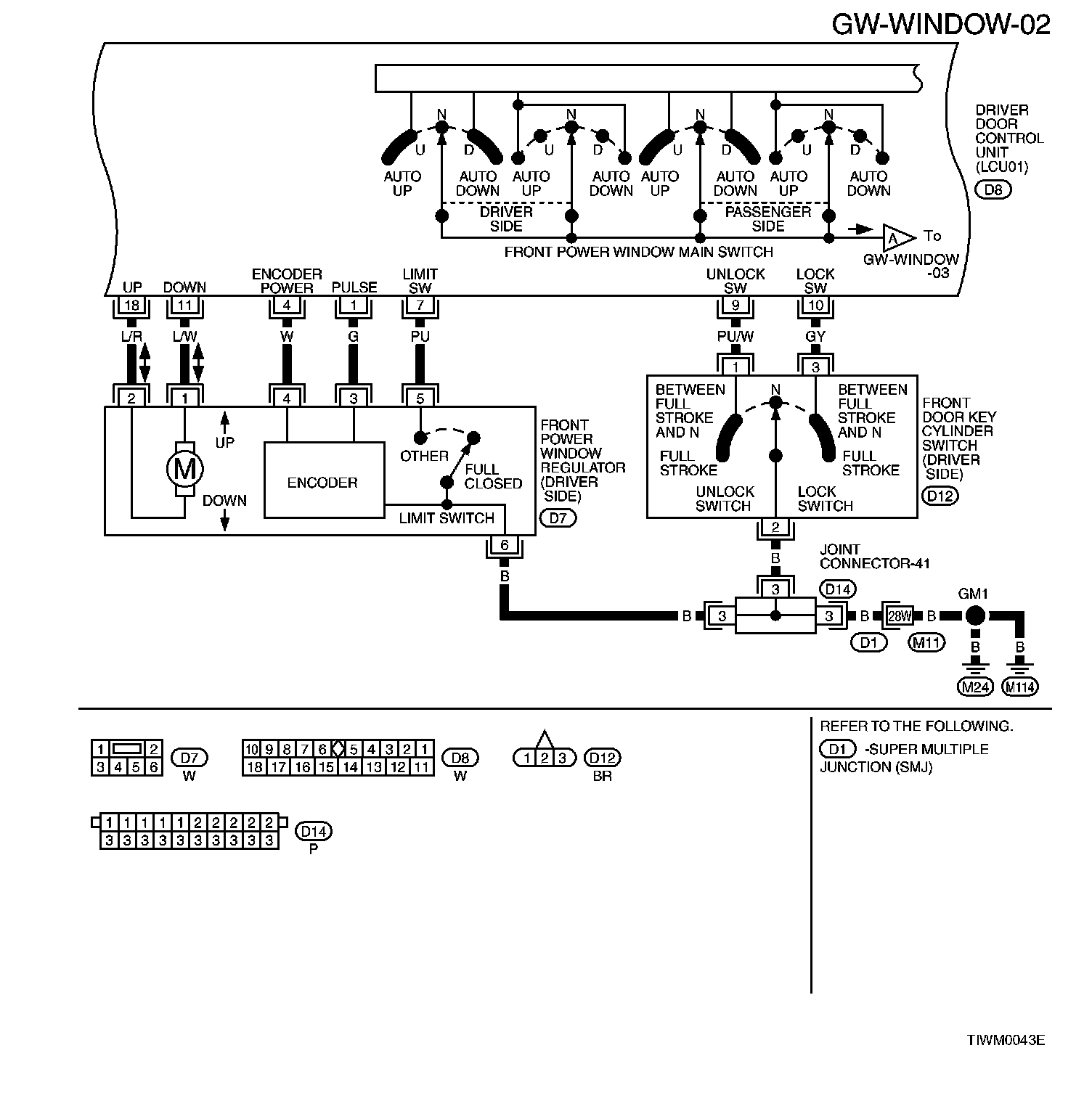

GW-WINDOW-02:
GW-WINDOW-03:
GW-WINDOW-04:
GW-WINDOW-05:
GW-WINDOW-05:
