System Diagram

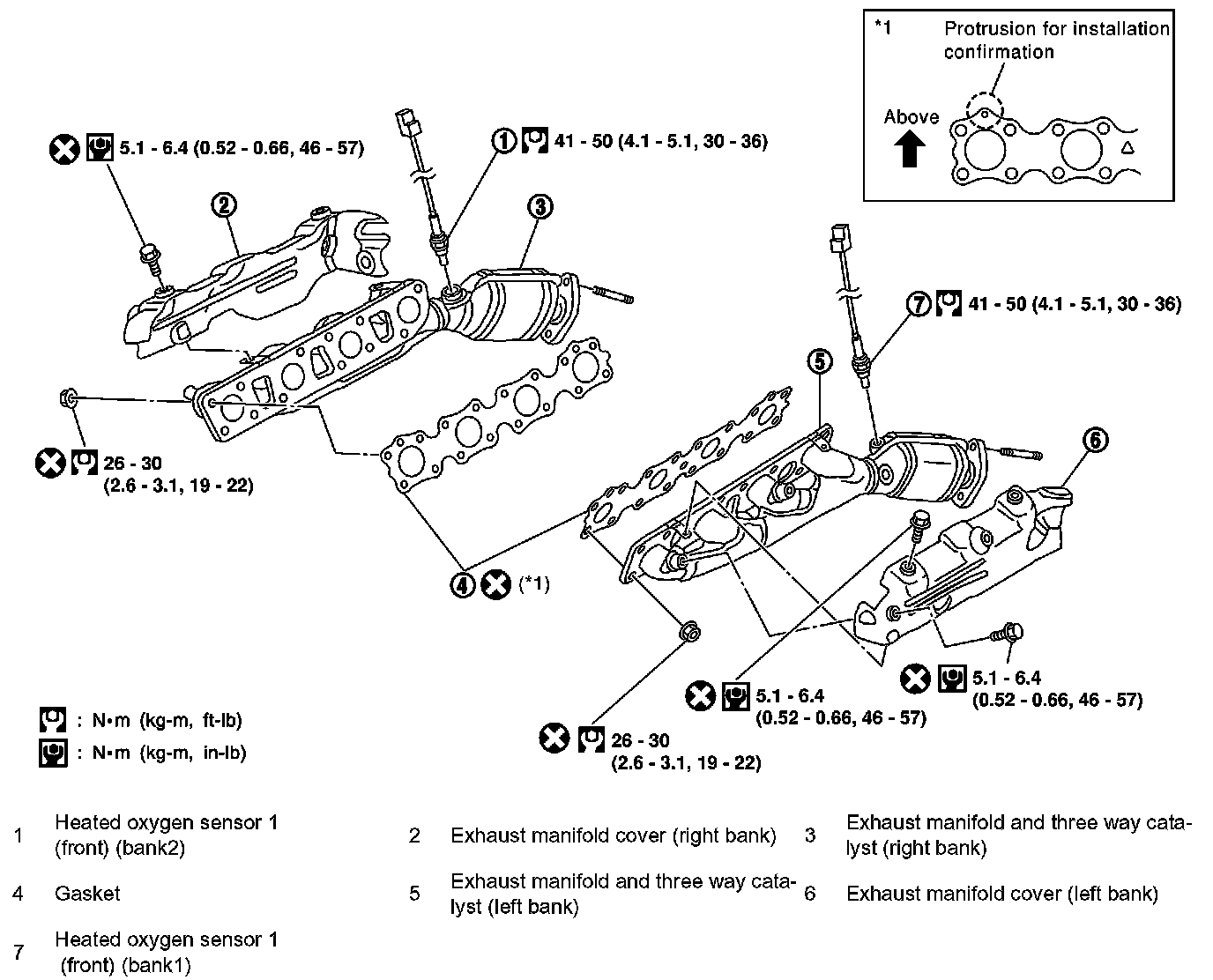

EXHAUST MANIFOLD & THREE WAY CATALYST:

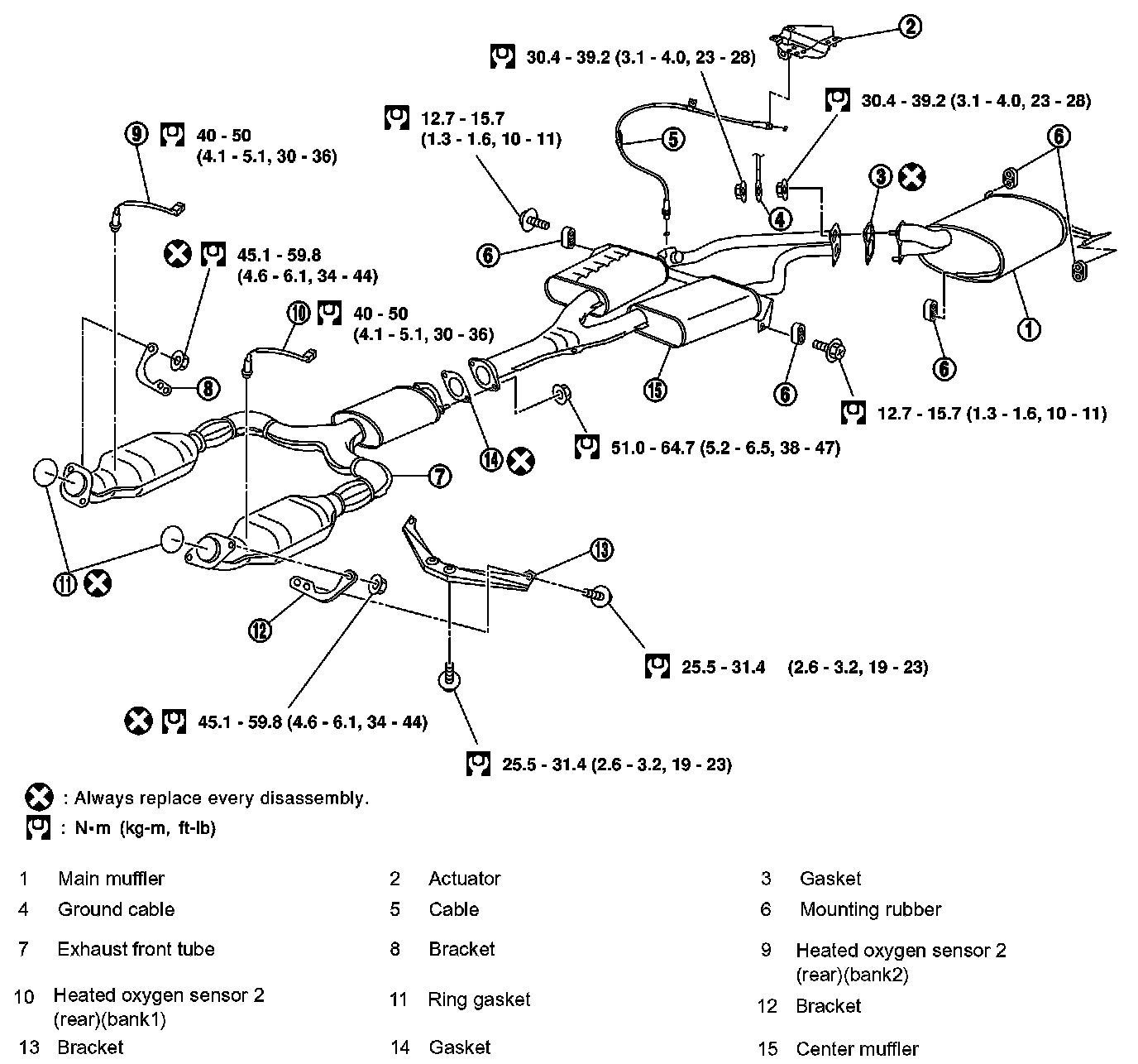

EXHAUST SYSTEM / DUAL MODE MUFFLERS:

DUAL MODE MUFFLER SYSTEM / Actuator, Exhaust Control Valve, Cable & Muffler Control Unit:

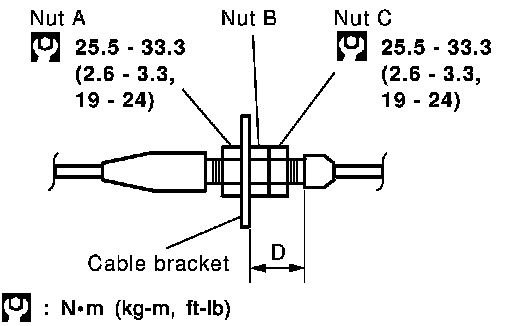

CABLE BRACKET / ACTUATOR:
