Cooling System: Diagrams

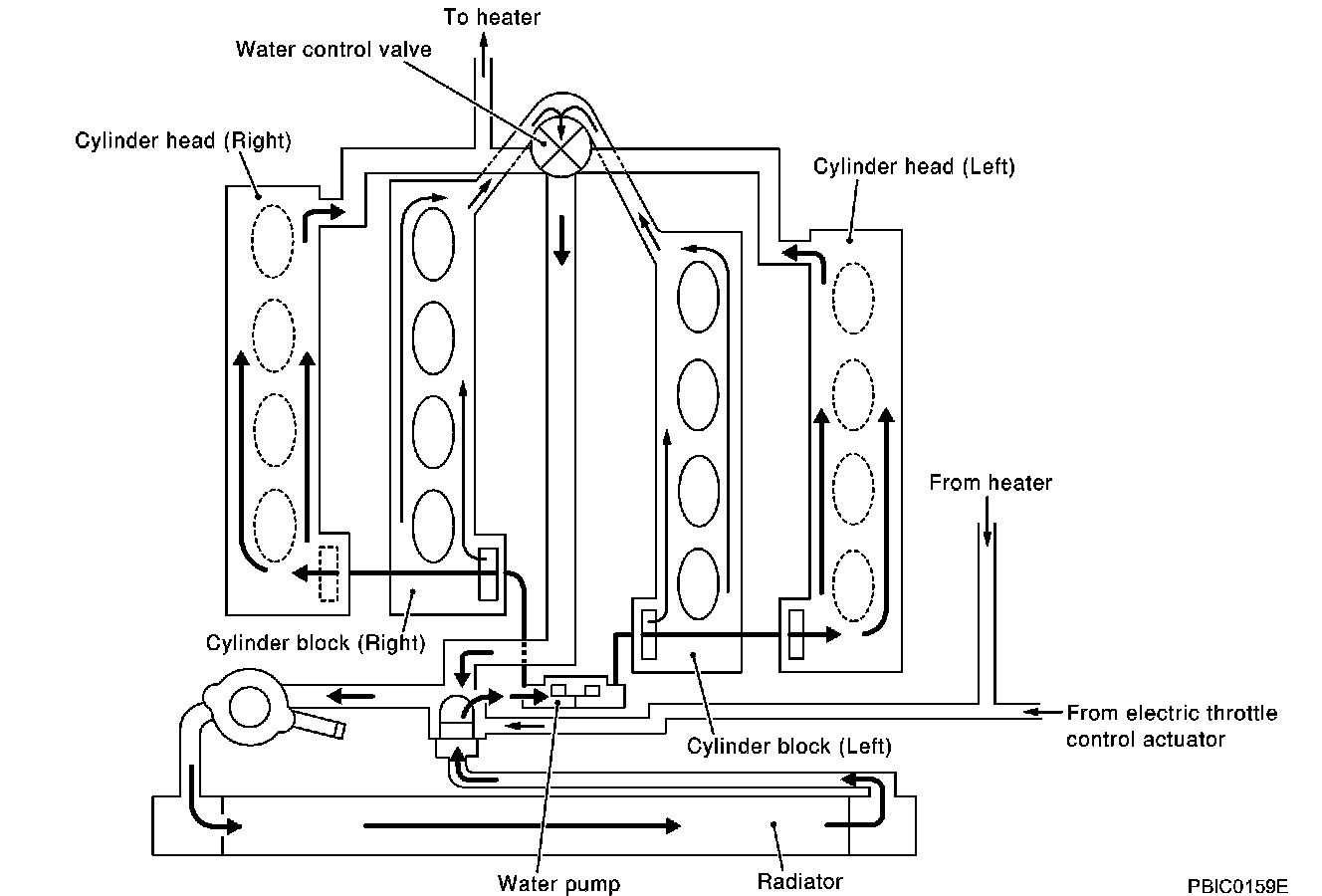

COOLING SYSTEM CIRCUIT (part 1 Of 2):

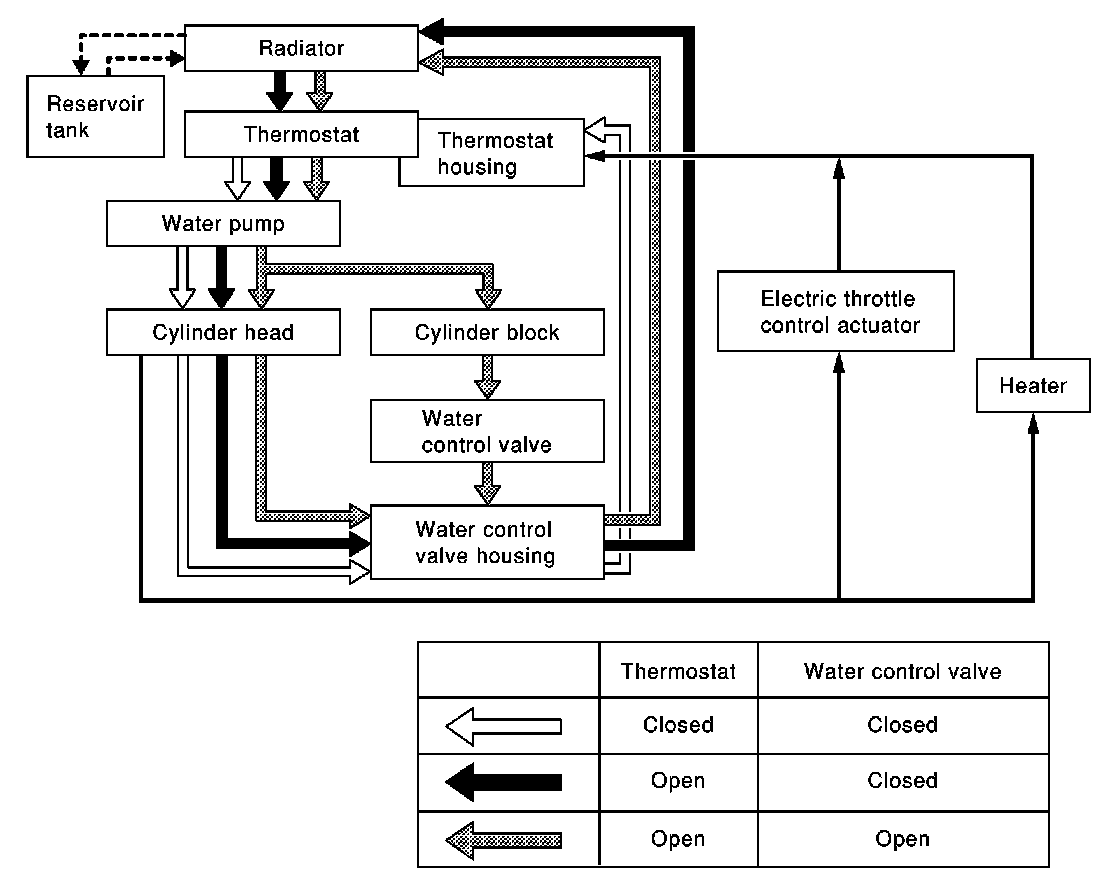

COOLING SYSTEM CIRCUIT (part 2 Of 2):
