Inspection of Actuator Input Signal






INSPECTION OF ACTUATOR INPUT SIGNAL

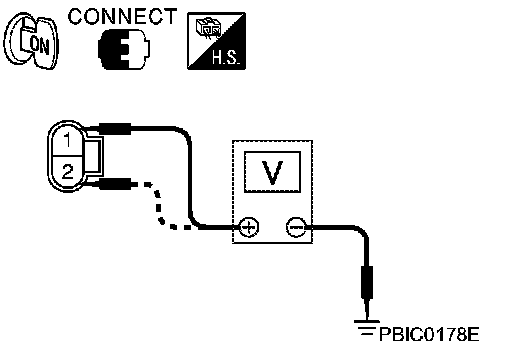

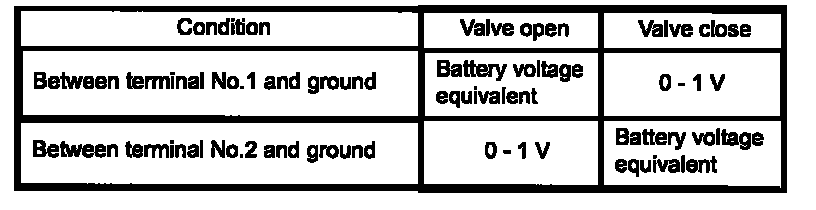

Check voltage between terminals 1 and 2 of actuator connector and ground.
