Cabin Temperature Sensor / Switch: Service and Repair

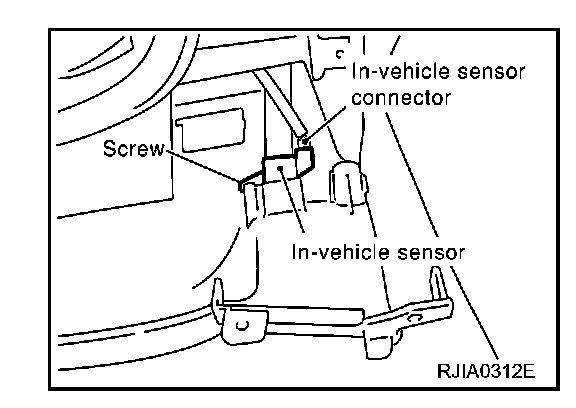

IN-VEHICLE SENSOR

Removal and Installation
Remove instrument lower driver panel.
