Receiver Dryer: Service and Repair

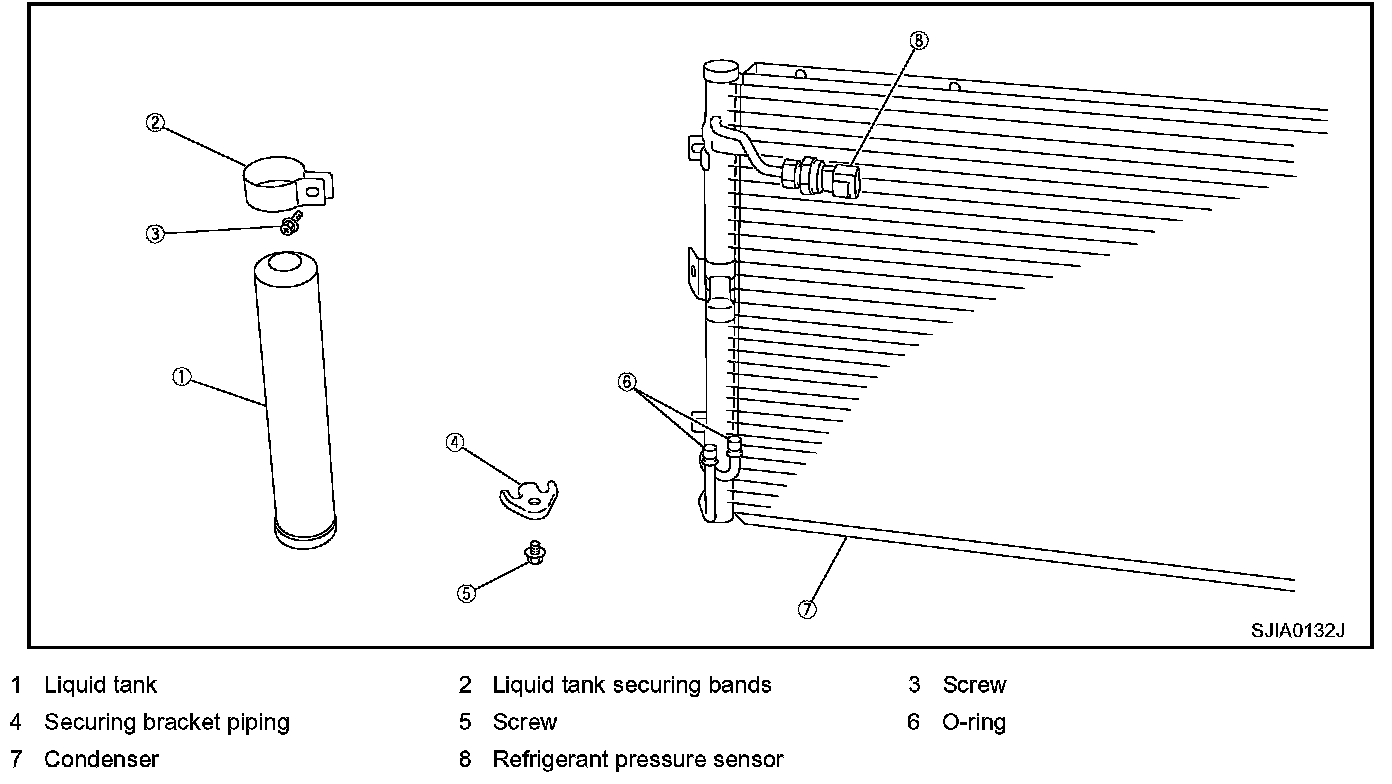

Removing and Installation for Liquid Tank (To be applied after the middle of June 2001.)









REMOVAL
1. Use refrigerant collecting equipment (for HFC134a) to discharge refrigerant.
2. Remove front grille.
3. Unscrew, and remove the securing bracket piping.
4. Unscrew liquid tank securing bands.
5. Pull out the liquid tank and liquid tank securing bands through the top.

INSTALLATION
Installation is the reverse order of removal. Note the following.

CAUTION: Replace refrigerant pressure sensor O-ring with a new one. Apply compressor oil prior to installation.

Securing bracket piping mounting screws
Tightening torque [N-m (kg.m)] : 4 - 5 (0.41 - 0.51)

Liquid tank securing band mounting screw
Tightening torque [N-m (kg.m)] : 2.94 - 3.82 (0.3 - 0.38)
