Solar Sensor: Testing and Inspection

COMPONENT INSPECTION

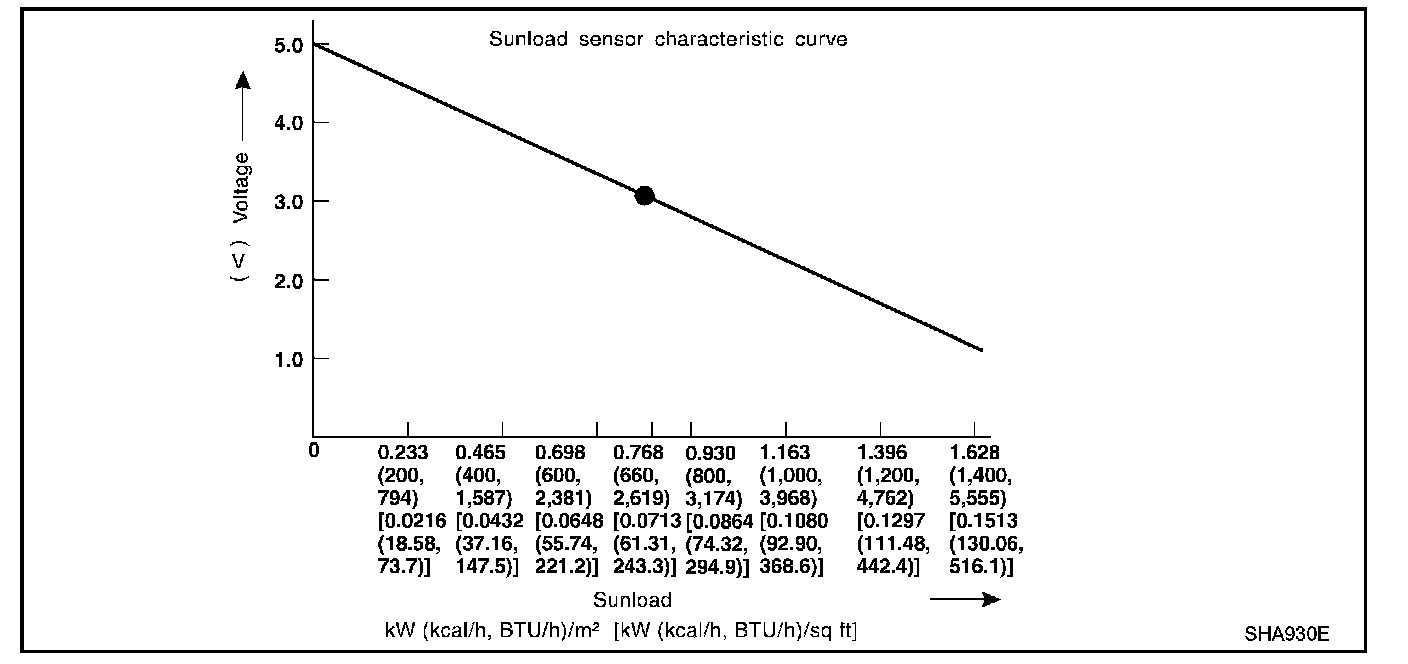

Sunload Sensor

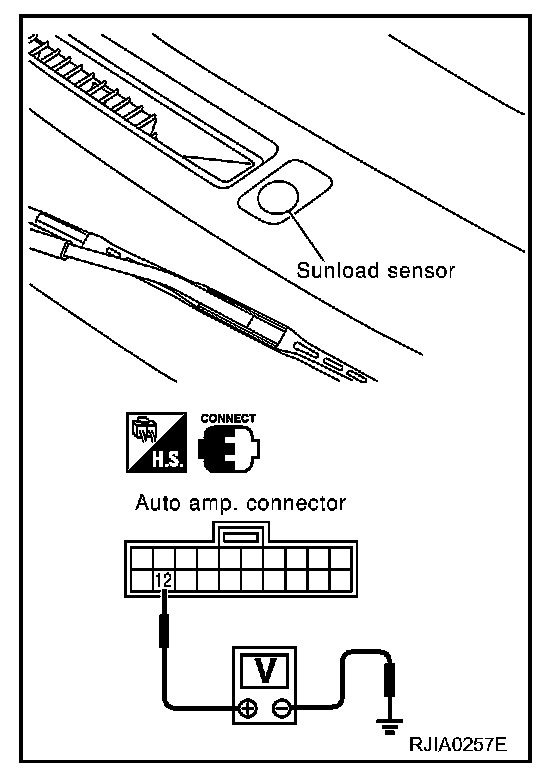

Measure voltage between auto amp. terminal 12 and body ground.

If NG, replace auto amp.

When checking sunload sensor, select a place where sun shines directly on it.
