Cigarette Lighter: Service and Repair

CIGARETTE LIGHTER




Removal and Installation
1. Remove the A/T finisher, refer to "A/T FINISHER".
2. Pull out the cigarette lighter.

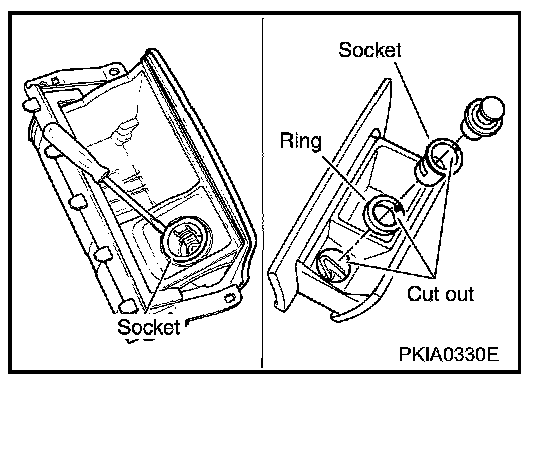

3. Remove socket.
4. Press out ring from the back of ashtray.

FRONT CIGARETTE LIGHTER ILLUMINATION

Removal and Installation




Cigarette Lighter Socket Illumination
1. Remove the instrument panel ashtray.
2. Unfold three notches and remove the bulb socket.

Cigarette lighter illumination : 12 V 1.4 W
