Illumination Switches

Removal and Installation

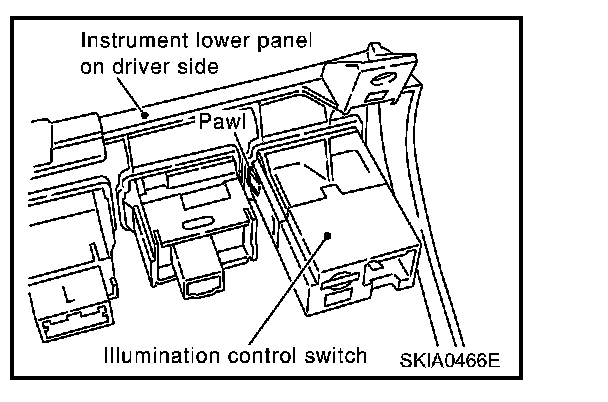

ILLUMINATION CONTROL SWITCH
1. Remove the lower instrument panel (driver side).
2. Press the illumination control switch fixing tabs and remove the unit from the lower instrument panel (driver side).

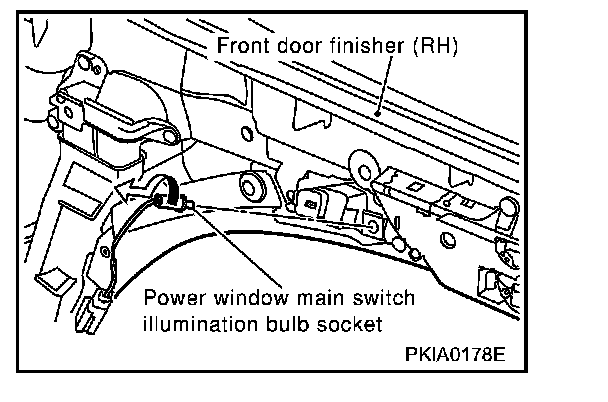

POWER WINDOW MAIN SWITCH ILLUMINATION
1. Remove the front door finisher (RH). Refer to "FRONT DOOR FINISHER".
2. Turn the bulb socket counterclockwise and unlock it.

Power window main switch : 12 V 1.4 W illumination
