DI-WARN
DI-WARN

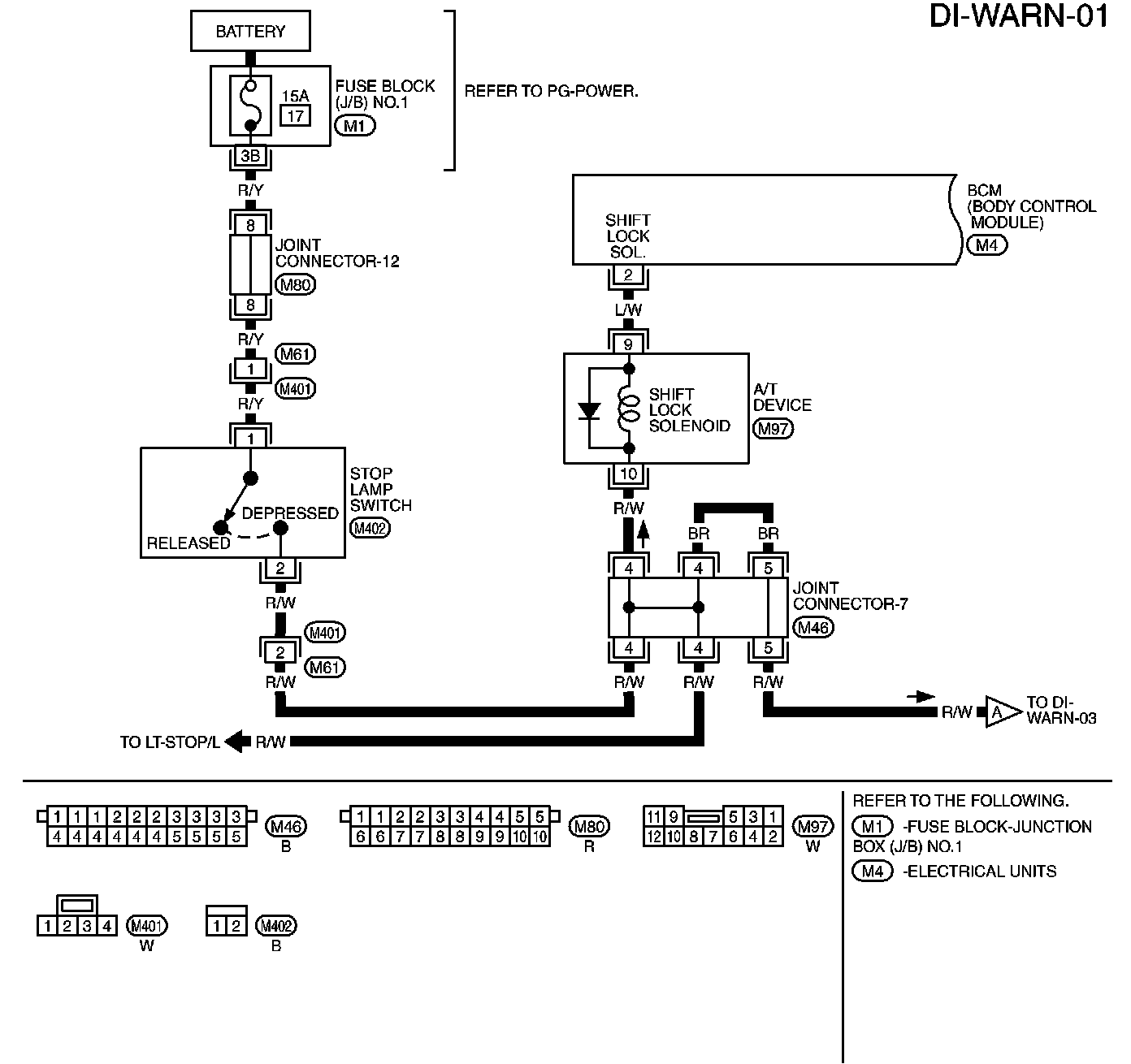

DI-WARN-01:
DI-WARN-02:

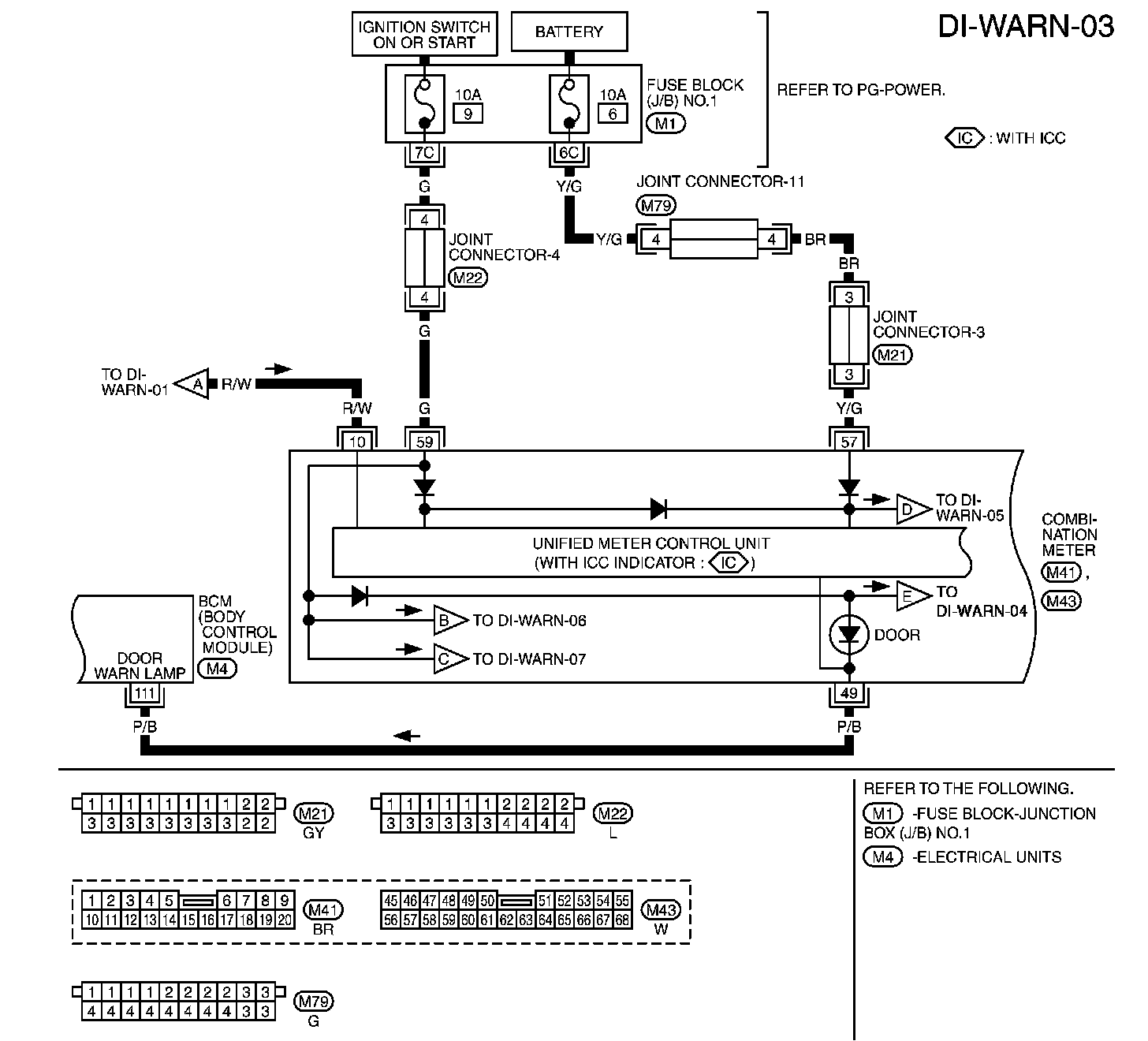

DI-WARN-03:

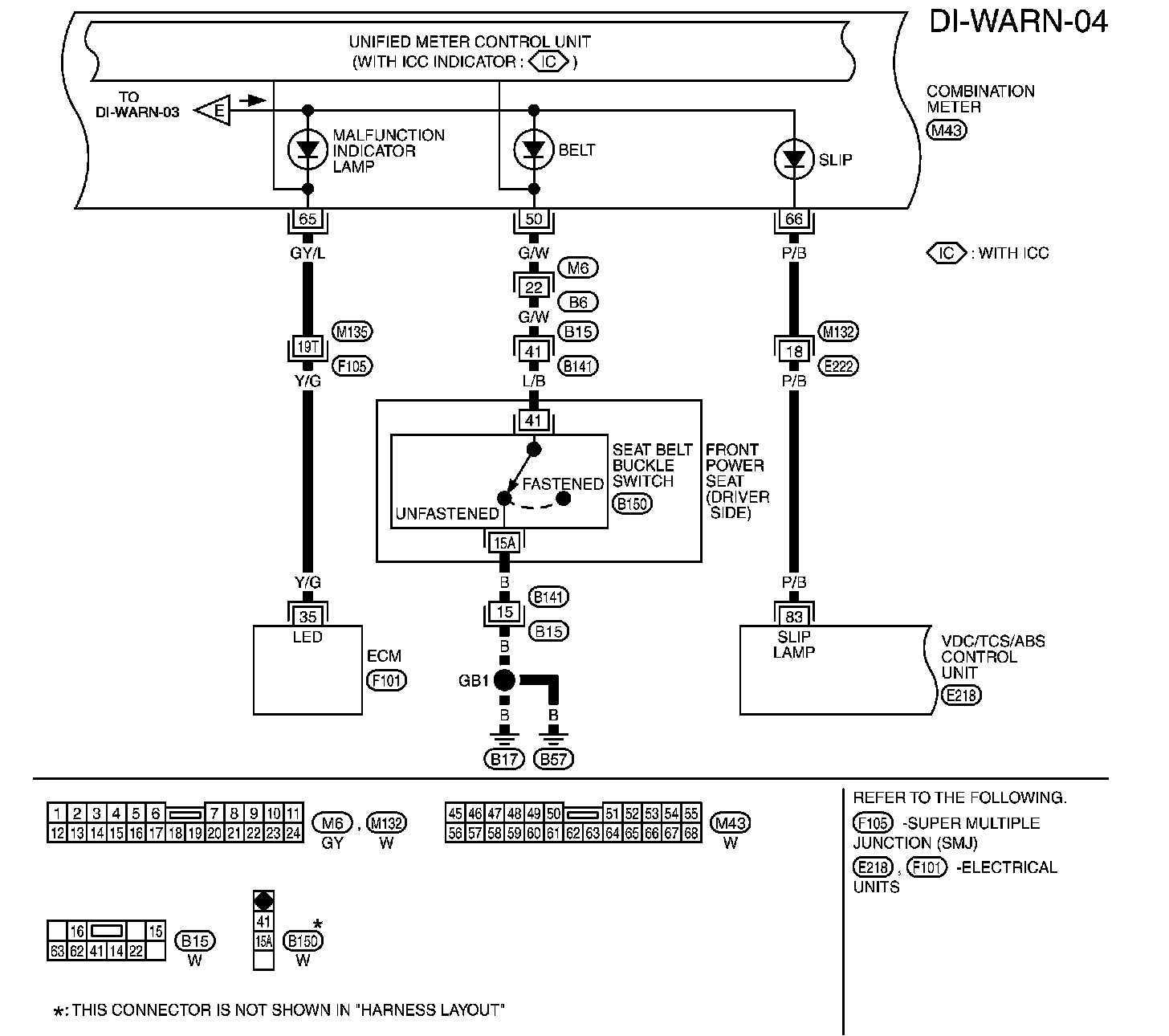

DI-WARN-04:

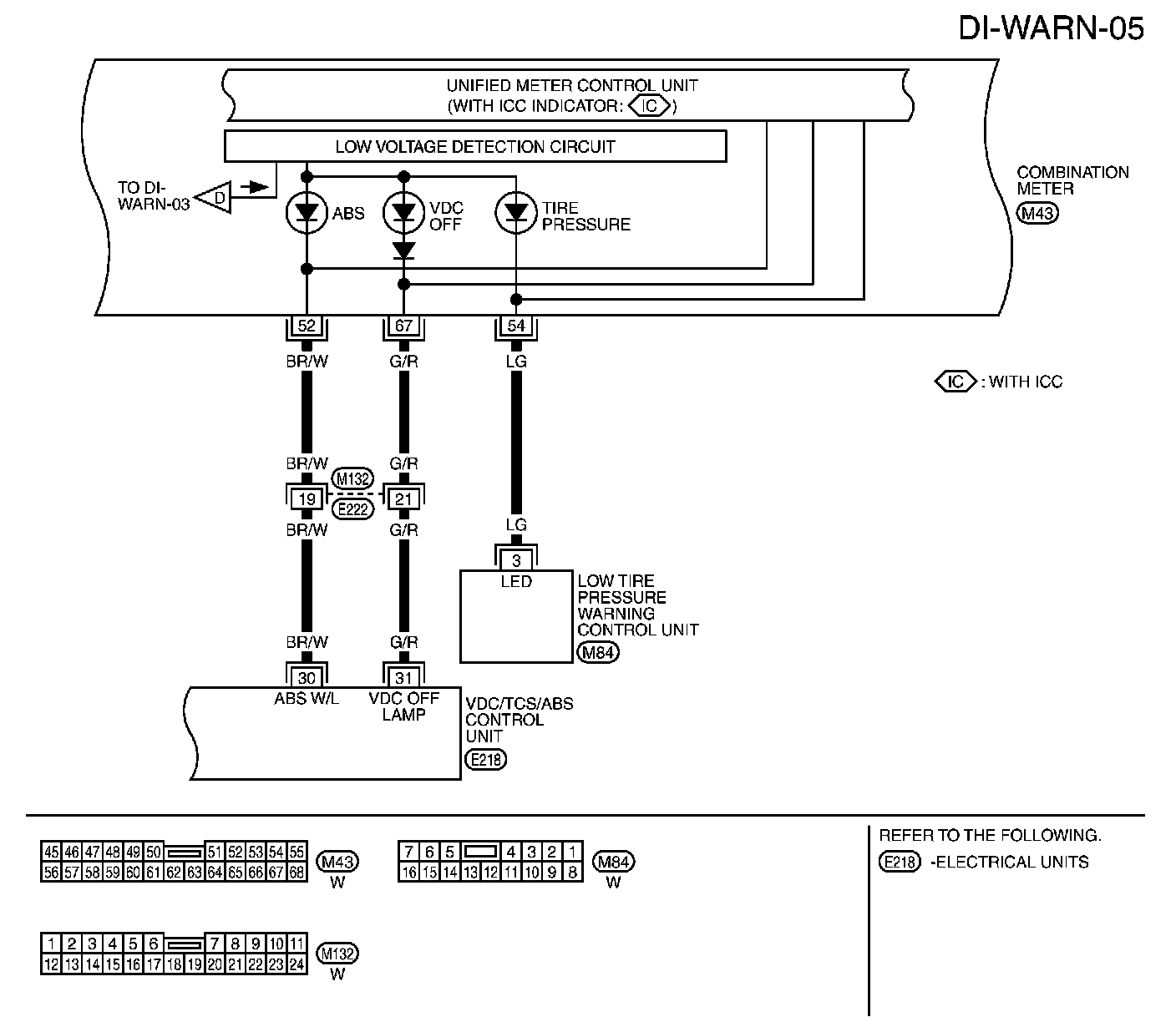

DI-WARN-05:
DI-WARN-06:
DI-WARN-07:
DI-WARN-08:
DI-WARN-09:
