Diode Check

DIODE CHECK

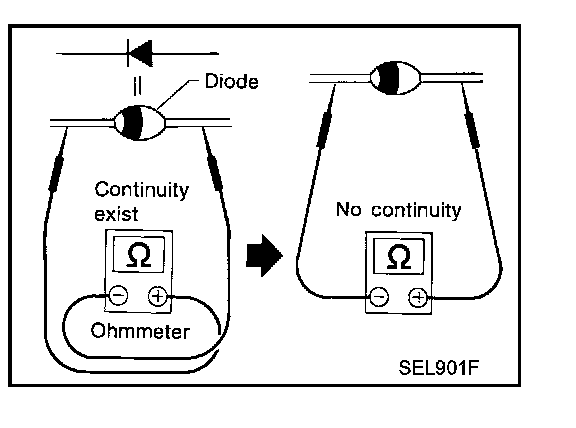

Check continuity using an ohmmeter.

Diode is functioning properly if test results are as shown.

Check diodes at the combination meter harness connector instead of on the combination meter assembly. Refer to the Wiring Diagrams.

NOTE: Specification may vary depending on the type of tester. Before performing this inspection, be sure to refer to the instruction manual for the tester to be used.
