Horn: Service and Repair

Removal and installation

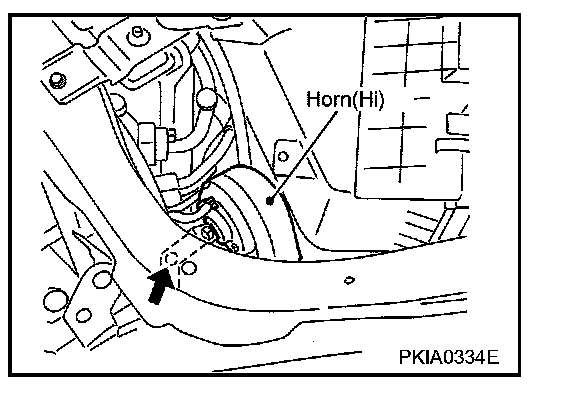

REMOVAL (HORN HI)
1. Remove the mass air flow sensor cover, refer to "ENGINE ROOM COVER" .
2. Disconnect horn connector.
3. Remove horn.

INSTALLATION (HORN HI)
Tighten horn bolt to specified torque.

Horn bolt : 16 - 18 N.m (1.6 - 1.8 kg-m, 12 - 13 ft-lb)

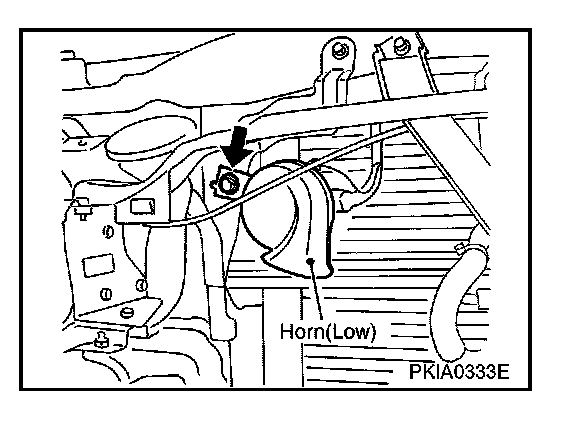

REMOVAL (HORN LOW)
1. Remove the front grille, refer to "FRONT GRILLE" .
2. Disconnect horn connector.
3. Remove horn.

INSTALLATION (HORN LOW)
Tighten horn bolt to specified torque.

Horn bolt : 16 - 18 N.m (1.6 - 1.8 kg-m, 12 - 13 ft-lb)
