Engine Room Harness
Engine Room Harness

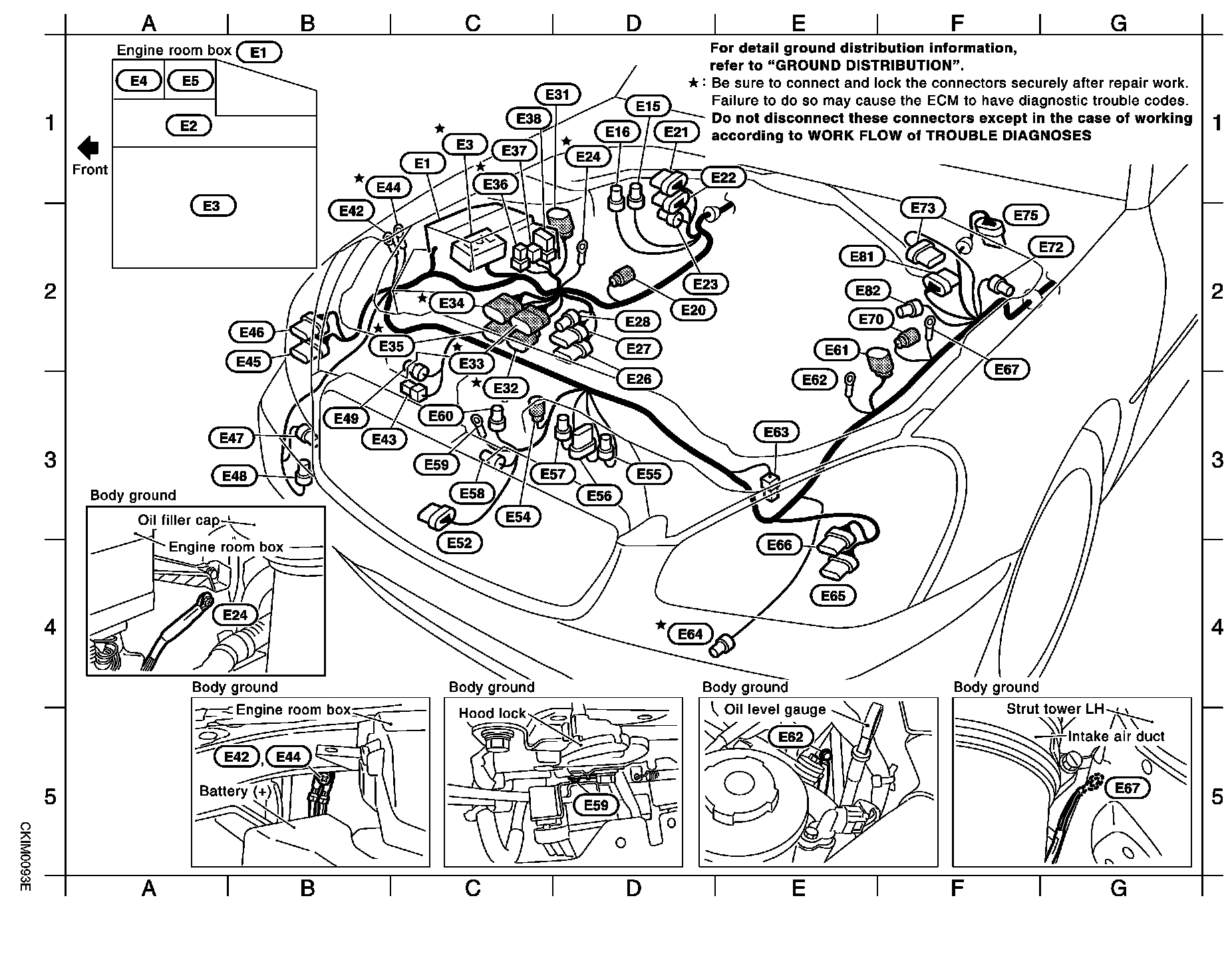

Engine Compartment Part 1:
Engine Compartment Part 2:

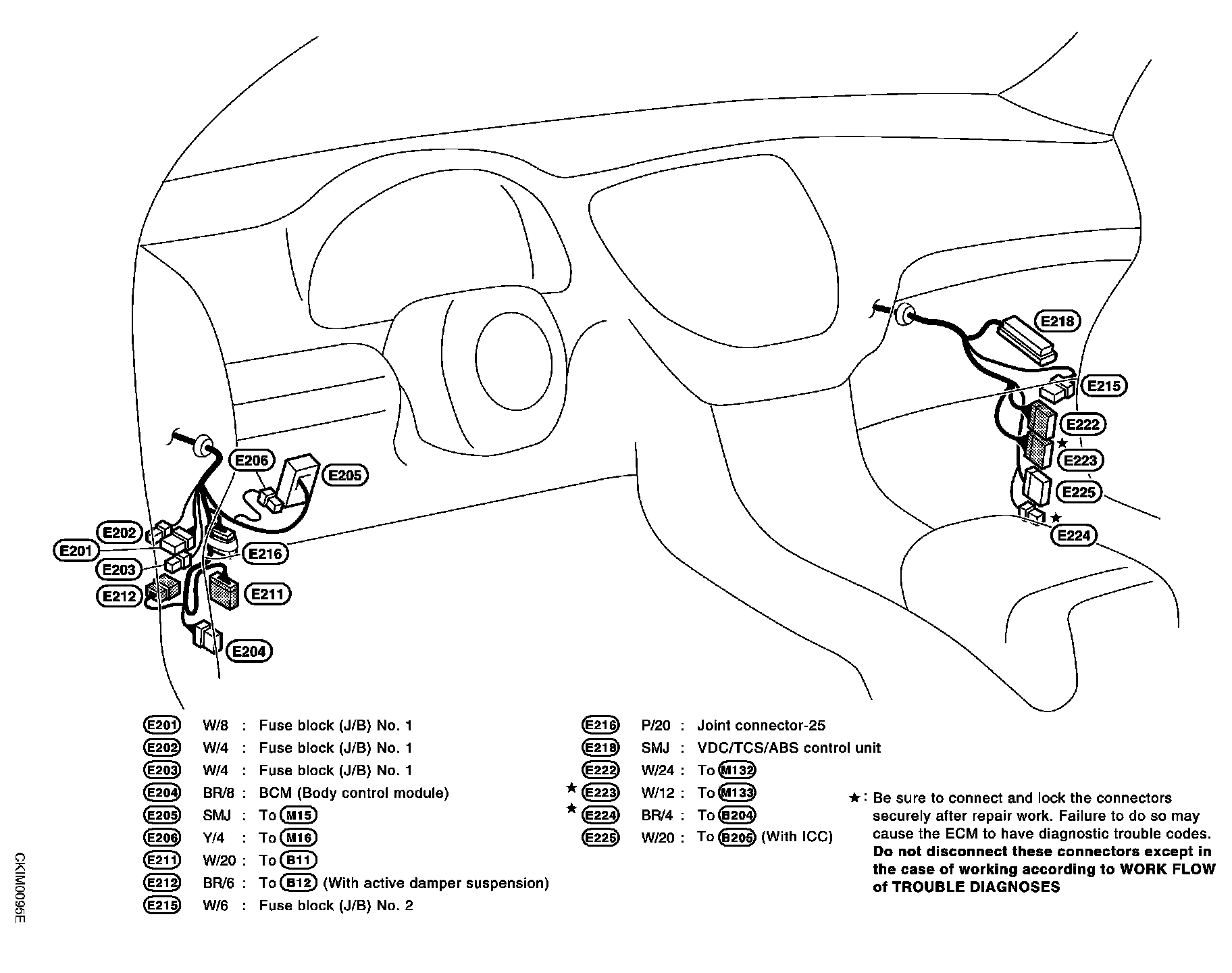

Passenger Compartment:

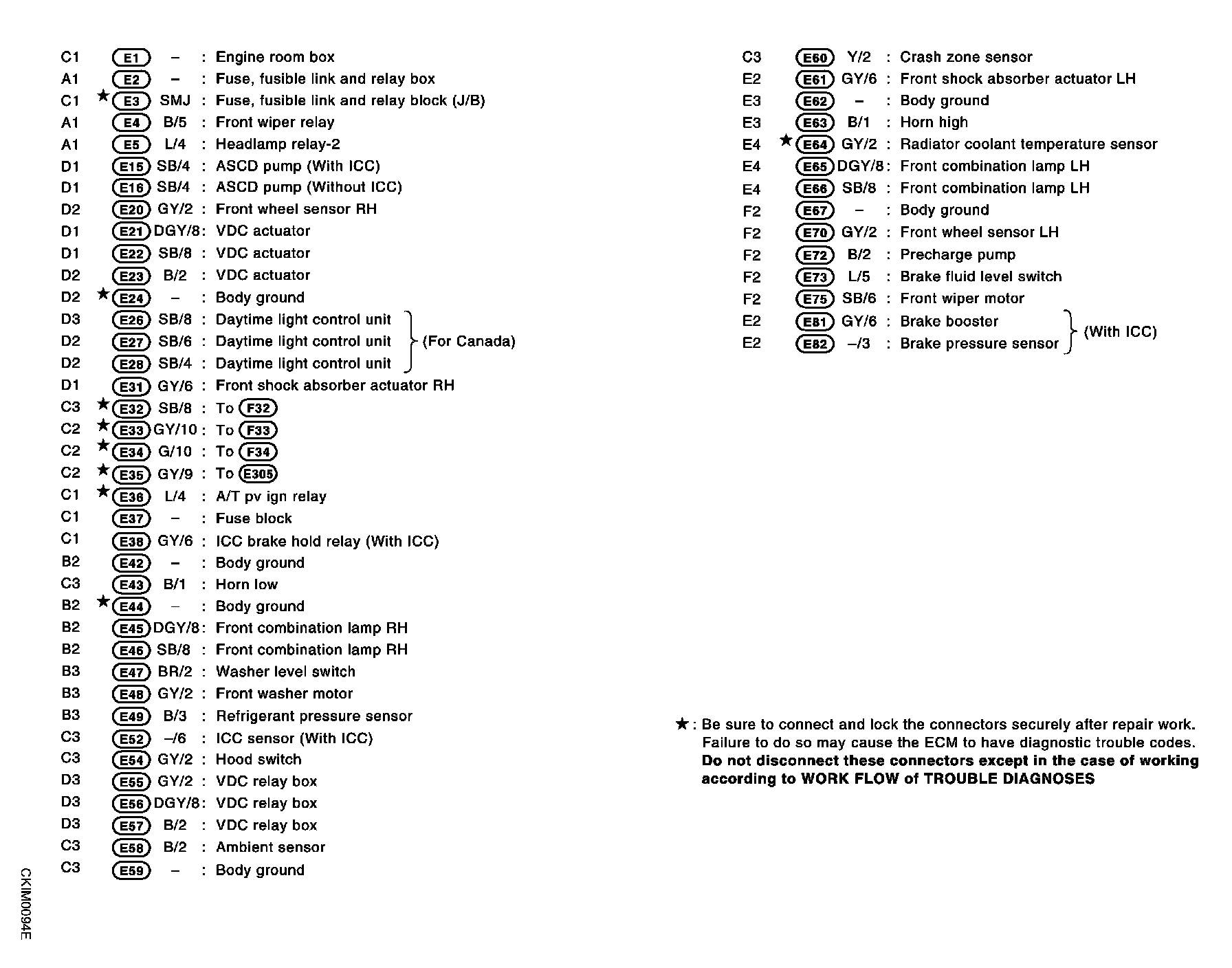

Engine Room Harness - Engine Compartment:
Engine Room Harness - Passenger Compartment:
