Home >> Infiniti >> 2002 >> Q45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Exhaust System >> Active Exhaust System Control Module >> Locations

Active Exhaust System Control Module: Locations

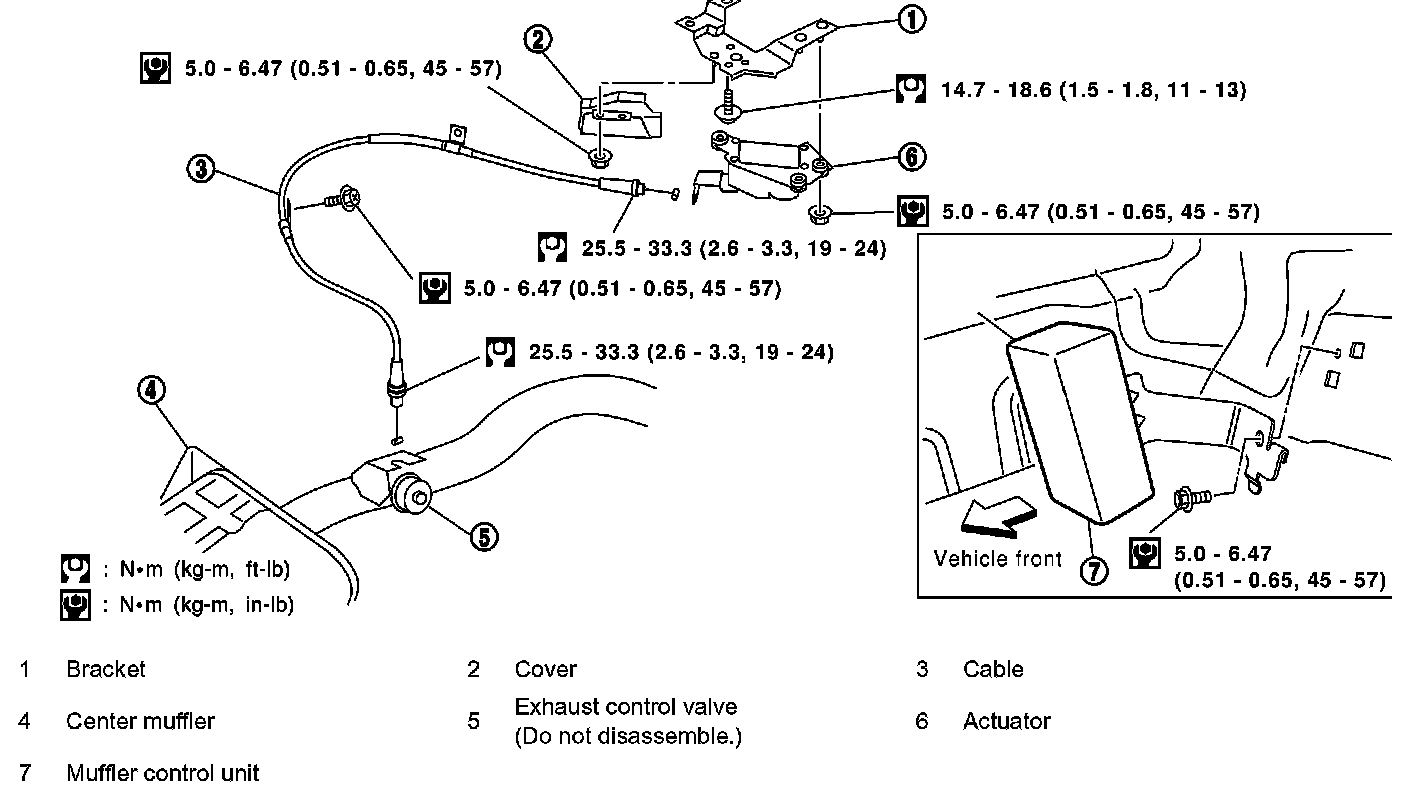

DUAL MODE MUFFLER SYSTEM / Actuator, Exhaust Control Valve, Cable & Muffler Control Unit:
