Connector Views

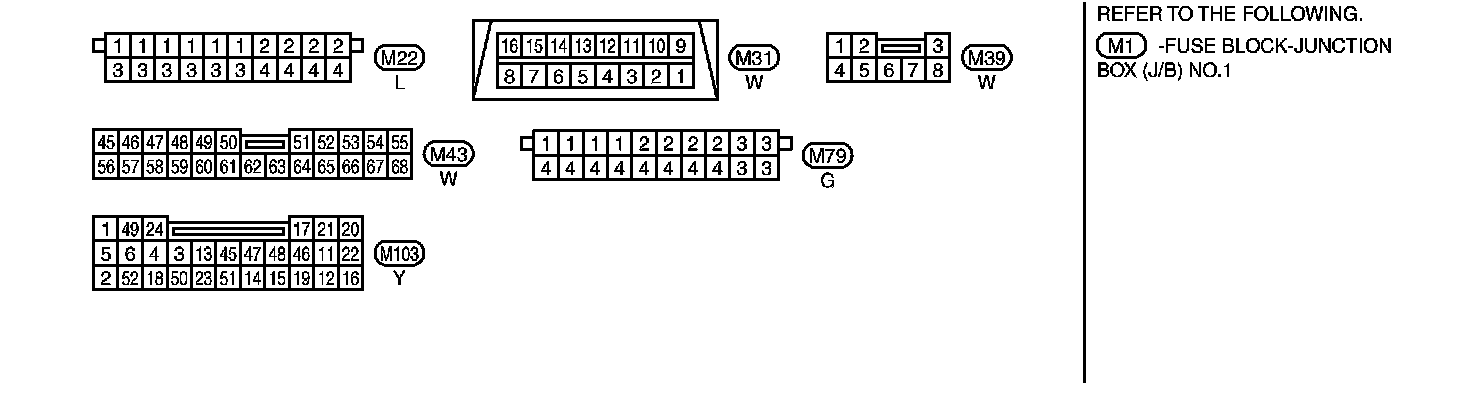

SRS-SRS-01 Connector Views:

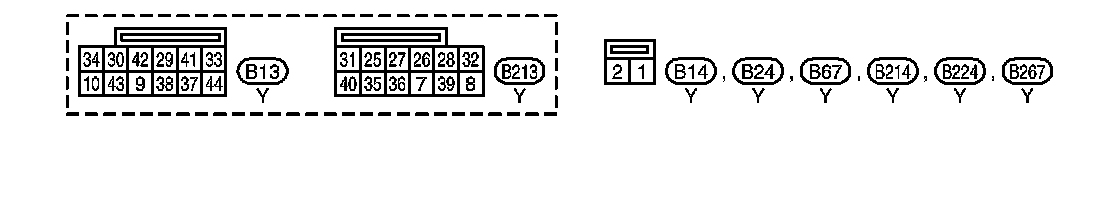

SRS-SRS-02 Connector Views:

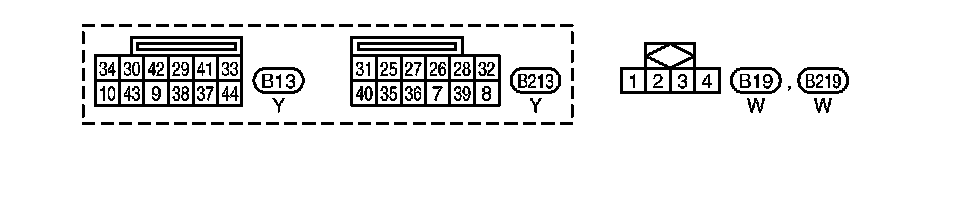

SRS-SRS-03 Connector Views:

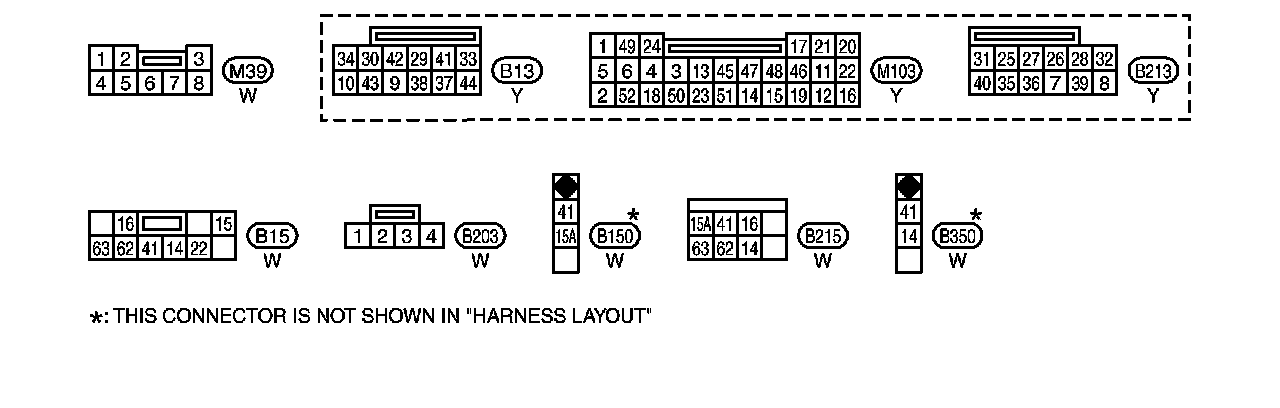

SRS-SRS-04 Connector Views:

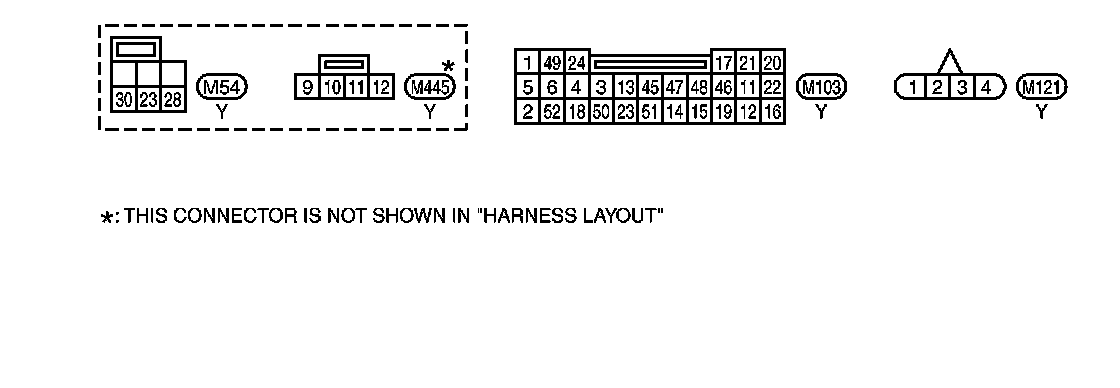

SRS-SRS-05 Connector Views:
SRS-SRS-06 Connector Views:
