Home >> Infiniti >> 2002 >> Q45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Connecting Rod Bearing >> Connecting Rod Bearing - Grade & Selection

Connecting Rod Bearing - Grade & Selection

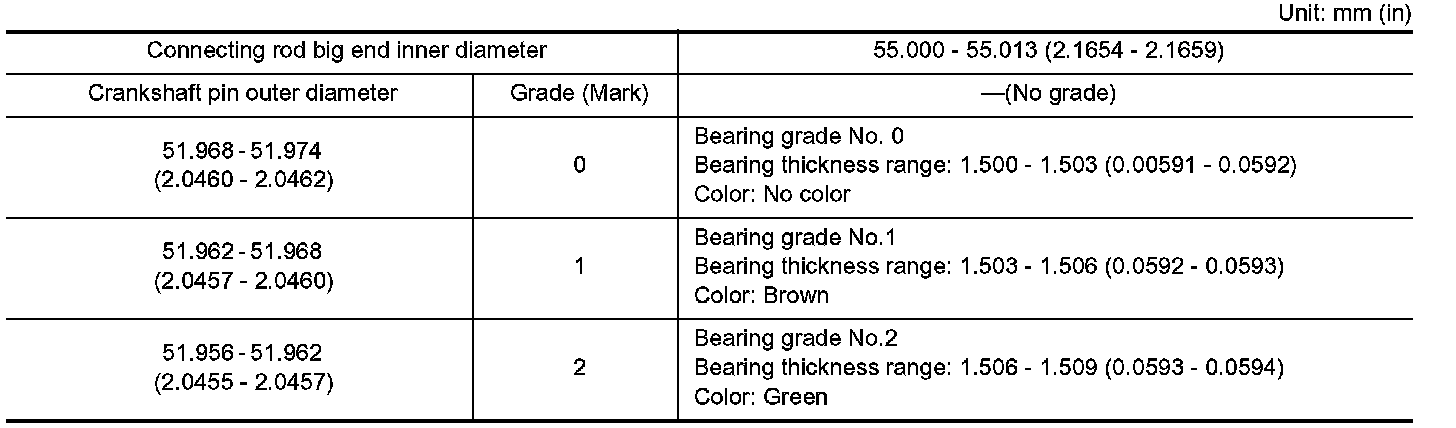

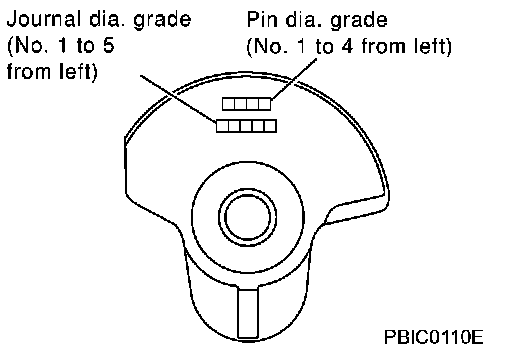

Selection Table of Connecting Rod Bearing:









Bearing Undersize Table:
