Oil Filter, Engine

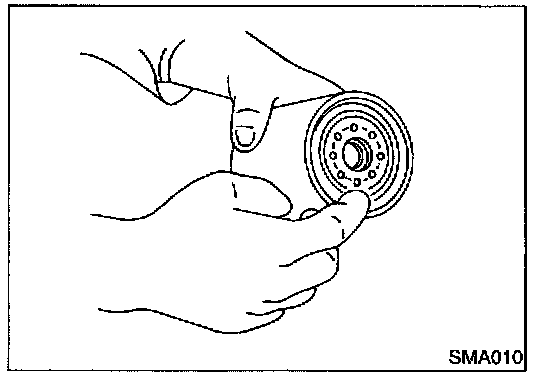

Apply engine oil to the oil seal circumference of the new oil filter.

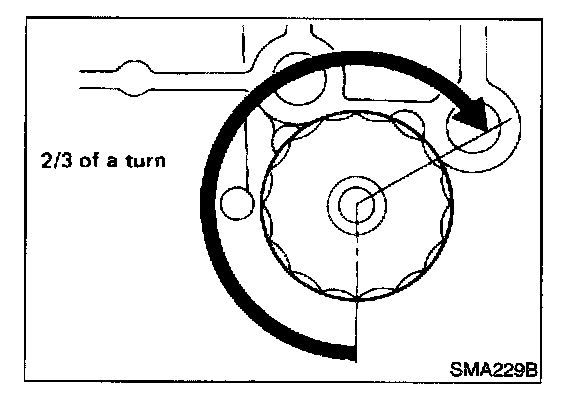

Screw the oil filter manually until it touches the installation surface, then tighten it by 2/3 turn.

Oil filter: 14.7 - 20.5 Nm (1.5 - 2.1 kg-m, 11 - 15 ft. lbs.)
