Exhaust Manifold

EXHAUST MANIFOLD & THREE WAY CATALYST:

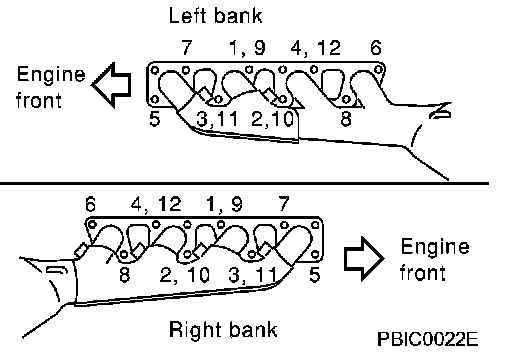

EXHAUST MANIFOLD - TORQUE SEQUENCE:

EXHAUST MANIFOLD 26 - 30 Nm
EXHAUST MANIFOLD COVER 5.1 - 6.4 Nm


Surface Distortion-Standard: 0.3 mm (0.012 in)
