System Specifications
System Specifications

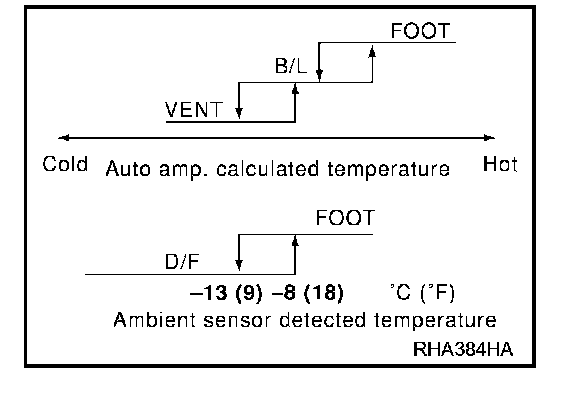

Mode Door Control Specification:
Intake Door Control Specification:

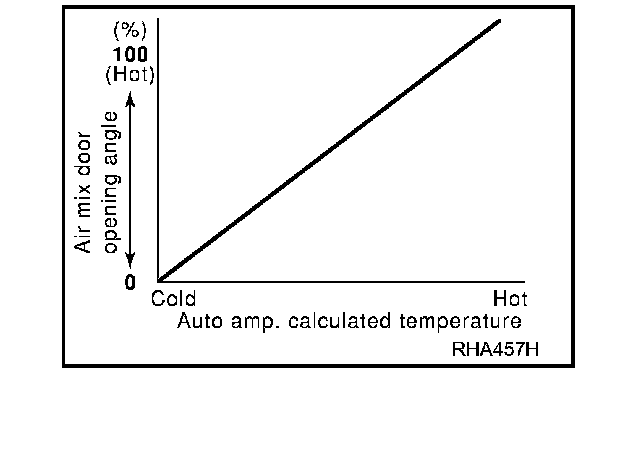

Air Mix Door Control Specification:
