Power and Ground Distribution: Locations

Electrical Units Location.
Use parts code, if applicable, and chassis number to find correct parts number in parts catalog. Parts code are shown in illustration.

NOTE: Parts codes in illustration are those in effect at the time of the first edition. Information might not be maintained in the timely manner. Always confirm correct parts code using appropriate parts catalog.

Engine Compartment:

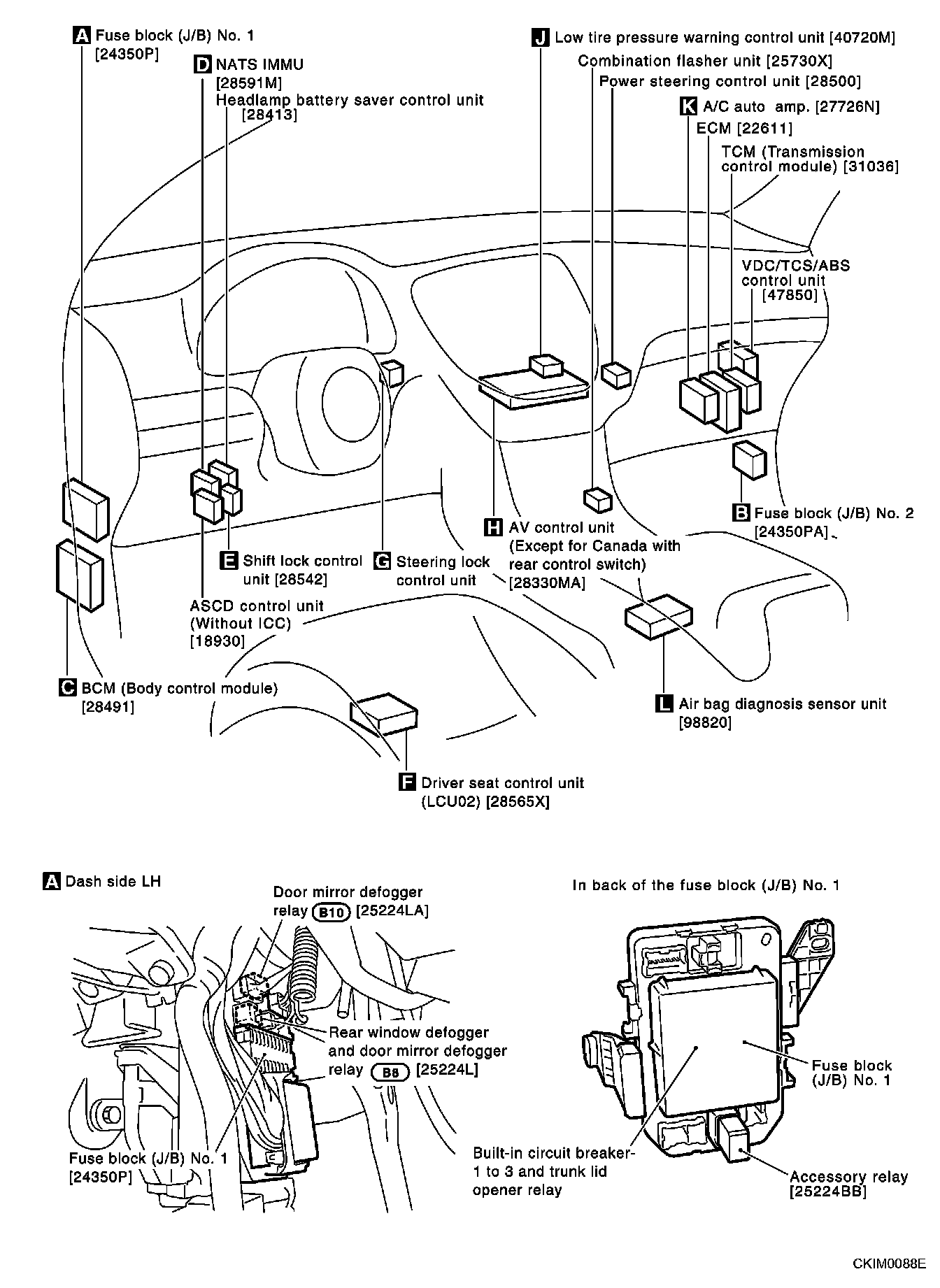

Passenger Compartment Part 1:

Passenger Compartment Part 2:

Passenger Compartment Part 3:

Luggage Compartment:
