Mechanical Specifications
SERVICE DATA
Ring Gear Runout

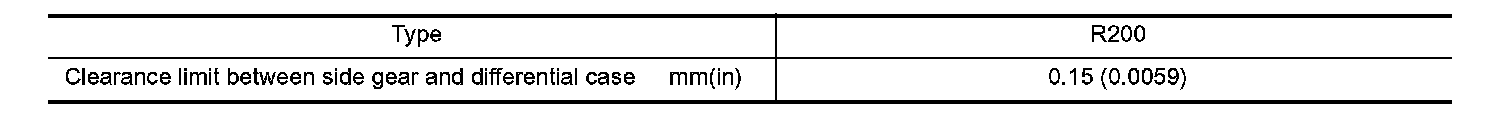

Side Gear Adjustment

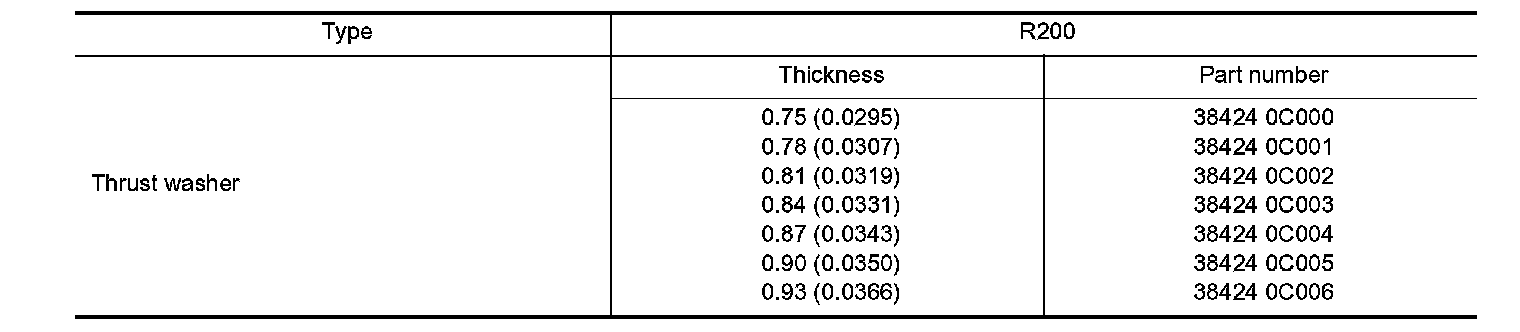

AVAILABLE SIDE GEAR THRUST WASHERS
Drive Pinion Height Adjustment
AVAILABLE PINION HEIGHT ADJUSTING WASHERS

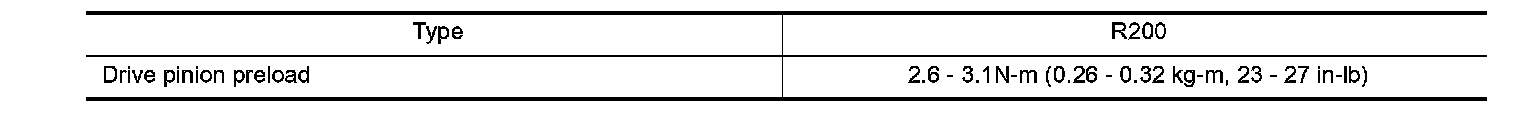

Drive Pinion Preload Adjustment

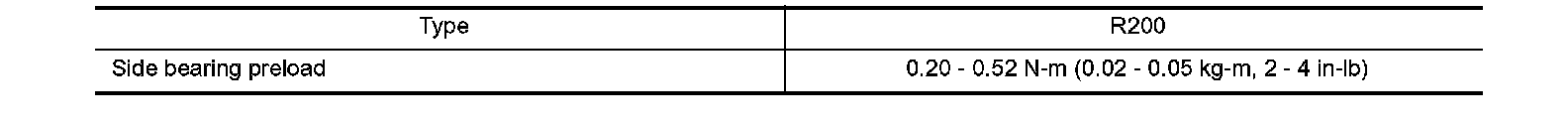

Side Bearing Preload Adjustment
SIDE BEARING PRELOAD ADJUSTING WASHERS

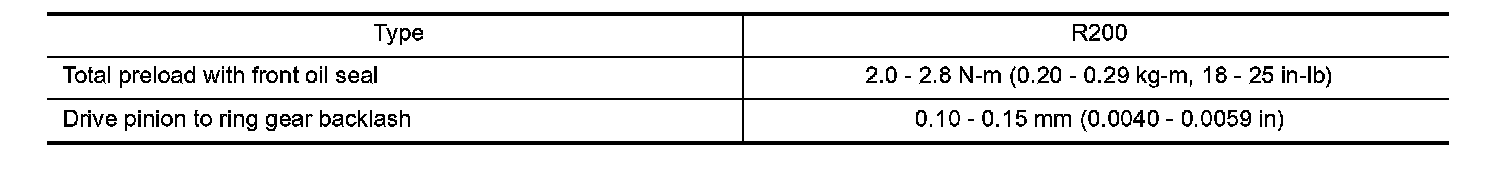

Total Preload Adjustment
