Reading and Clearing Diagnostic Trouble Codes

The functions are executed by combining data received and command transmitted via the communication line from the BCM.

CONSULT-II / Inspection Procedure
1. With the ignition switch OFF, connect CONSULT-II to the data link connector, and turn the ignition switch ON.




2. Touch "START".

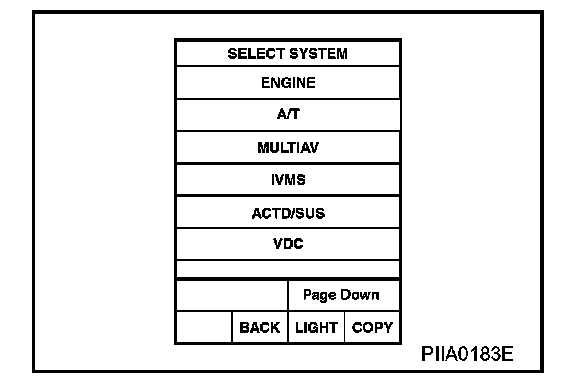

3. Touch "IVMS"on the "SELECT SYSTEM" screen.

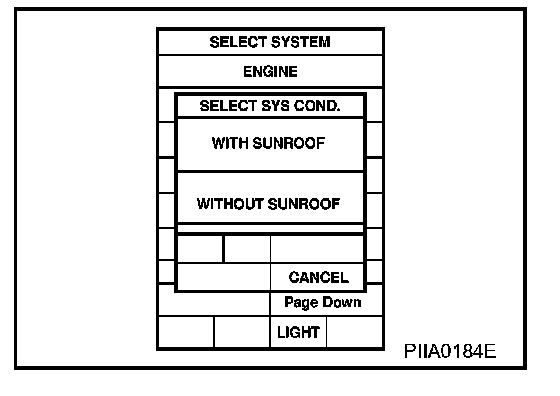

4. Check the model specification, and touch either "WITH SUNROOF" or "WITHOUT SUNROOF" on the "SELECT SYS COND" screen.
5. Touch "OK". If the selection is wrong, touch "CANCEL".
6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
