Pinout Values and Diagnostic Parameters

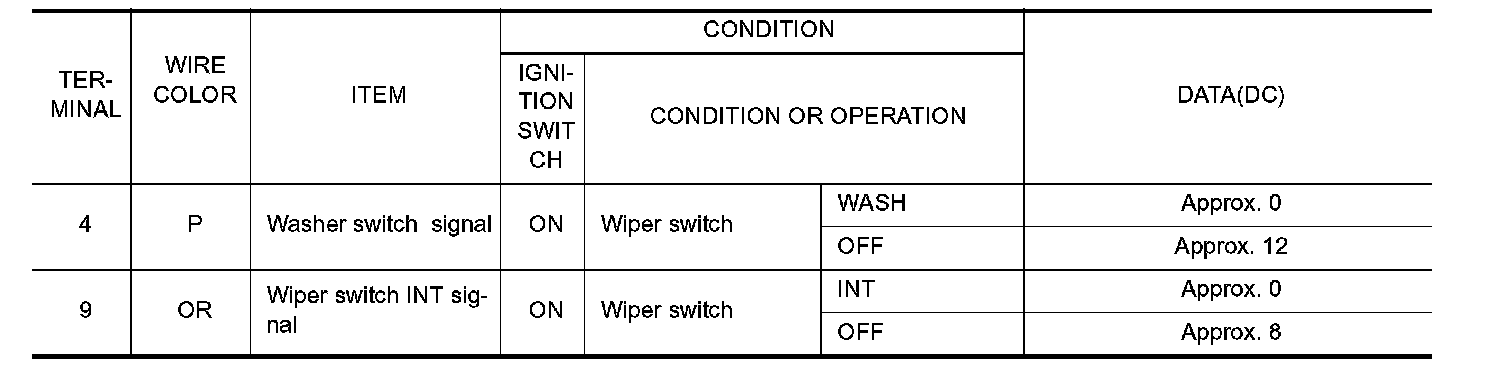

Terminal And Reference Values For BCM Part 1:



Terminal And Reference Values For BCM Part 2:
