DTC P0011 IVT CONTROLSystem Description:

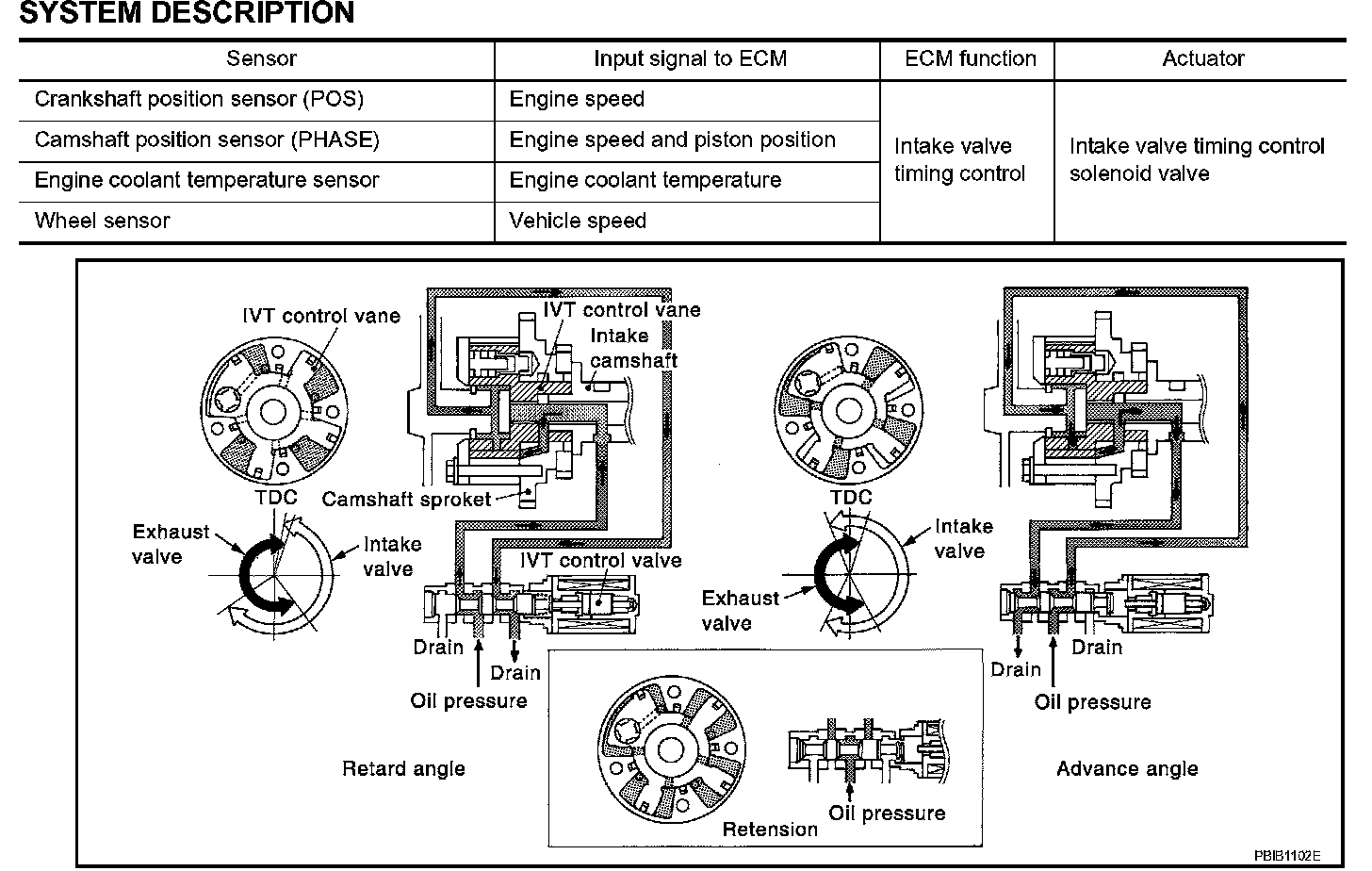

System Description
This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant temperature. Then, the ECM sends ON/OFF pulse duty signals to the camshaft timing control valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to increase engine torque in low/mid speed range and output in high-speed range.
Consult-II Reference Value In Data Monitor Mode:
On Board Diagnosis Logic:

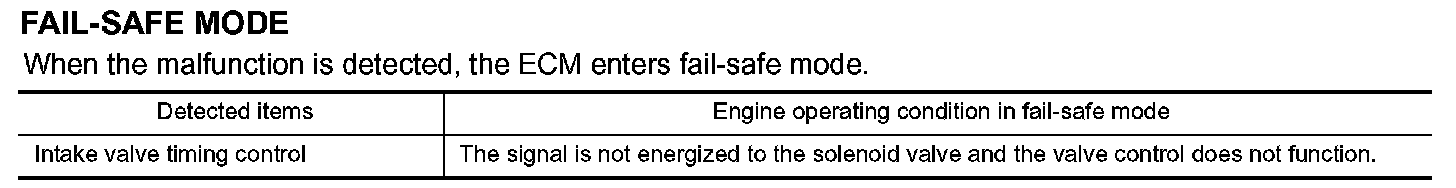

Fail-Safe Mode:
DTC Confirmation Procedure
CAUTION: Always drive at a safe speed.
NOTE:
- If DTC P0011 or P0021 is displayed with DTC P1111 or P1136, first perform trouble diagnosis for "DTC P1111 or P1136".
- If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10 V and 16 V at idle.
WITH CONSULT-II
1. Turn ignition switch "ON" and select "DATA MONITOR" mode with CONSULT-II.
2. Start engine and warm it up to the normal operating temperature.
3. Maintain the conditions for at least 6 consecutive seconds.
Hold the accelerator pedal as steady as possible.
4. Stop vehicle with engine running and let engine idle for 10 seconds.
5. If 1st trip DTC is detected, go to "Diagnostic Procedure".
If 1st trip DTC is not detected, go to next step.
6. Maintain the specified conditions for at least 20 consecutive seconds.
7. If the 1st trip DTC is detected, go to "Diagnostic Procedure".
WITH GST
Follow the procedure "WITH CONSULT-II".
Diagnostic Procedure Step 1 - 4:

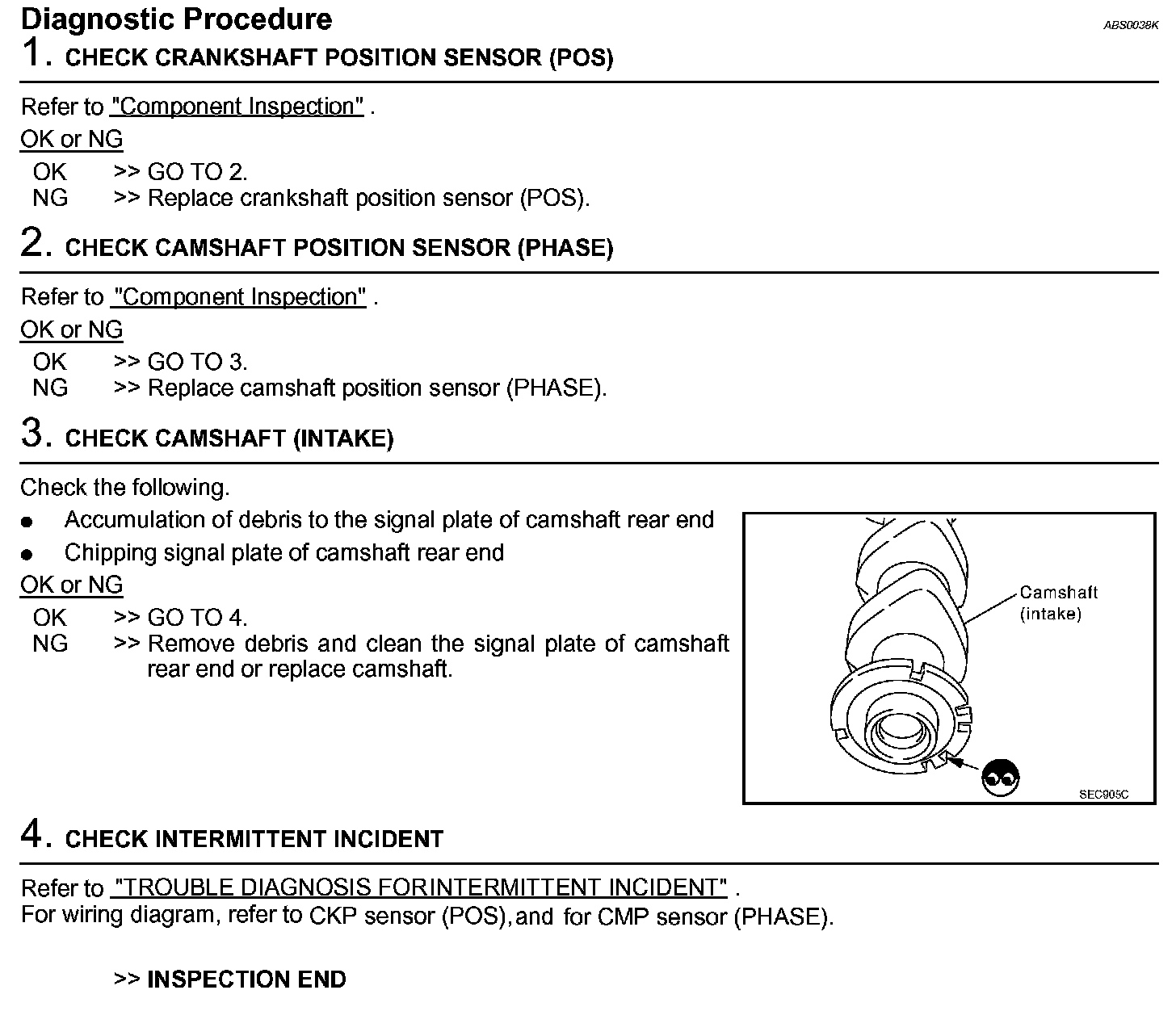

Diagnostic Procedure
