P0605

DTC P0605 ECM

Component Description




The ECM consists of a microcomputer and connectors for signal input and output and for power supply. The ECM controls the engine.

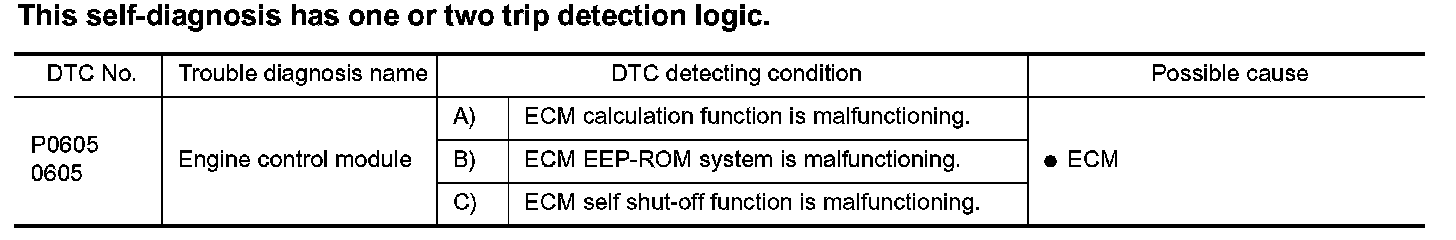

On Board Diagnosis Logic:

Fail-Safe Mode:

DTC Confirmation Procedure
Perform "PROCEDURE FOR MALFUNCTION A" first. If the 1st trip DTC cannot be confirmed, perform "PROCEDURE FOR MALFUNCTION B . If there is no problem on "PROCEDURE FOR MALFUNCTION B , perform "PROCEDURE FOR MALFUNCTION C .

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

PROCEDURE FOR MALFUNCTION A

With CONSULT-II
1. Turn ignition switch "ON".

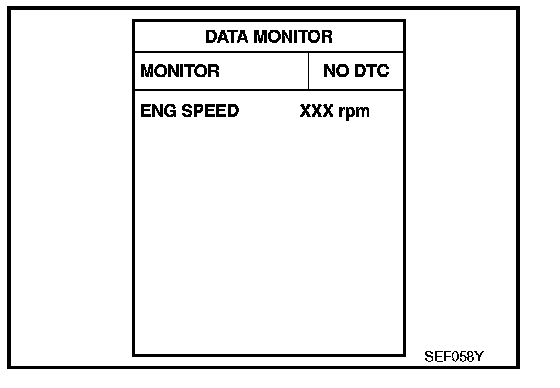

2. Select "DATA MONITOR" mode with CONSULT-II.
3. If 1st trip DTC is detected, go to "Diagnostic Procedure".

With GST
Follow the procedure "With CONSULT-II" above.

PROCEDURE FOR MALFUNCTION B

With CONSULT-II
1. Turn ignition switch "ON" and wait at least 1 second.




2. Select "DATA MONITOR" mode with CONSULT-II.
3. Turn ignition switch "OFF", wait at least 10 seconds, and then turn "ON".
4. If 1st trip DTC is detected, go to Diagnostic Procedure .

With GST
Follow the procedure "With CONSULT-II" above.

PROCEDURE FOR MALFUNCTION C

With CONSULT-II
1. Turn ignition switch "ON" and wait at least 1 second.




2. Select "DATA MONITOR" mode with CONSULT-II.
3. Turn ignition switch "OFF", wait at least 10 seconds, and then turn "ON .
4. Repeat step 3 procedure, 32 times.
5. If 1st trip DTC is detected, go to "Diagnostic Procedure".

With GST
Follow the procedure "With CONSULT-II" above.

Diagnostic Procedure Step 1:

Diagnostic Procedure Step 2:

Diagnostic Procedure
