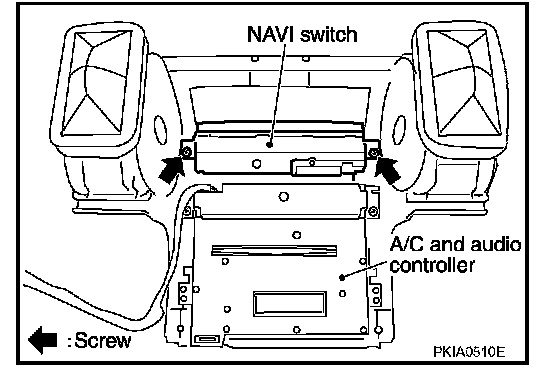

Removal and Installation of NAVI Switch




1. Remove cluster lid C.
2. Remove audio unit and display unit assembly.
3. Remove screws (2) and remove NAVI switch from cluster lid C.
