Removal and Installation For A/C and Audio Controller

REMOVAL




1. Remove audio unit and display unit assembly (with navigation system) from cluster lid C.
2. Remove screws (3) and remove A/C and audio controller.

INSTALLATION
Install in the reverse order of removal.

Disassembly And Assembly Of A/C And Audio Controller:

Disassembly and Assembly of A/C and Audio Controller

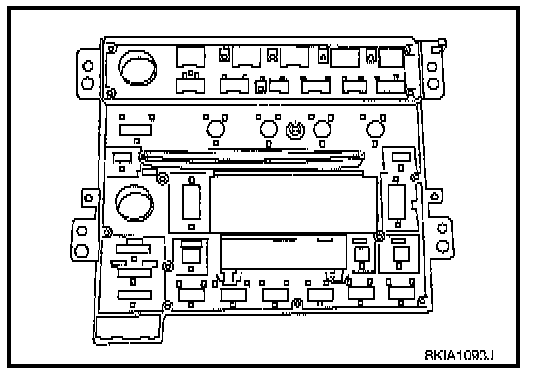

1. Remove screws (12) and remove printed circuit board.

CAUTION:: Be sure not to damage printed circuit board by exposure




2. Remove switches from back surface of switch panel using.
