Precaution For Harness Repair
Precaution for Harness RepairCAN SYSTEM

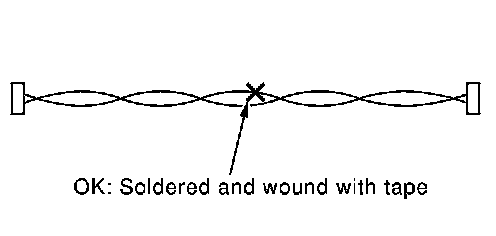

^ Area to be repaired shall be soldered, and wrapped with a tape (be sure that fraying of twisted wire shall be within 110 mm 4.33 inch)).
^ Do not make a bypass connection to repaired area. (If it is done, branch part will be removed and characteristics of twisted wire will be lost.)
