Passenger Compartment

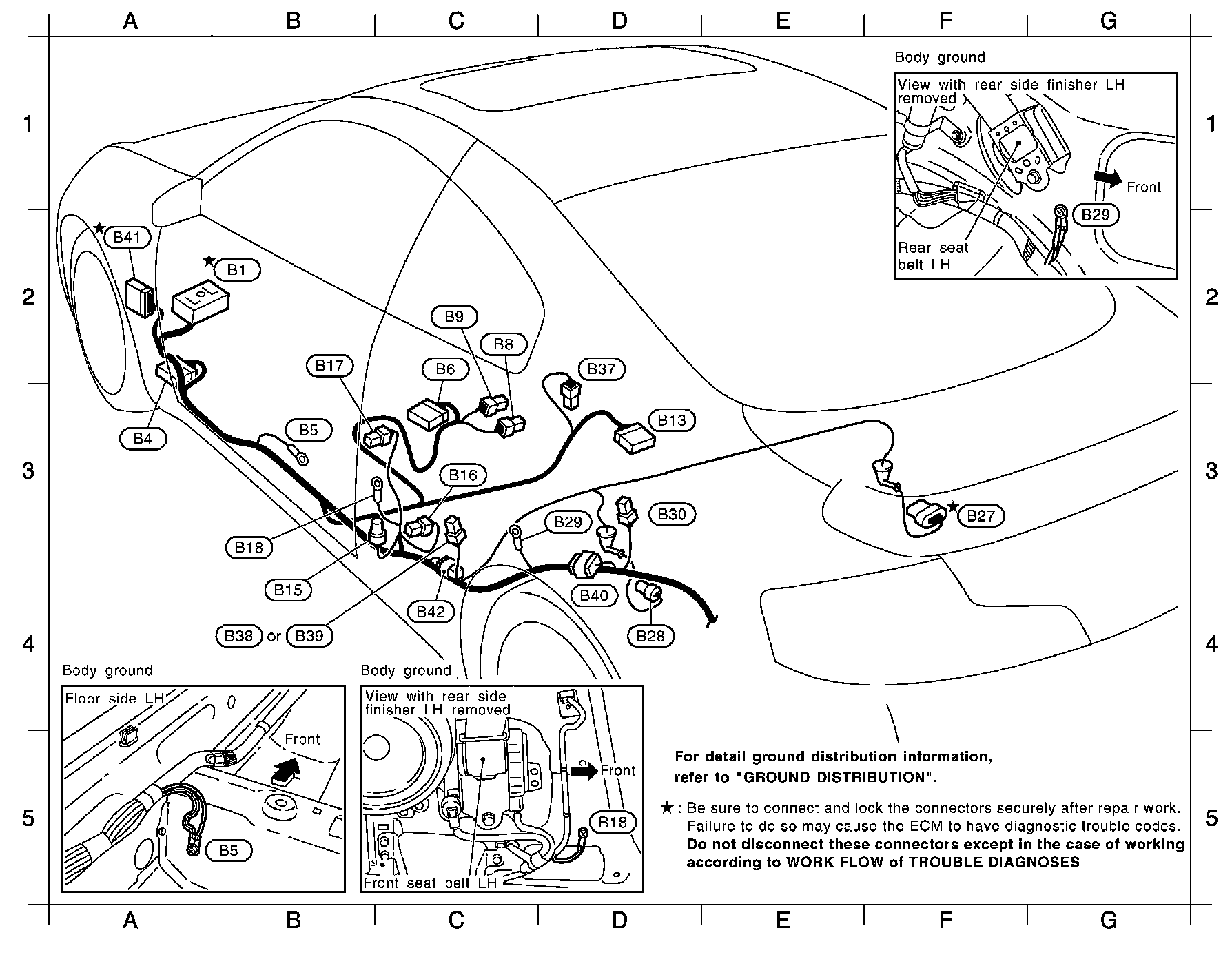

Body Harness - Passenger Compartment:



Body Harness - Passenger Compartment Part 2:
