Home >> Infiniti >> 2003 >> G35 Coupe V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> Schematic

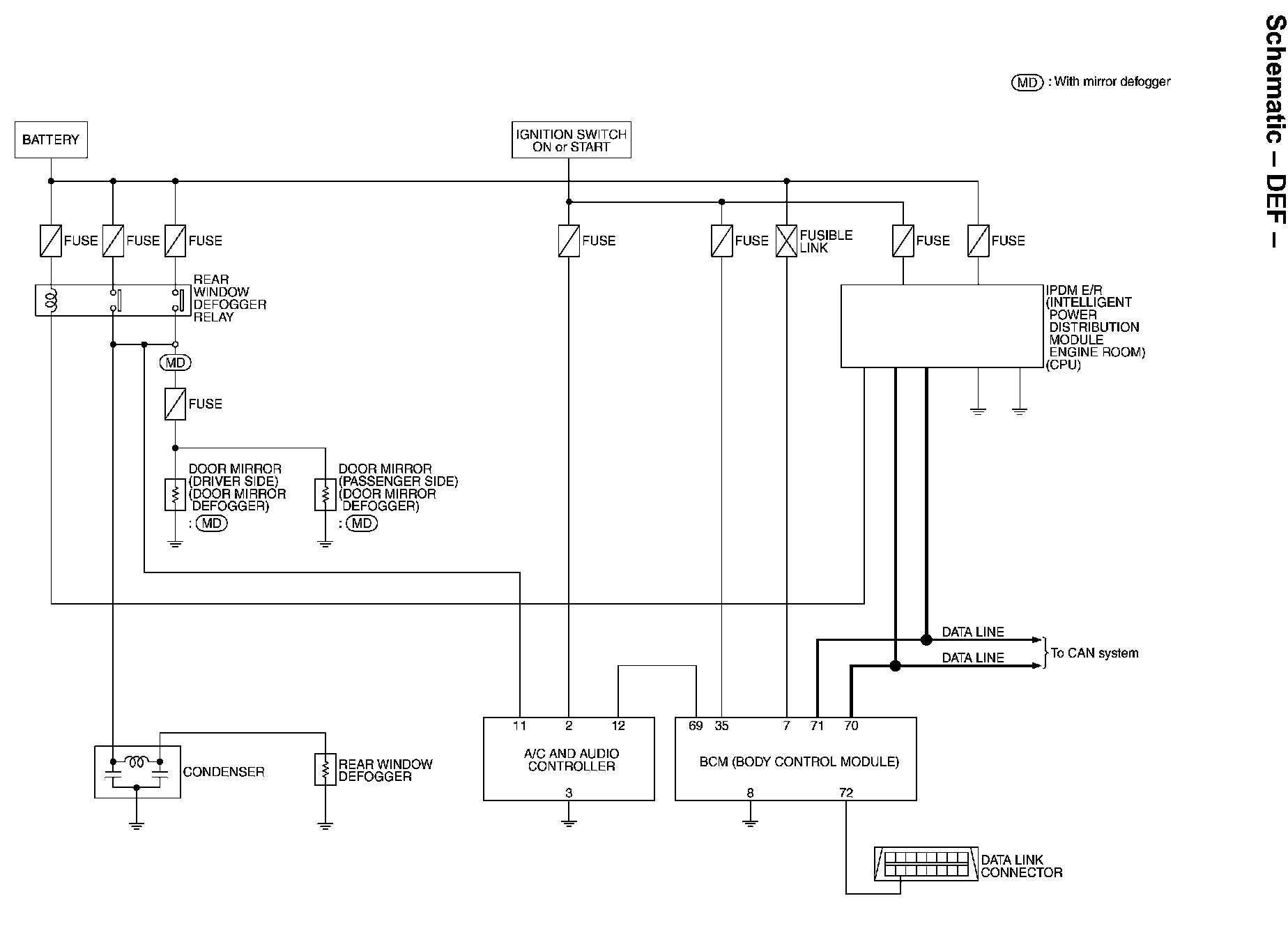

Schematic

Schematic - DEF:
