AV-AUDIO

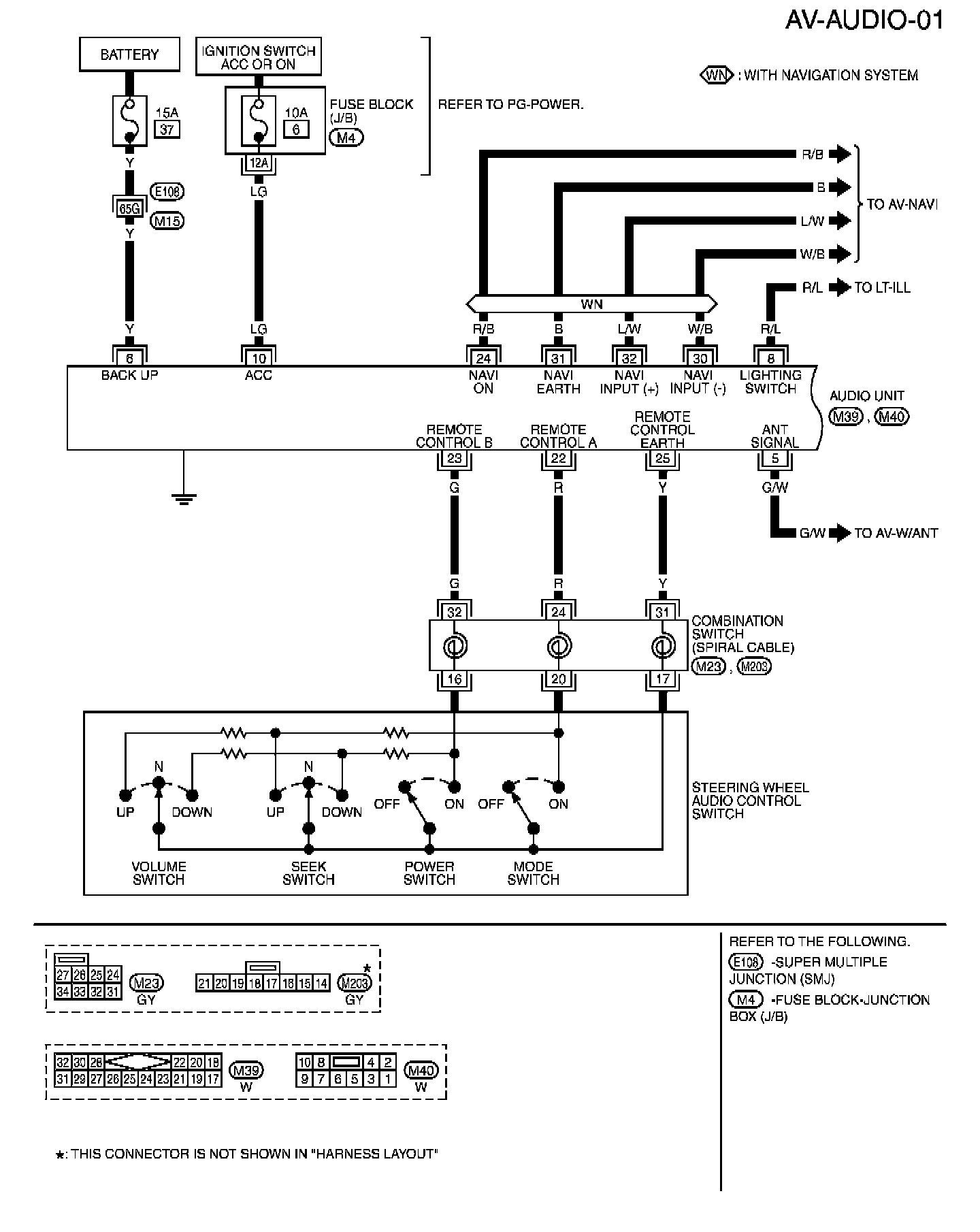

AV-AUDIO-01:

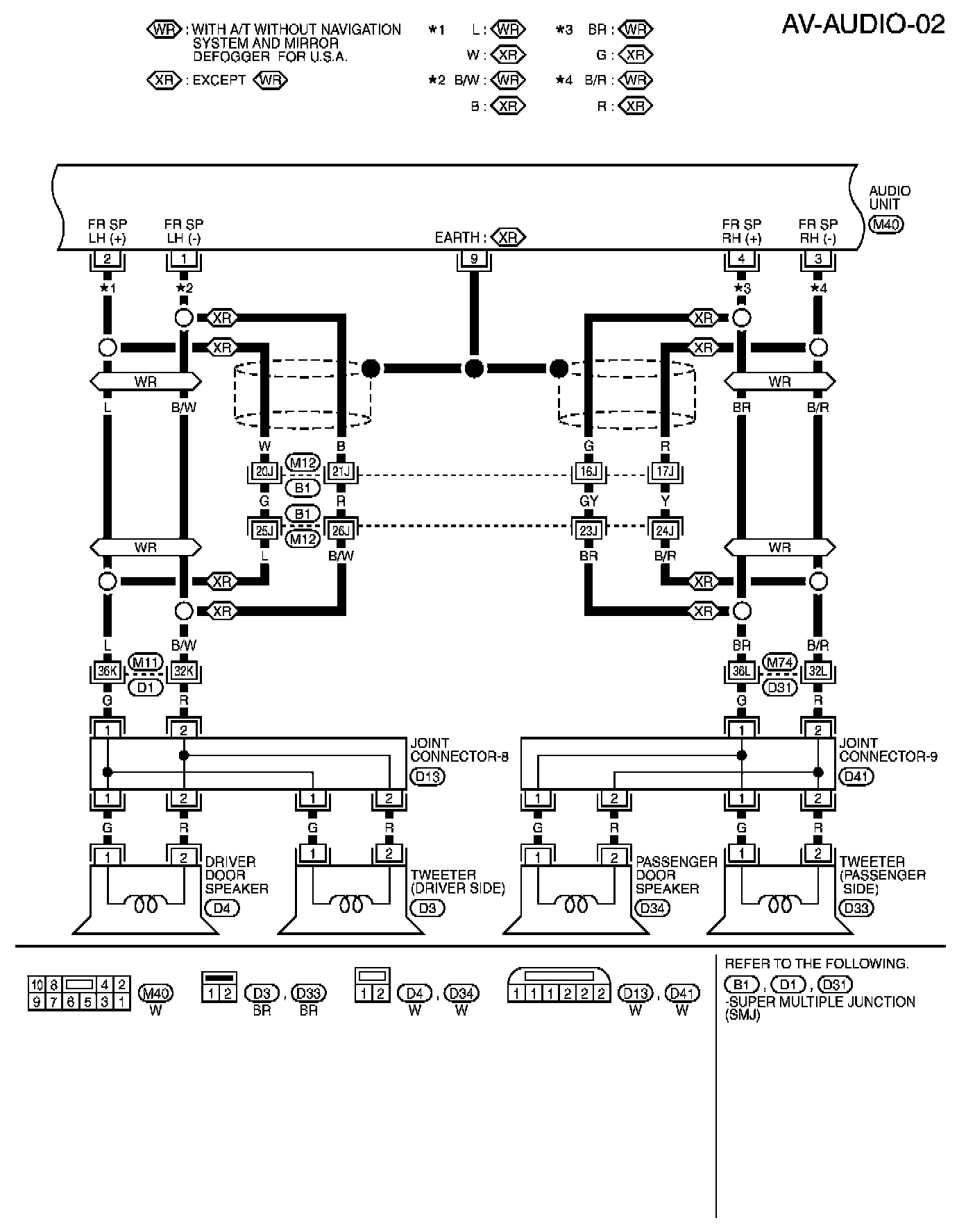

AV-AUDIO-02:

AV-AUDIO-03:

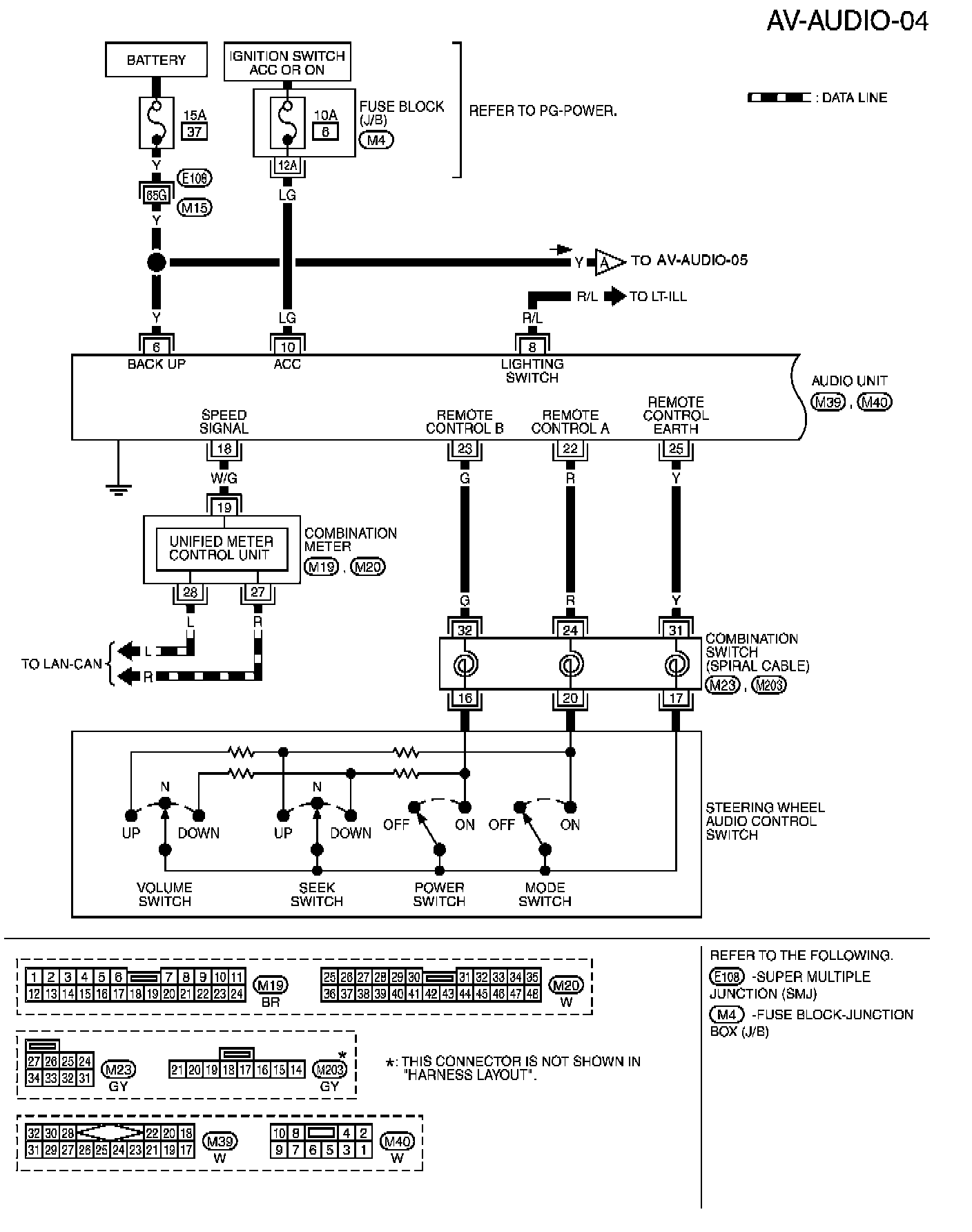

AV-AUDIO-04:

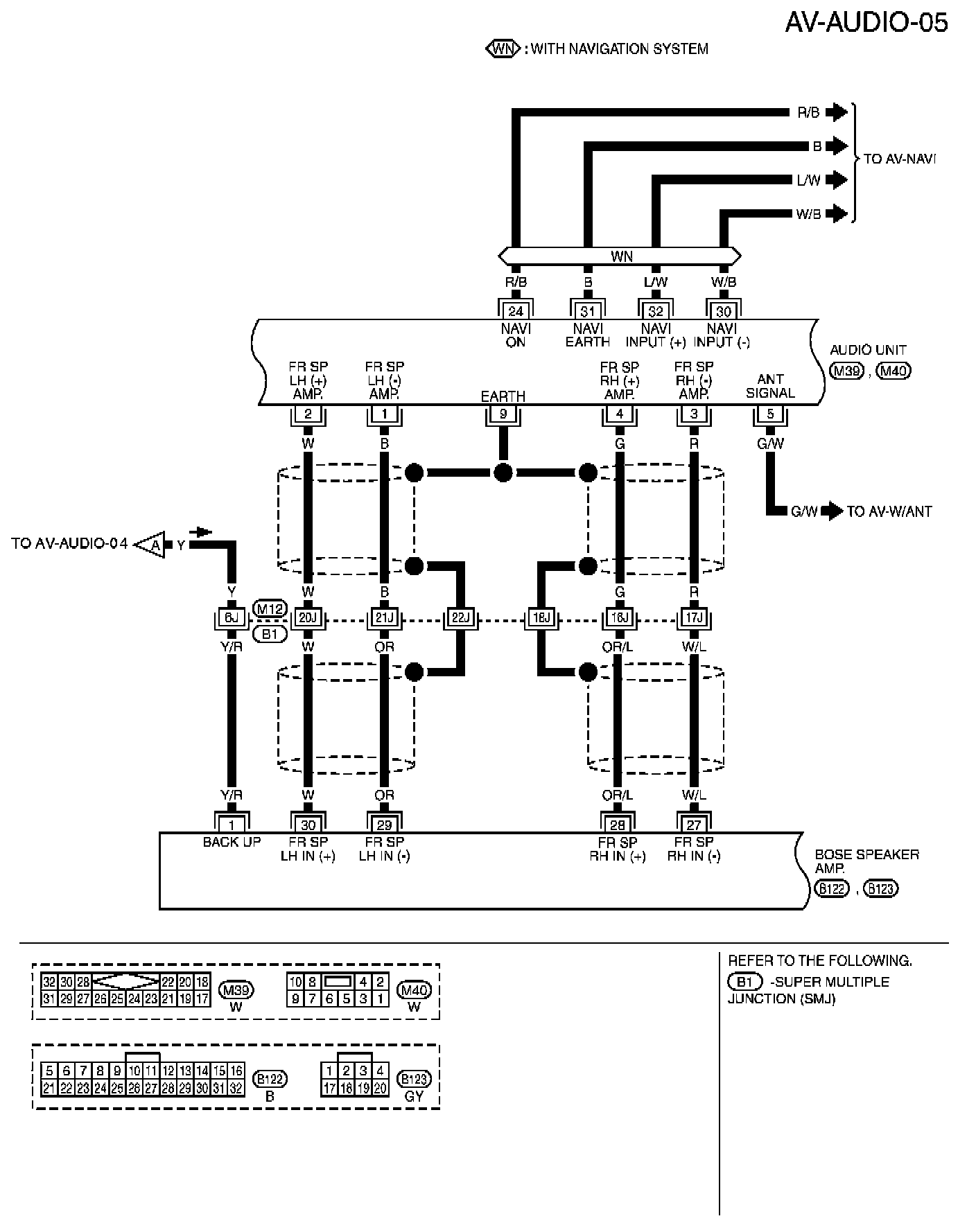

AV-AUDIO-05:

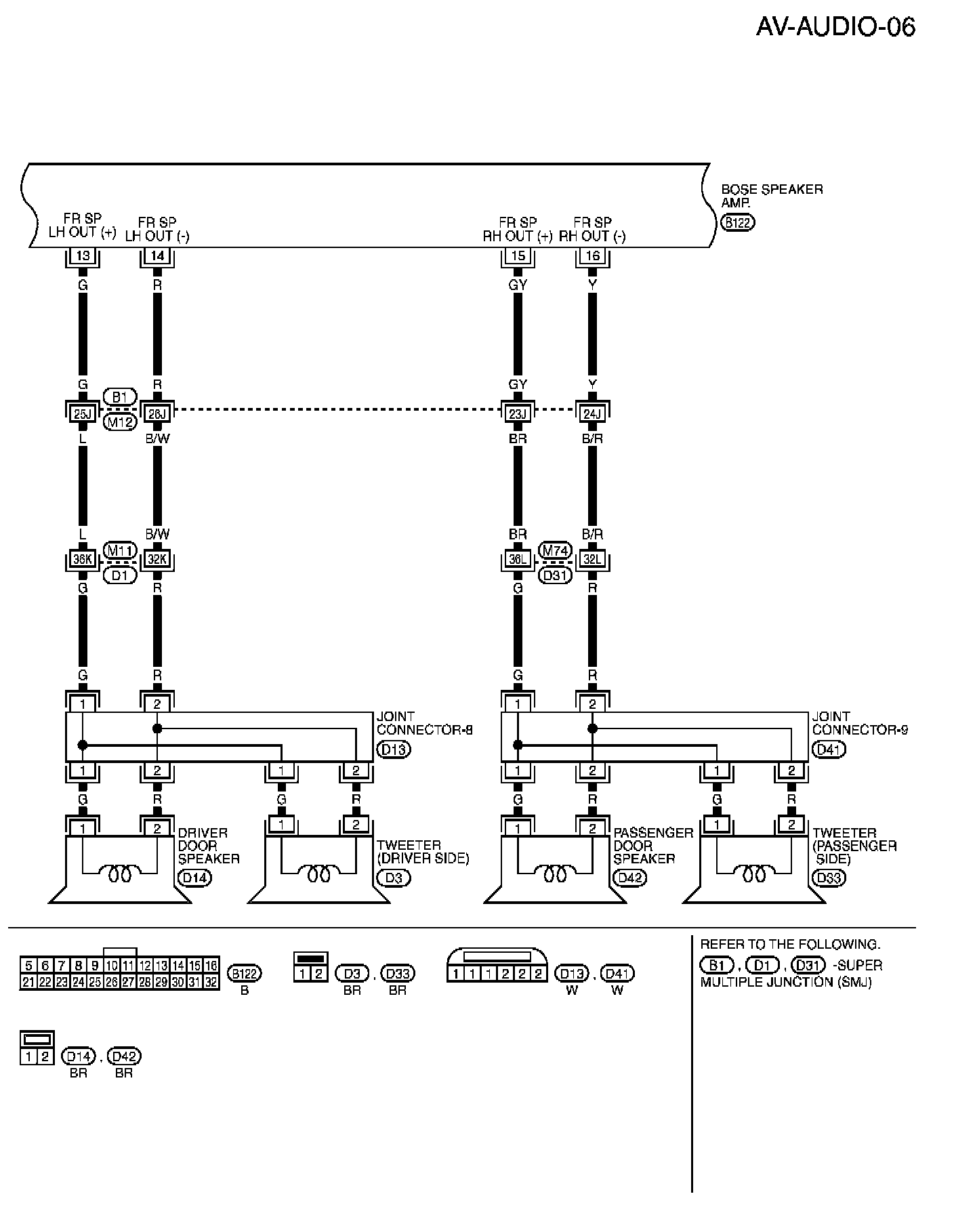

AV-AUDIO-06:

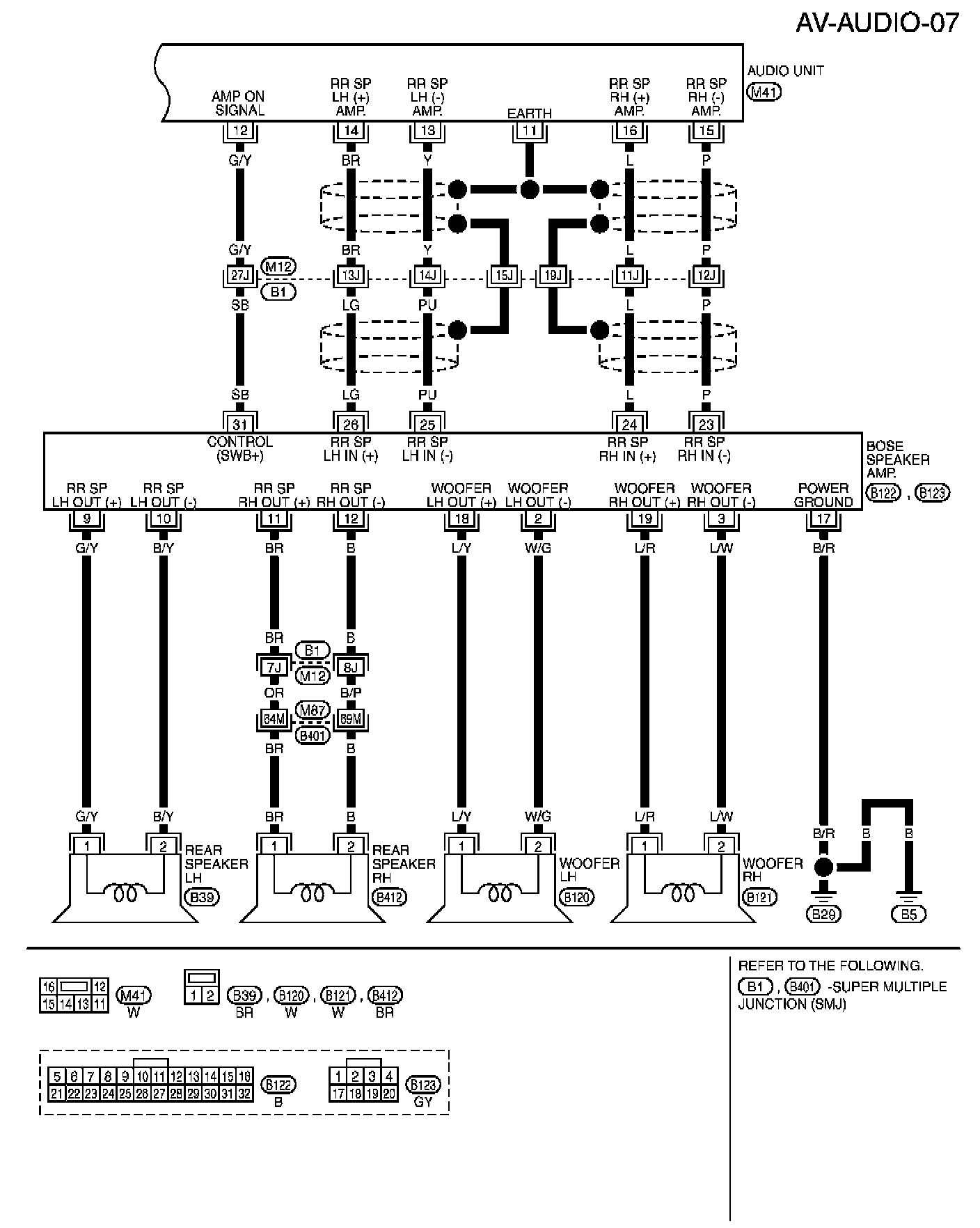

AV-AUDIO-07:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name
