Front Disc Brake (OPB27VA Type)

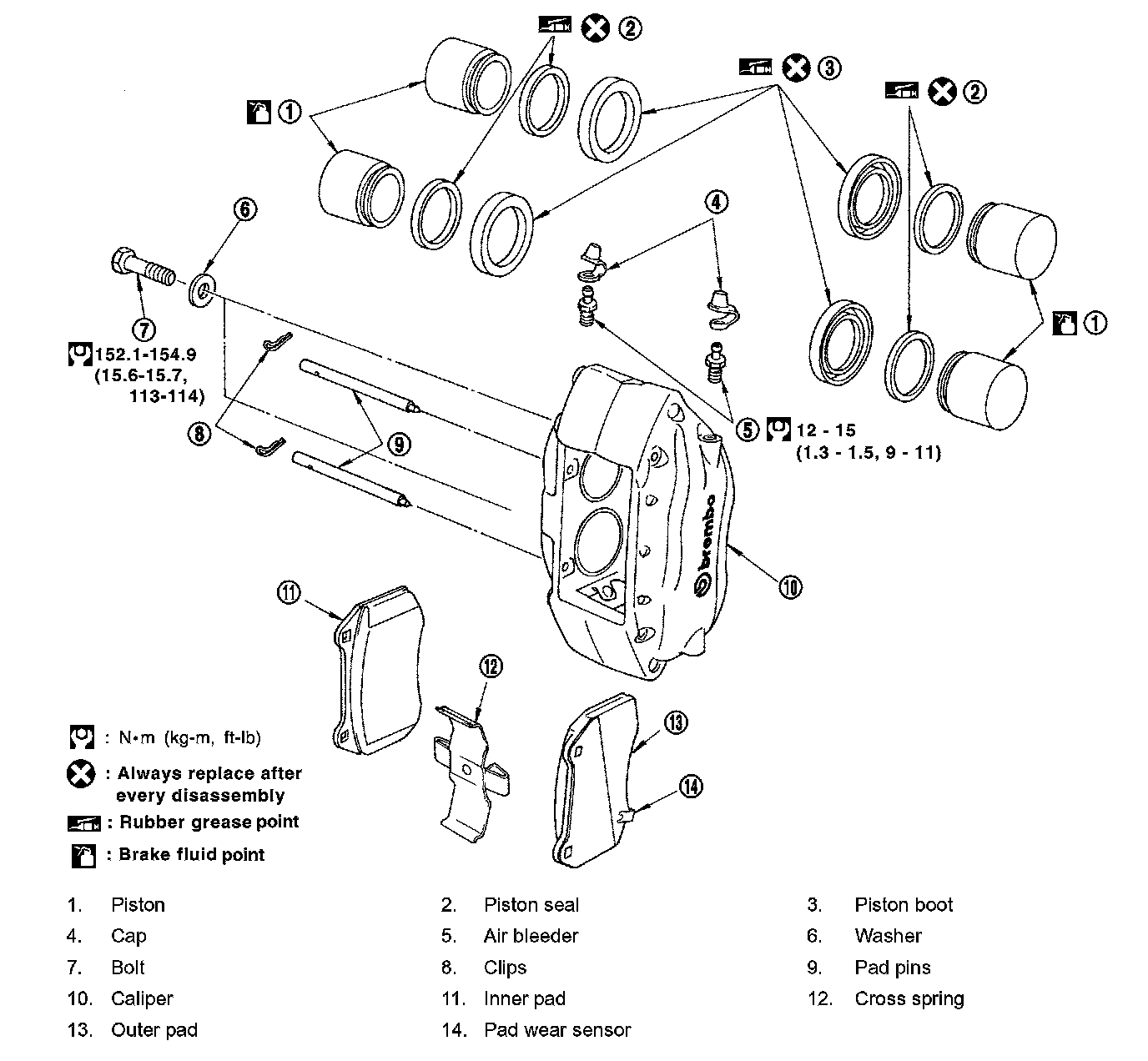

Component





NOTE: Refer to "HOW TO APPLY GREASE TO BRAKE PAD" for how to apply grease to brake pads in Removal and Installation.

CAUTION:
^ Clean dust on caliper and brake pad with a vacuum dust collector. Do not blow with compressed air.
^ While brake pad and cylinder body are separated, piston may suddenly jump out, so do not depress brake pedal.
^ Apart from caliper assembly, disassembly or replacement, there is no need to remove caliper bolts or brake hose or tube.
^ Do not damage piston boot.
^ Keep the rotor clean of brake fluid.
