Rear Disc Brake (AD14VE Type)

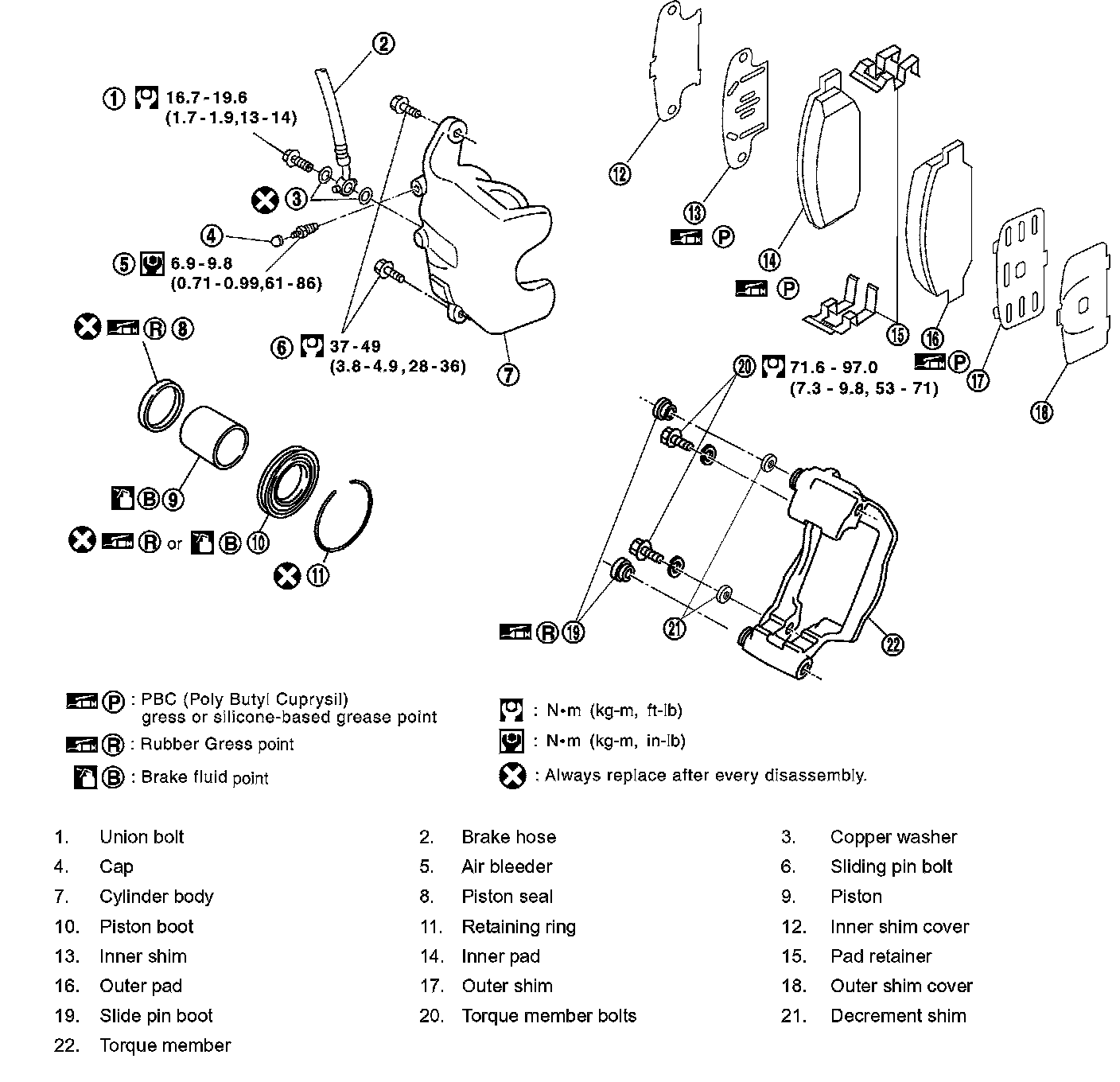

Components





CAUTION:
^ Clean dust on caliper and brake pad with a vacuum dust collector. Do not blow with compressed air.
^ While removing cylinder body, never depress brake pedal because the piston will pop out.
^ It is not necessary to remove bolts on torque member and brake hose except for disassembly or replacement of caliper assembly. In this case, hang cylinder body with a wire so that brake hose is not under tension.
^ Do not damage piston boot.
^ Always replace shims and shim covers as a set when replacing brake pads.
^ Keep the rotor clean of brake fluid.
