Rear Disc Brake (OPB13VB Type)

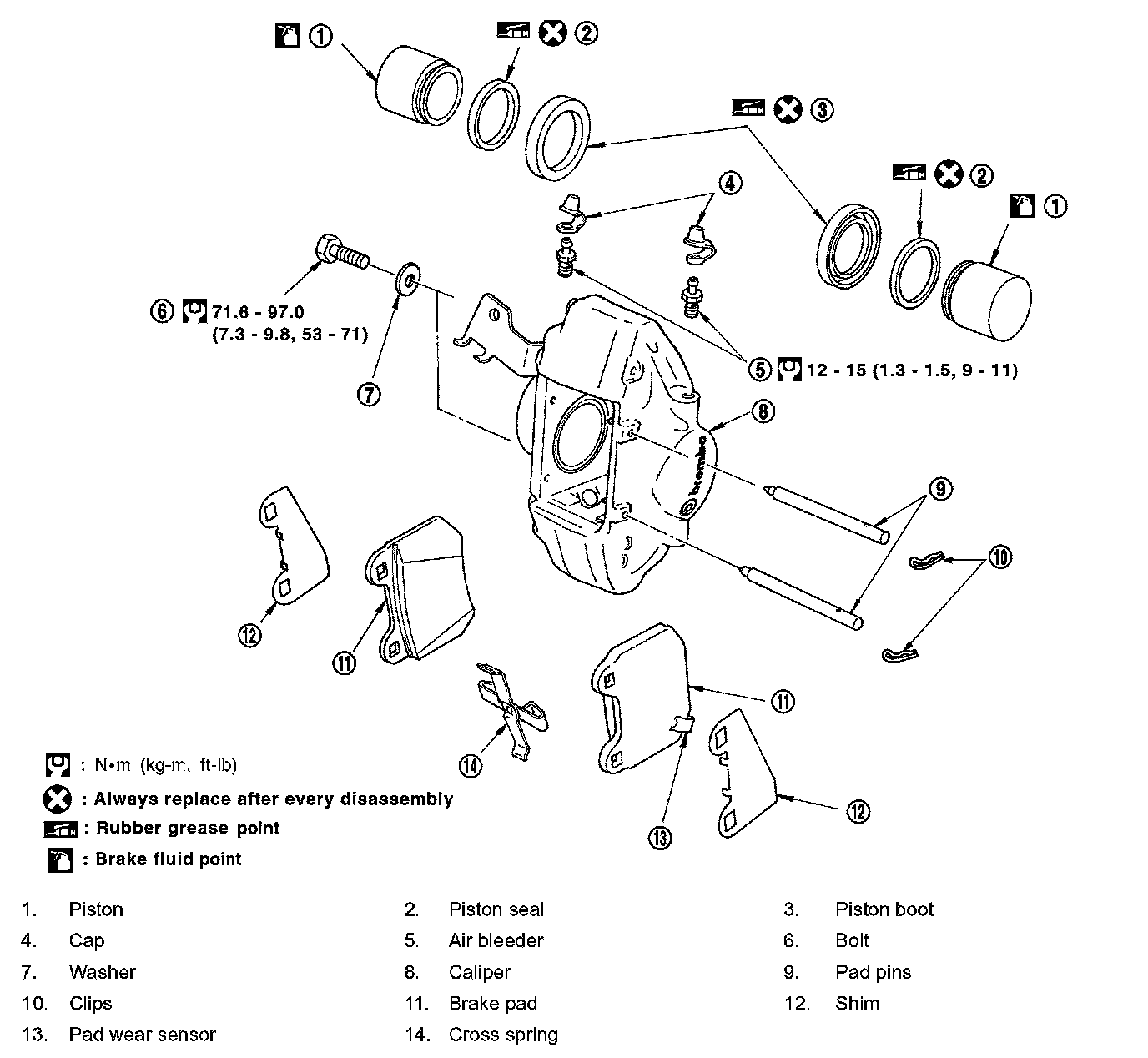

Components





NOTE: Refer to "HOW TO APPLY GREASE TO BRAKE PAD" for how to apply grease to brake pads in Removal and Installation.

CAUTION:
^ Clean dust on caliper and brake pad with a vacuum dust collector. Do not blow with compressed air.
^ While removing cylinder body, never depress brake pedal because the piston will pop out.
^ Apart from caliper assembly, disassembly or replacement, there is no need to remove caliper bolts or brake hose or tube.
^ Do not damage piston boot.
^ Always replace shim as a set when replacing brake pads.
^ Keep rotor clean of brake fluid.
