Disassembly and Assembly

Cluster Lid A:

CLUSTER LID A
1. Remove screws with power tool, and then remove mirror control switch.
2. Remove screws and disconnect lower side of pawls, and then remove combination

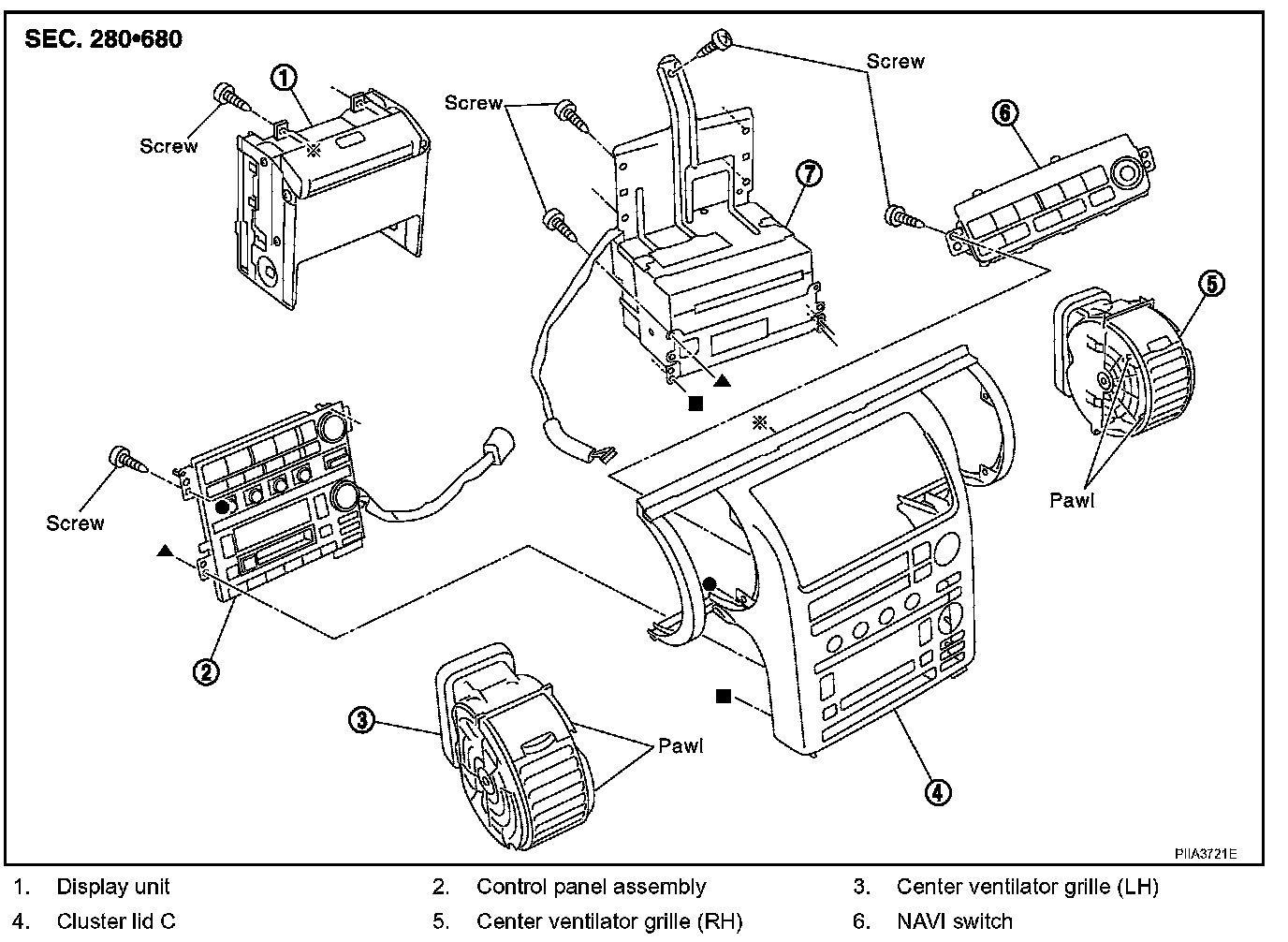

Cluster Lid C:

CLUSTER LID C
1. Disconnect pawl and remove center ventilator grille (RH side only).
2. Remove display unit assembly and audio unit, NAVI switch and control panel assembly.

Center Box Assembly:

CENTER BOX ASSEMBLY
1. Remove screws and pawls, and then remove side ventilator (RH).
2. Remove screws, and then remove NAVI control unit.
3. Remove screws, and then remove pocket (without NAVI).
4. Remove screws, and then remove center box upper and lower lid.

Center Console (A/T):

CENTER CONSOLE (A/T)

CONSOLE FINISHER (A/T)
1. Remove screws of back side (front), and remove ashtray (front portion).
2. Remove screws of back side (lower), and remove cup holder.

CENTER CONSOLE
1. Remove console mask.
2. Remove screws, and then remove console lid.
3. Disconnect metal clips, and then remove rear ventilator from console lid.
4. Remove ashtray.
5. Remove screws, and then remove ashtray bracket.
6. Disconnect metal clips (back side), and then remove console tray.

Center Console (M/T):

CENTER CONSOLE (M/T)
1. Remove ashtray.
2. Remove screws of back side, and then remove ashtray bracket.
3. Remove screws of back side, and then remove console rear pocket.
4. Remove console cover mask/Seat heater switch.
