Removal and Installation

REMOVAL
1. Remove column cover.
2. Remove combination switch.
3. Remove instrument lower cover.

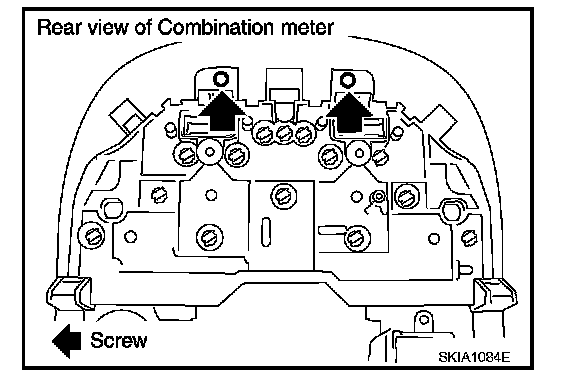

4. Remove the screw (4) and remove cluster lid A and combination meter assembly.
5. Disconnect connectors and remove combination meter.
6. Disassembly cluster lid A and combination meter.




INSTALLATION
Install in the reverse order of removal.
