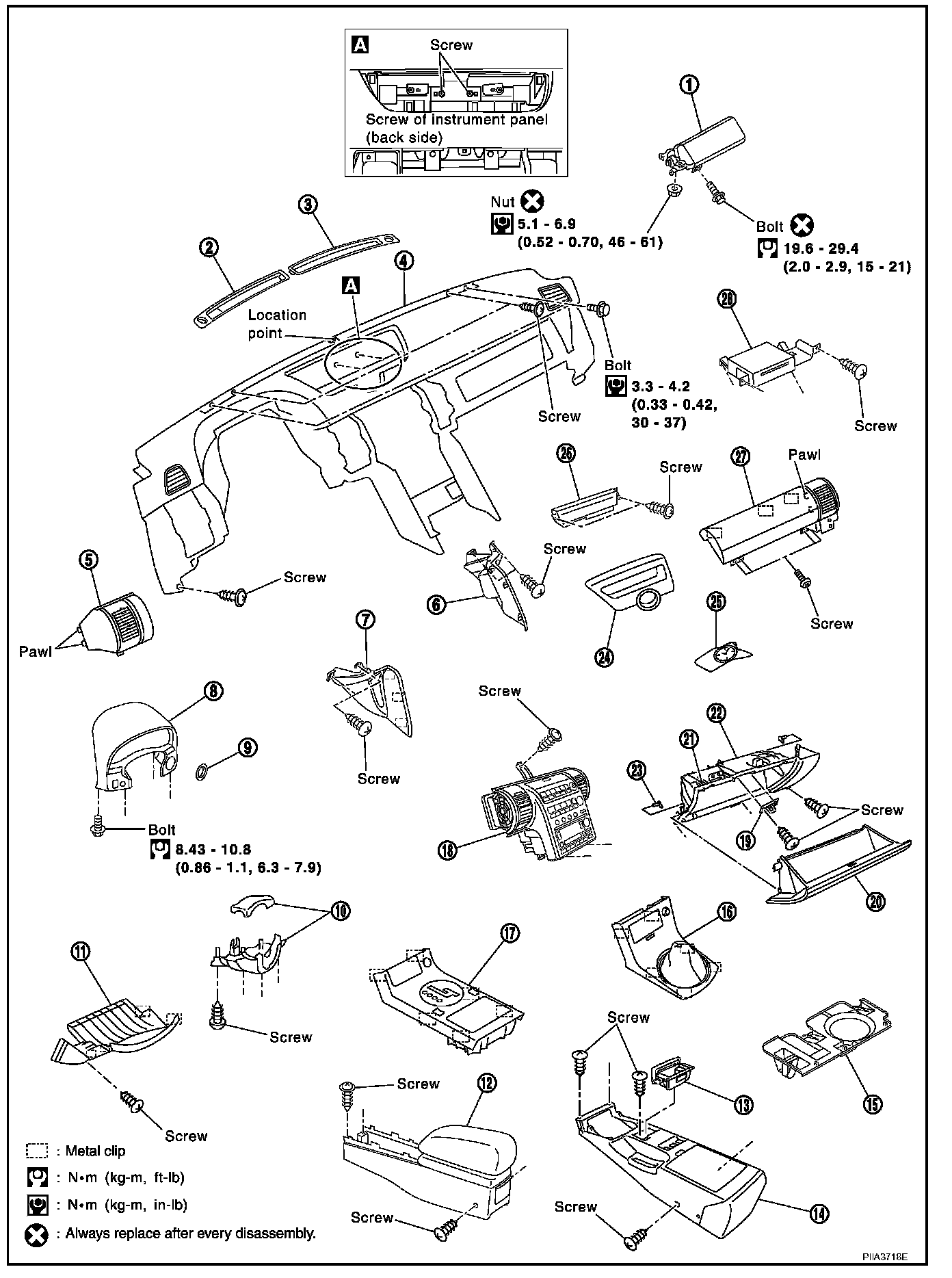

Component Parts Drawing

Component Parts Drawing:

1. Passenger air bag module
2. Front defroster grille (LH)
3. Front defroster grille (RH)
4. Instrument panel and pad
5. Side ventilator grille (LH)
6. Instrument side panel (RH)
7. Instrument side panel (LH)
8. Cluster Lid A
9. Steering lock escutcheon
10. Steering column cover11. Instrument lower driver panel
12. Center console (A/T)
13. Ashtray
14. Center Console (M/T)
15. Instrument lower cover
16. Console boot (M/T)
17. Console finisher (A/T)
18. Cluster lid C
19. Glove box striker
20. Glove box
21. Resin clip
22. Instrument lower passenger panel
23. Glove box pin
24. Cluster lid finisher
25. Clock assembly
26. Display and Amplifier assembly
27. Center box assembly
28. NAVI control unit
