Data Monitor

Operation Procedure
1. Touch INT LAMP on SELECT TEST ITEM screen.
2. Touch DATA MONITOR on SELECT DIAG MODE screen.

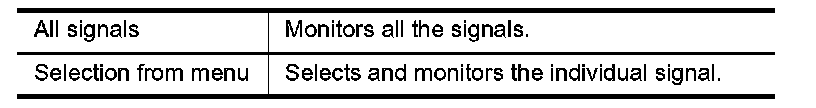

3. Touch either ALL SIGNALS or SELECTION FROM MENU on DATA MONITOR screen.
4. Touch START.
5. When SELECTION FROM MENU is selected, touch items to be monitored. When ALL SIGNALS is selected, all the items will be monitored.
6. Touch RECORD while monitoring, then the status of the monitored item can be recorded. To stop recording, touch STOP.

Display Item List:

Display Item List
