Removal and Installation

REMOVAL
1. Disconnect battery negative cable or remove power fuse.




2. Remove front bumper.

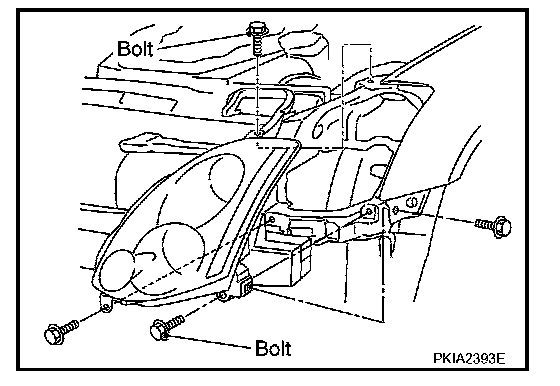

3. Remove headlamp mounting bolts.
4. Pull headlamp toward vehicle front, disconnect connector, and remove headlamp.

CAUTION: When removing headlamps, put a shop cloth or something similar between headlamps and bumper to protect bumper.

INSTALLATION
Install in the reverse order of removal. Be careful of the following:

Headlamp mounting bolt:
Tightening Torque: 4.4 - 6.5 N.m (0.45 - 0.66 kg-m, 39 - 57 in-lb)
