Servicing Headlamps When Damaged/Correction Brackets

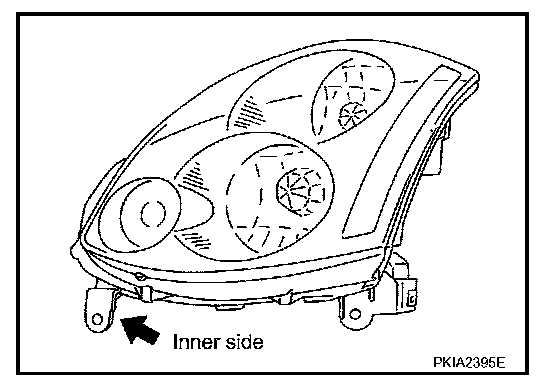

If only installation part as shown in the figure is damaged, and headlamp housing itself is not damaged, repair can be completed easily by installing correction brackets.




REMOVAL AND INSTALLATION
1. Remove headlamps.
2. Cut damaged section of installation part, then shape with sand-paper.

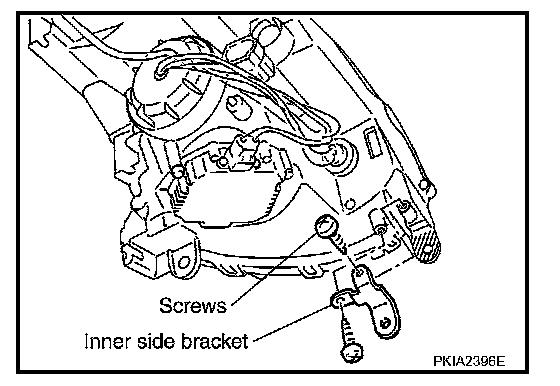

3. Attach each correction bracket to headlamp housing boss with 2 screws.
RH headlamp Inner side 26040 AM800
LH headlamp Inner side 26090 AM800
