Map Light: Service and Repair

Removal and Installation of Map Lamp

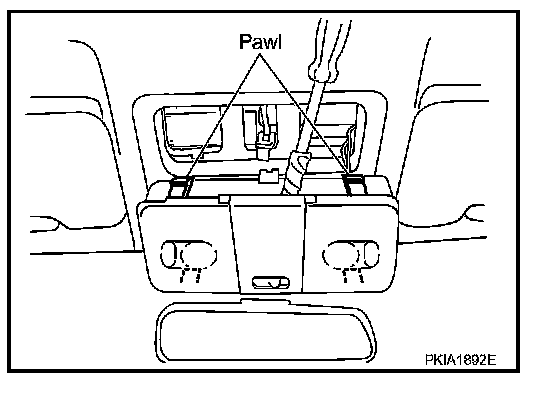

1. Insert a clip driver or a suitable tool and disengage the pawl fittings of the map lamp.
2. Disconnect connector and remove map lamp.
