Component Tests and General Diagnostics

Diagnostic Procedure Step 1 - 2:

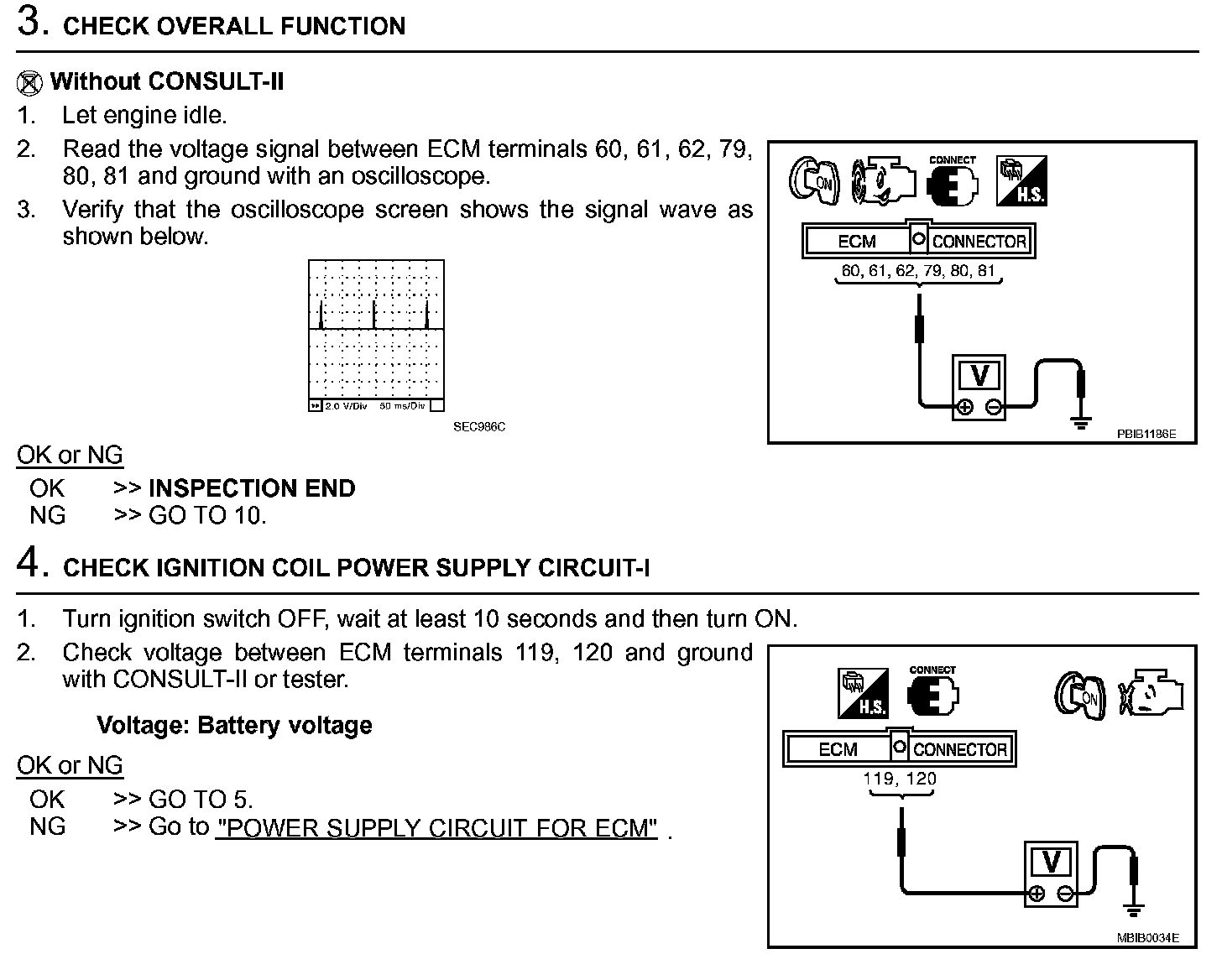

Diagnostic Procedure Step 3 - 4:



Diagnostic Procedure Step 5 - 7:

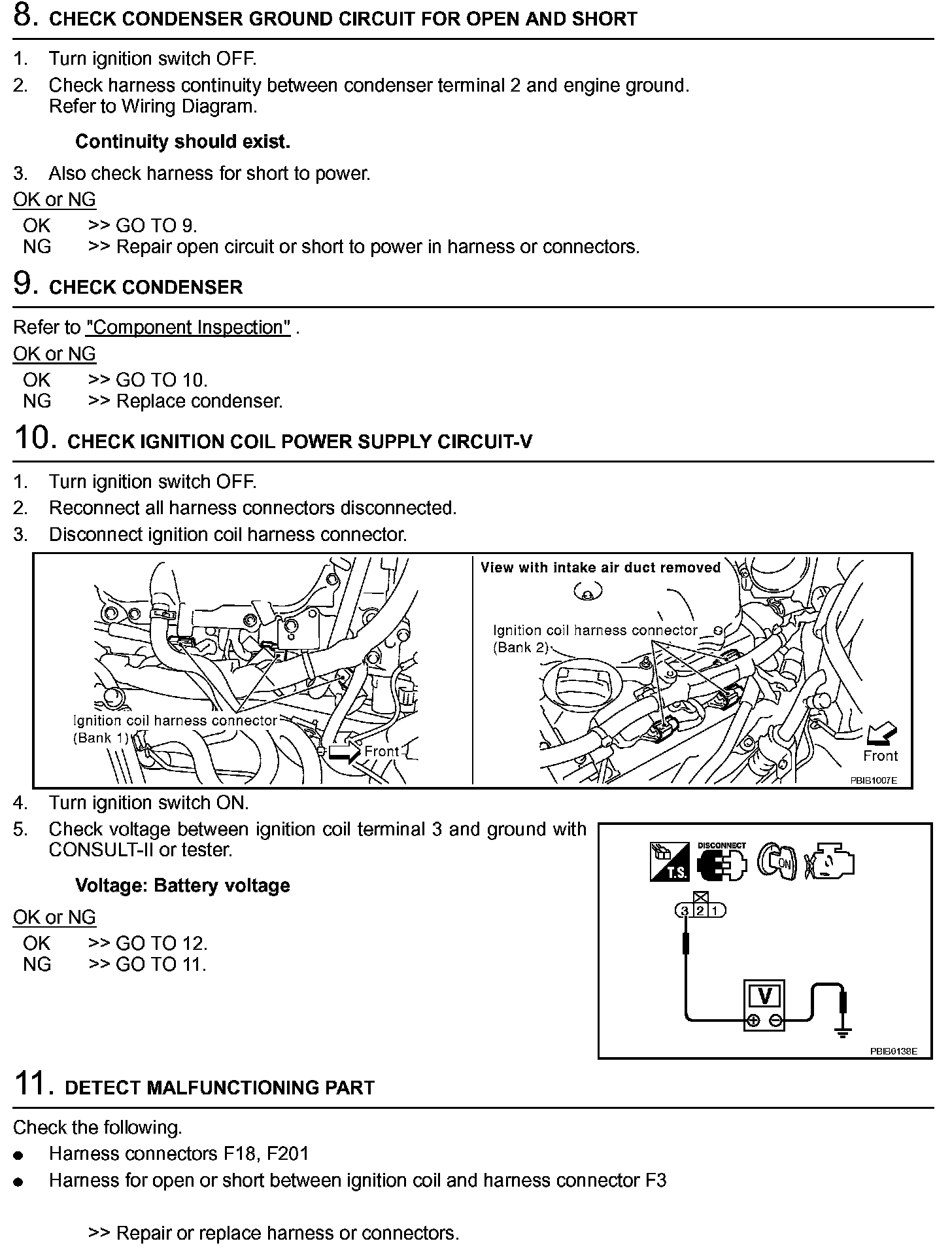

Diagnostic Procedure Step 8 - 11:



Diagnostic Procedure Step 12 - 17:
