Home >> Infiniti >> 2003 >> G35 Coupe V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering >> System Specifications

System Specifications




Steering Wheel




Steering Angle

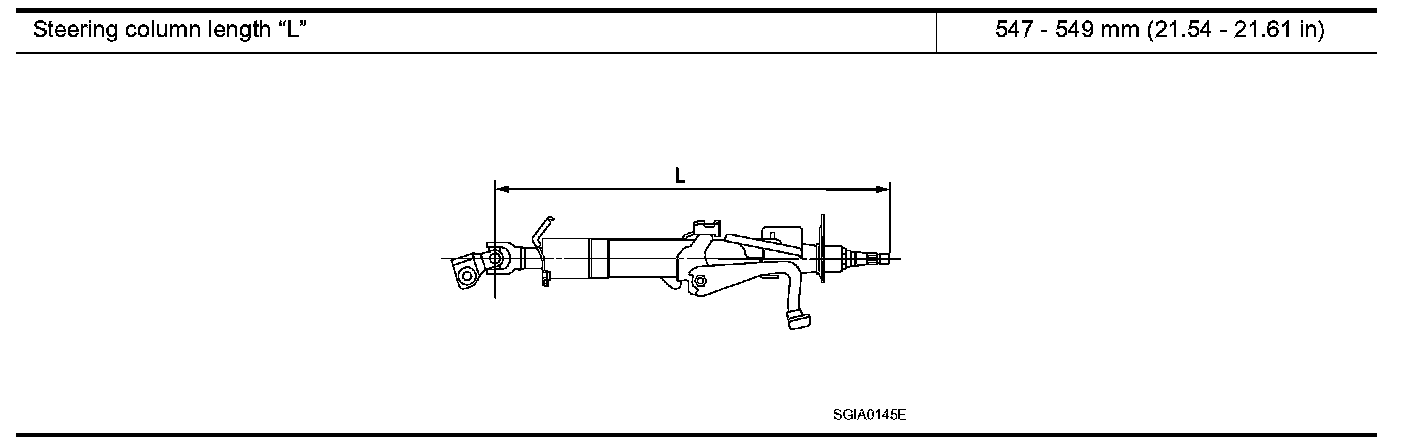

Steering Column


Part 1 Of 2:




Part 2 Of 2:

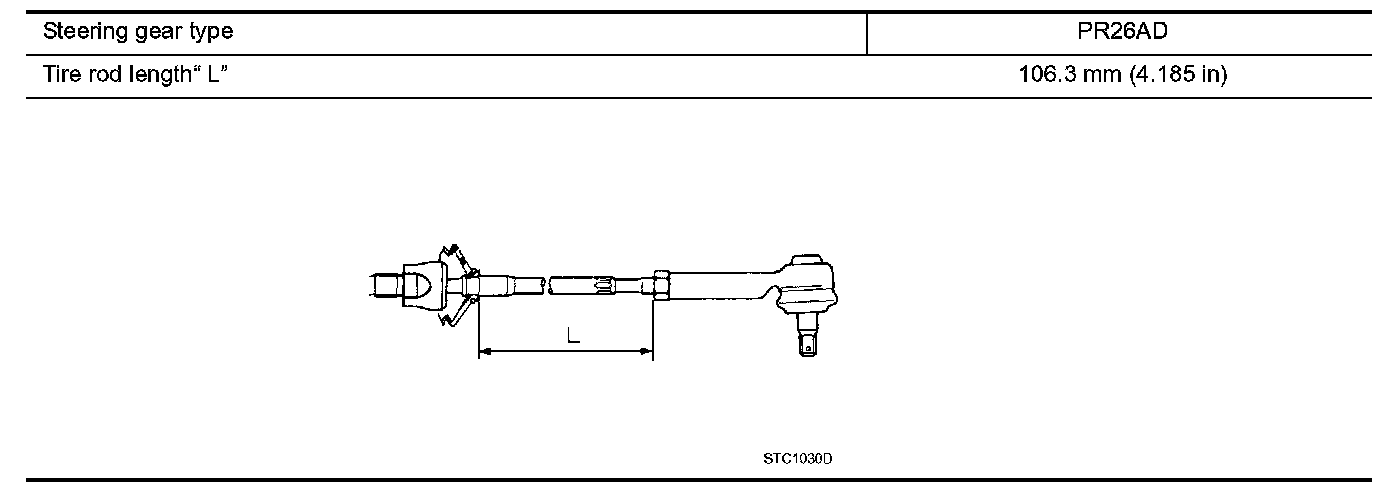

Steering Linkage





Steering Gear
