With Manufacturer's Scan Tool

CONSULT-II Inspection Procedure







1. Turn ignition switch "OFF".

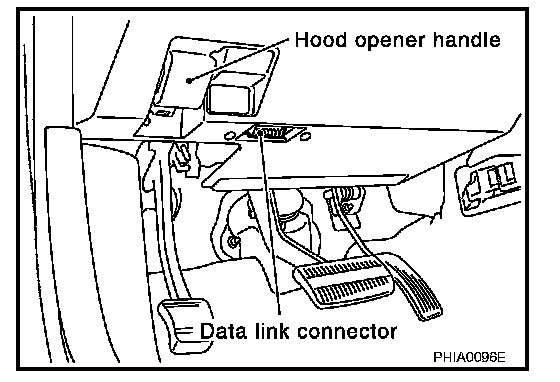

2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.
3. Turn ignition switch "ON".







4. Touch "START (NISSAN BASED VHCL)".

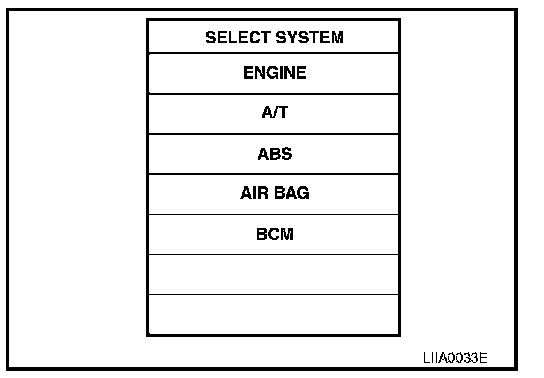

5. Touch "BCM".
If BCM" is not indicated, go to "CONSULT-II CONSULT-II Checking System, Data Link Connector (DLC) Circuit".







6. Touch "RETAINED PWR".







7. Select diagnosis mode. "DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.
