Removal and Installation For Audio Unit

1. Perform damper lock operation. Refer to "Locking CD auto-changer mechanism".
2. Remove cluster lid C. Refer to INSTRUMENT PANEL.
3. Unlock FPC (Flexible Print Circuit) connector lock on A/C and audio controller side.




4. Pull off flexible printed circuit from connector.

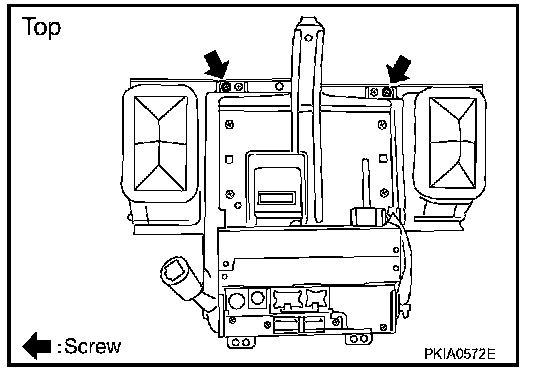

5. Remove screws (top: 2).




6. Remove screws (bottom: 4). Remove audio unit and display unit assembly (with navigation system) from cluster lid C.




7. Separate audio unit from display unit assembly (with navigation system).

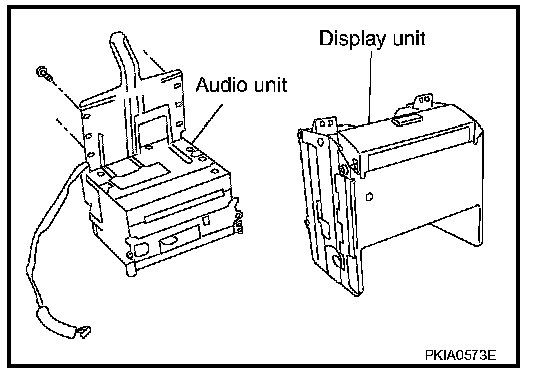

8. Remove 8 screws, and then bracket.


CAUTION:
- When carrying audio unit body, do not touch internal mechanism access from cassette tape slot.
- Be careful not to allow foreign material to enter from cassette tape slot.
